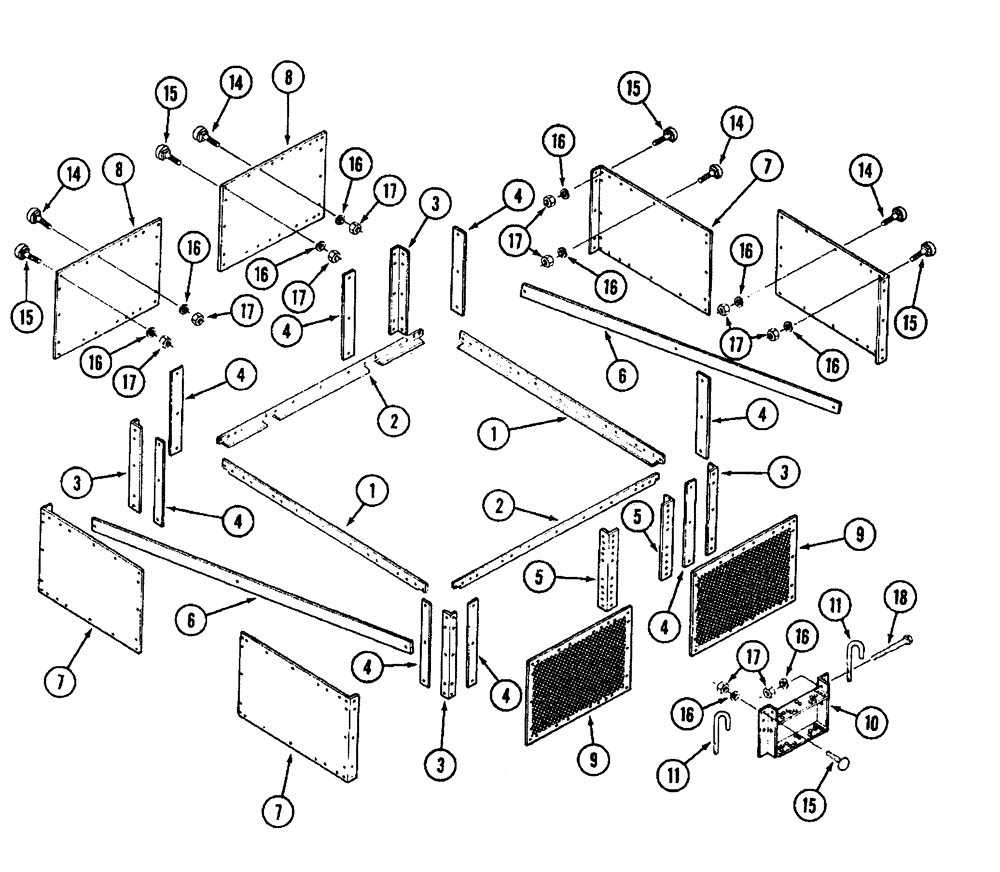

Запчасти Case IH 1844 (9C-48) - BASKET EXTENSIONS, 1844 COTTON PICKER LONG (16) - BASKET

1

1260247C1

SUPPORT

BRACKET - extension side

2шт.

2

1260294C2

ANGLE BAR

BRACKET - extension end

2шт.

3

1270045C1

ANGLE BAR

BRACKET - extension corner support

4шт.

4

1288829C1

LARGE PLATE

PLATE - extension spacer

8шт.

5

1278601C1

ANGLE

BRACKET - upper cover

4шт.

6

1979669C1

STRAP

- backet extension

2шт.

7

1260245C1

COVER

EXTENSION - panel side

4шт.

8

1260230C1

COVER

- basket extension end

4шт.

9

87258C1

COVER

- basket extension end, front

2шт.

10

1278731C1

STEP

- basket

1шт.

11

1278736C1

COVER

HANDLE - basket

2шт.

14

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

38шт.

15

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

46шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

88шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

88шт.

18

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.
