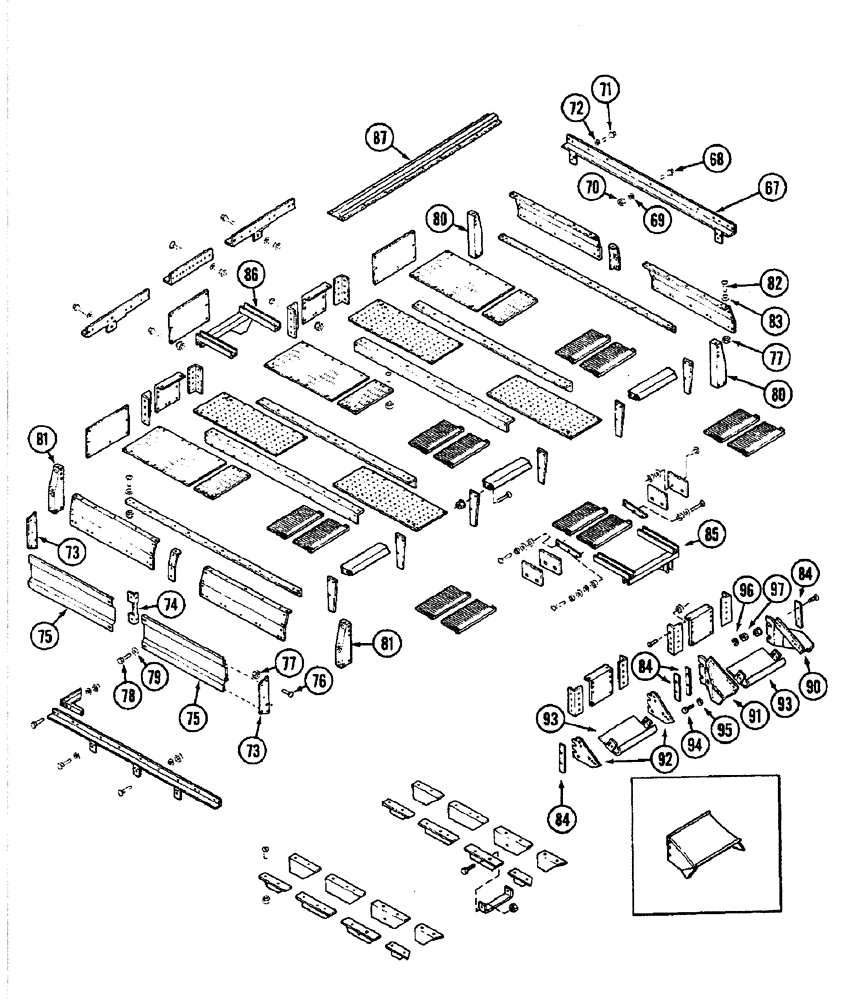

Запчасти Case IH 1844 (9C-16) - BASKET TOP, 1844 COTTON PICKER (16) - BASKET

67

1288785C2

SUPPORT

BRACKET - side, left

1шт.

68

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

69

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

70

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

71

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

72

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

73

1278767C1

LARGE PLATE

END - channel

2шт.

74

1278768C1

SUPPORT

- center

1шт.

75

1278766C2

CONDUIT

CHANNEL - side

2шт.

76

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

77

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

1шт.

78

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex, 5/16 NC x 3/4 inch

1шт.

79

106969R1

WASHER

- flat, 11/32 x 1-1/4 x 3/64 inch

1шт.

80

1260278C1

LARGE PLATE

PLATE - end, left

2шт.

81

1260279C1

LARGE PLATE

PLATE - end, right

2шт.

82

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted, 3/8 NC x 3/4 inch

1шт.

83

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 3/32 x 13/16 x 3/64 inch

1шт.

84

1270282C1

LARGE PLATE

BAR - spacer

12шт.

85

1278012C4

CHANNEL

- cylinder mount, front

1шт.

86

1278013C4

CHANNEL

- mount, rear

1шт.

87

87530C1

SUPPORT

- top

1шт.

90

1345222C1

SUPPORT ASSY.

SUPPORT - grate, left notch, with flap

2шт.

91

1982282C1

SUPPORT

- grate, right

2шт.

92

1345191C1

SUPPORT

- grate hood

2шт.

93

1982265C1

SHEET

PLATE - grate filler

3шт.

94

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

6шт.

95

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

6шт.

96

392-11025

LOCK WASHER,1/4"

1/4"

6шт.

97

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

6шт.
