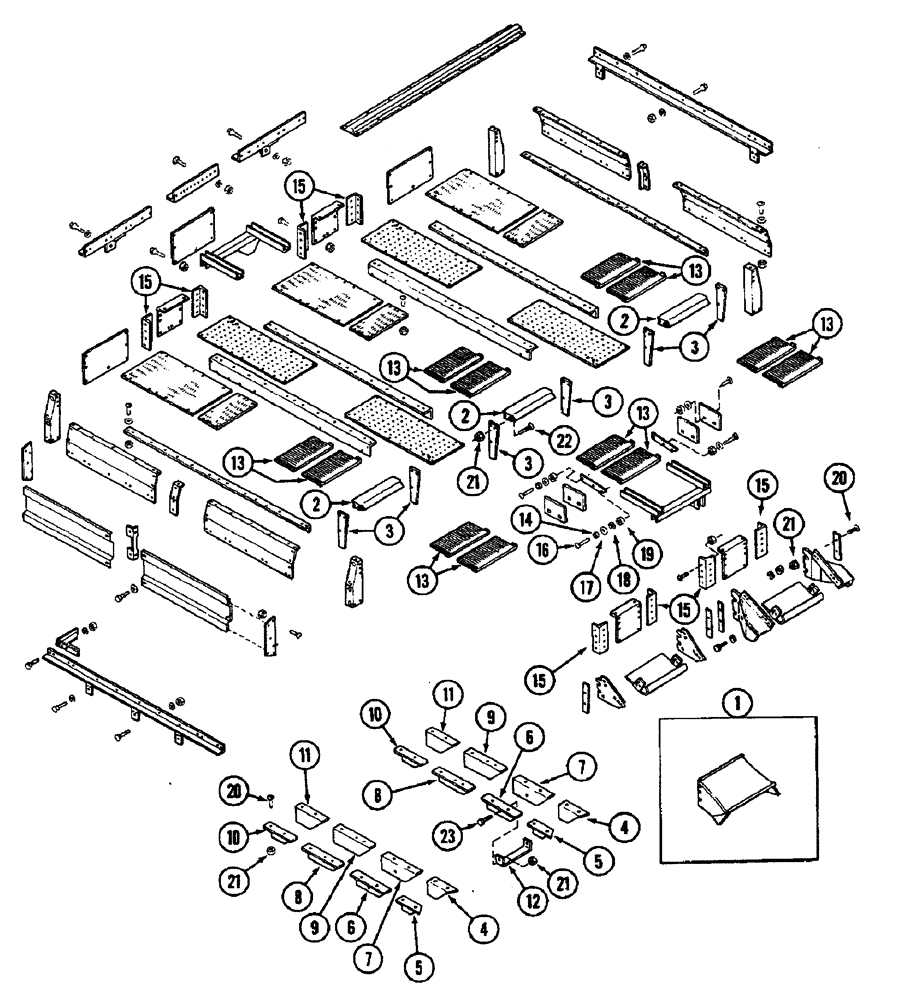

Запчасти Case IH 1844 (9C-10) - BASKET TOP, 1844 COTTON PICKER (16) - BASKET

1

1982265C1

SHEET

COVER - chute (See note) (replaces 87065C1)

3шт.

2

87497C1

COVER

- grate

3шт.

3

87049C1

LARGE PLATE

PLATE - grate, side

6шт.

4

87050C1

SUPPORT

BRACKET - front, left

2шт.

5

87051C1

SUPPORT

BRACKET - front, right

2шт.

6

87053C1

ANGLE

BRACKET - middle, right

2шт.

7

87052C1

SUPPORT

BRACKET - middle, left

2шт.

8

87055C2

SUPPORT

BRACKET - middle rear, right

2шт.

9

87054C2

SUPPORT

BRACKET - middle rear, left

2шт.

10

87057C1

SUPPORT

BRACKET - rear, right

2шт.

11

87056C1

SUPPORT

BRACKET - rear, left

2шт.

12

87573C1

SUPPORT

BRACKET - brace

2шт.

13

221224C1

DEFLECTOR

- basket

13шт.

14

612233R1

SPACER,5/8" Tube x 1 1/8"

- tube, 5/8 x 1-3/16 inch

2шт.

15

223004C1

ANGLE

BRACKET - support (12 used without basket extensions) (8 used with basket extension)

1шт.

16

598812R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT - round head square neck, 3/8 NC x 2 inch

2шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

2шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

20

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted, 3/8 NC x 3/4 inch

1шт.

21

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

1шт.

22

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT - round head square neck, 3/8 NC x 2 inch

12шт.

23

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex, 3/8 NC x 3/4 inch

1шт.
