(9B-42) - BASKET COMPACTOR, 1844 COTTON PICKER

Запчасти Case IH 1844 (9B-42) - BASKET COMPACTOR, 1844 COTTON PICKER (15) - HANDLING SYSTEM

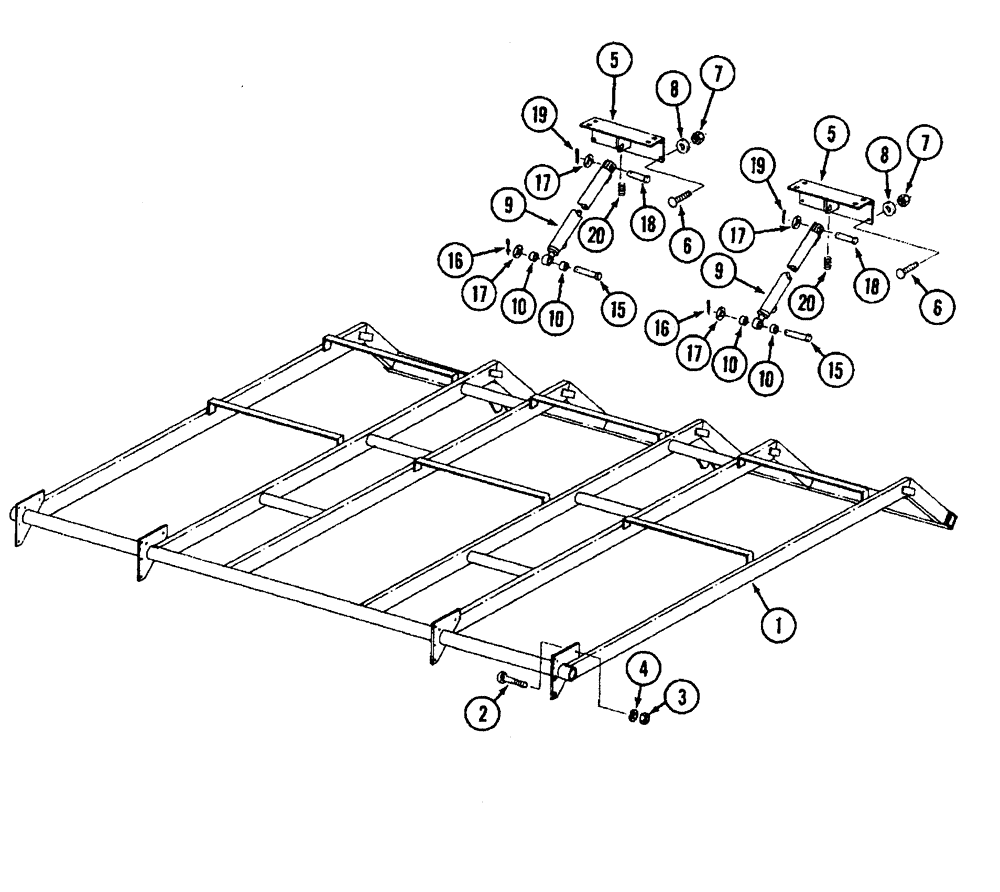

Схема запчастей Case IH 1844 - (9B-42) - BASKET COMPACTOR, 1844 COTTON PICKER (15) - HANDLING SYSTEM
15
18
8
4
3
20
10
19
6
10
6
8
20
17
19
17
2
17
5
16
10
1
7
16
18
17
9
7
9
5
15
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1270364C4

FRAME

- compactor

1шт.

2

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

20шт.

3

425-106

NUT,3/8"-16, Cl 5

20шт.

4

492-11038

LOCK WASHER,3/8"

20шт.

5

1270373C4

SUPPORT

BRACKET - cylinder mounting

2шт.

6

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

16шт.

7

1306680C1

FLANGE NUT

NUT - hex flange lock, 3/8 inch NC

16шт.

8

390305C1

WASHER

- flat 13/32 x 13/16 x 1/16 inch

16шт.

9

REF

INSTRUCTION

CYLINDER - compactor (See Page 8-67)

2шт.

10

575098R1

SPACER,16.7mm ID x 22.23mm OD x 15.9mm L

- tube, 7/8 x 5/8 inch

4шт.

15

1338702C1

PIN

- headed (Replaces 305733R1)

2шт.

16

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

17

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/64 inch

4шт.

18

1338701C1

PIN

5/8 x 2-1/4 inch

2шт.

18

1338702C1

PIN

- 5/8 x 3-1/2 inch

2шт.

19

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

20

125735

SET SCREW,Hex Skt, 1/4"-20 x 3/8"

2шт.
