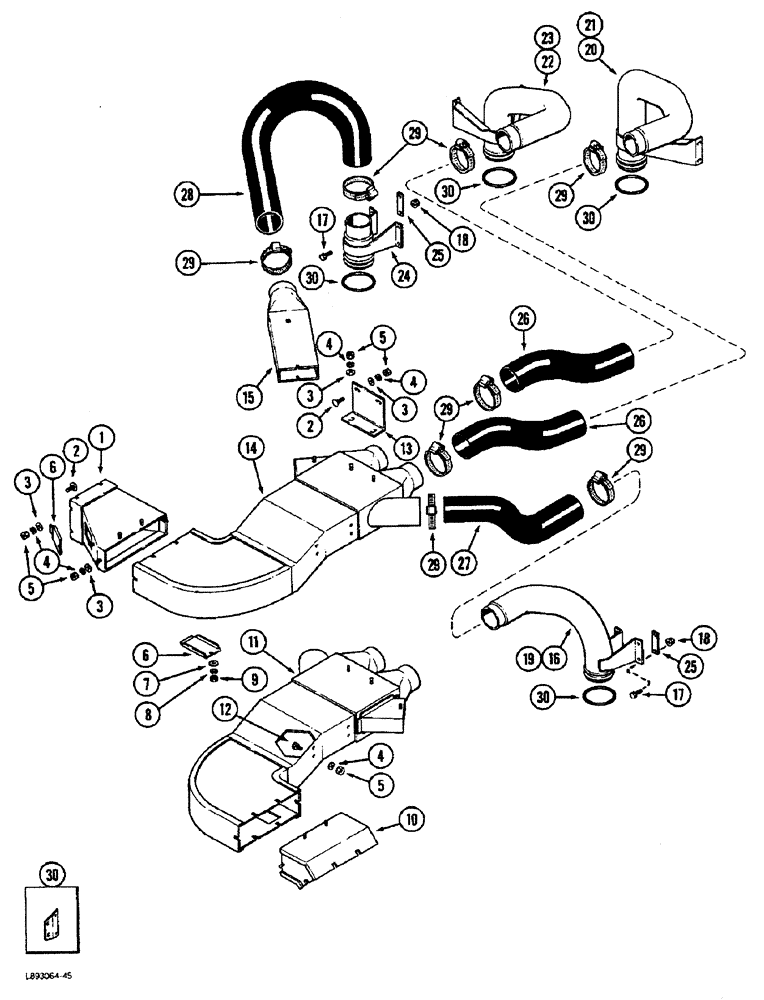

Запчасти Case IH 1844 (9B-36) - AIR DUCTS AND HOSES, 1844 COTTON PICKER (15) - HANDLING SYSTEM

1

1270084C1

DUCT

- transition (Left and right sides)

2шт.

2

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

18шт.

2

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

3

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

48шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

48шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

48шт.

6

1270220C1

COVER

- duct access

4шт.

7

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

9

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

10

1270166C1

DUCT

- elbow

1шт.

11

1270140C2

PIPE, EXHAUST SYSTEM

DUCT - air supply, left

1шт.

12

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

4шт.

13

1270229C2

SUPPORT

BRACKET - duct, support

2шт.

14

1270090C2

PIPE, EXHAUST SYSTEM

DUCT - right

1шт.

15

1278744C1

PIPE, EXHAUST SYSTEM

DUCT - inner drum rear

2шт.

16

1339278C3

DUCT

- no. 1 drum rear

1шт.

17

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

24шт.

17

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- special lock

8шт.

18

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

28шт.

19

1339279C3

DUCT

- no. 4 drum rear

1шт.

20

1338652C2

DUCT

- no. 1 drum front

1шт.

21

1338653C2

DUCT

- no. 4 drum front

1шт.

22

1338656C2

DUCT

- no. 2 drum front

1шт.

23

1338657C2

DUCT

- no. 3 drum front

1шт.

24

1339277C2

DUCT

- no. 2 and 3 drum rear

2шт.

25

1288504C1

SPACER

PLATE - spacer

6шт.

26

NSS

NOT SOLD SEPARAT

HOSE - 5 inch diameter air, 31 inch (Order 1349877C1, Serial Range: cut-length)

4шт.

27

NSS

NOT SOLD SEPARAT

HOSE - 5 inch diameter air, 27 inch (Order 1349877C1, Serial Range: cut-length)

2шт.

28

NSS

NOT SOLD SEPARAT

HOSE - 5 inch diameter air, 35 inch (Order 1349877C1, Serial Range: cut-length)

2шт.

1349877C1

HOSE,25.00"

- air, bulk length

1шт.

29

182088H1

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

CLAMP - hose, no. 80 type F

16шт.

30

238-6428

O-RING,0.275" Thk x 4.85" ID, -428, Cl 6, 90 Duro

- 4-7/8 ID x 1/4 inch wide

8шт.

31

1338691C1

ANGLE

SUPPORT - duct

4шт.
