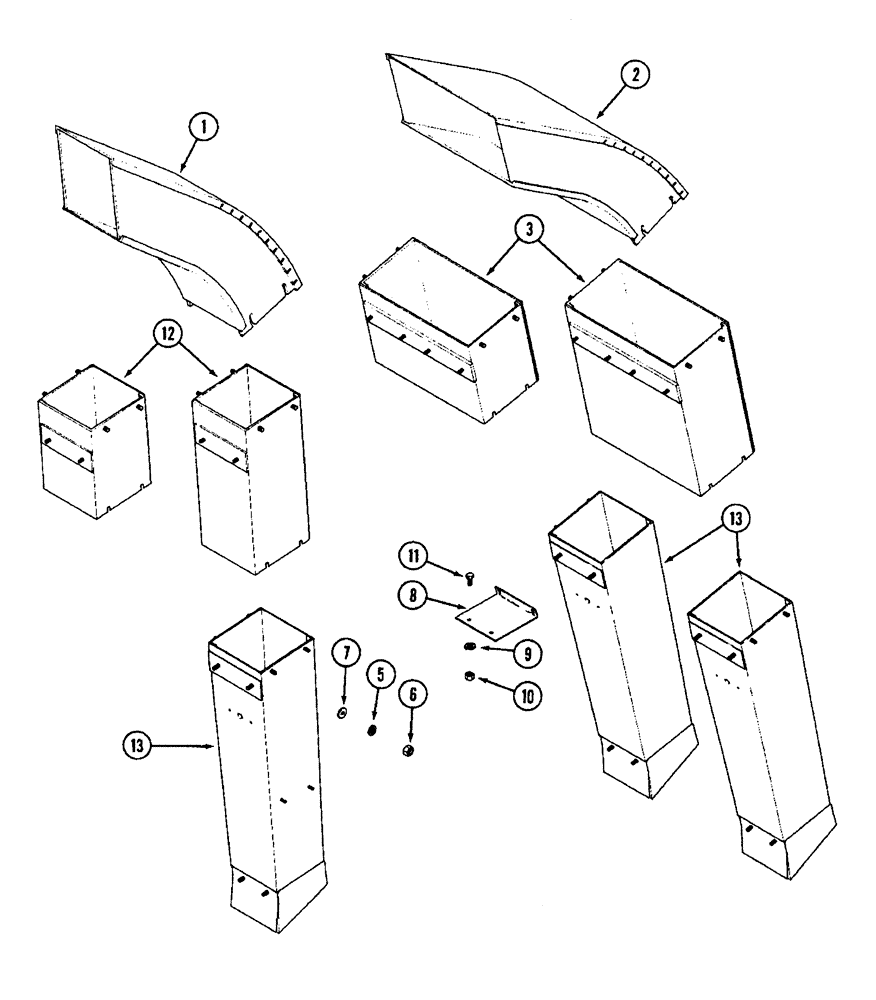

Запчасти Case IH 1844 (9B-32) - CONVEYOR CHUTE LONG EXTENSIONS, 1844 COTTON PICKER P.I.N. JJC0002560 AND AFTER (15) - HANDLING SYSTEM

1

REF

INSTRUCTION

HOOD - double chute (See Page 9B-27)

2шт.

2

REF

INSTRUCTION

HOOD - single chute (See Page 9B-27)

4шт.

3

1982206C1

TUBE

CHUTE - long double, 23-9/64 inch

2шт.

5

492-11038

LOCK WASHER,3/8"

24шт.

6

425-106

NUT,3/8"-16, Cl 5

24шт.

7

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

24шт.

8

1278649C1

ANGLE BAR

BRACKET - front chute support (See Note)

4шт.

9

492-11038

LOCK WASHER,3/8"

8шт.

10

425-106

NUT,3/8"-16, Cl 5

8шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

12

1982203C1

TUBE

CHUTE - long single, 23-9/64 inch

4шт.

13

REF

INSTRUCTION

CHUTE - main (See Page 9B-27)

8шт.

1

REF

INSTRUCTION

HOOD - double chute (See Page 9B-27), conveyor, short extensions, 1844 cotton picker

2шт.

2

REF

INSTRUCTION

HOOD - single chute (See Page 9B-270), conveyor, short extensions, 1844 cotton picker

4шт.

3

1982231C1

TUBE

CHUTE - short double, 14-13/64 inch, conveyor, extensions, 1844 cotton picker

2шт.

5

492-11038

LOCK WASHER,3/8"

conveyor chute, short extensions, 1844 cotton picker 3/8"

24шт.

6

425-106

NUT,3/8"-16, Cl 5

Conveyor chute, short extensions, 1844 cotton picker 3/8"-16, G5

24шт.

7

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16"), Conveyor chute, short extensions, 1844 cotton picker 7/16", SAE

24шт.

12

1982218C1

TUBE

CHUTE - short single, 14-13/64 inch, conveyor extensions, 1844 cotton picker

4шт.

13

REF

INSTRUCTION

CHUTE - main (See page 9B-27), conveyor, short extensions, 1844 cotton picker

8шт.
