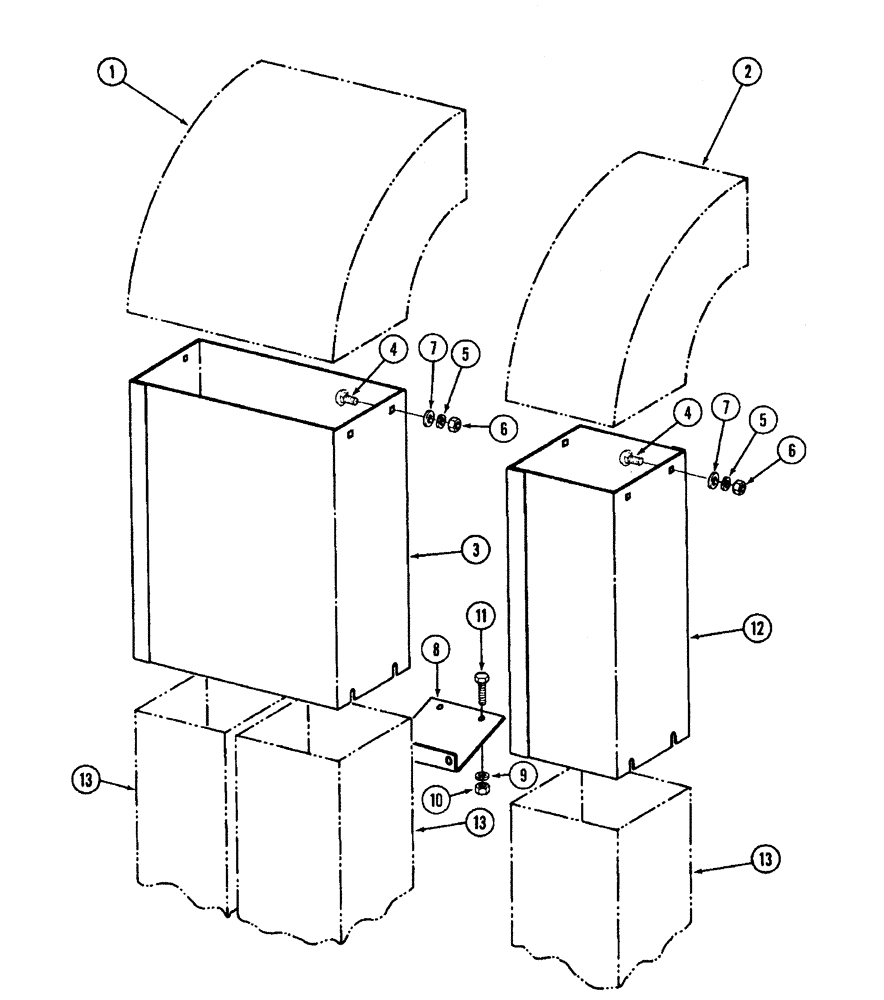

Запчасти Case IH 1844 (9B-30) - CONVEYOR CHUTE LONG EXTENSIONS, 1844 COTTON PICKER PRIOR TO P.I.N. JJC0002560 (15) - HANDLING SYSTEM

1

REF

INSTRUCTION

HOOD - double chute (See Page 9B-27)

2шт.

2

REF

INSTRUCTION

HOOD - single chute (See Page 9B-27)

4шт.

3

1278608C1

CHUTE ASSY.

CHUTE - long double, 23-13/32 inch

2шт.

4

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

24шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

24шт.

6

120376

NUT,5/16"-18, G5

24шт.

7

496-21047

WASHER

- flat, 15/32 x 59/64 x 3/64 inch

24шт.

8

1278649C1

ANGLE BAR

BRACKET - front chute support (See Note)

4шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (See Note) 3/8"

8шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (See Note) 3/8"-16, G5

8шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(See Note) Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

12

1278604C1

CHUTE ASSY.

CHUTE - long single, 22 inch

4шт.

13

REF

INSTRUCTION

CHUTE - main (See Page 9B-27)

8шт.

1

REF

INSTRUCTION

HOOD - double chute (See Page 9B-27), conveyor, short extensions, 1844 cotton picker

2шт.

2

REF

INSTRUCTION

HOOD - single chute (See Page 9B-27), conveyor, short extensions, 1844 cotton picker

4шт.

3

1278610C1

CHUTE (DOWNWARD)

CHUTE - short double, 14 inch, conveyor extensions, 1844 cotton picker

2шт.

4

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch, conveyor chute, short extensions, 1844 cotton picker

24шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Conveyor chute, short extensions, 1844 cotton picker 5/16"

24шт.

6

120376

NUT,5/16"-18, G5

Conveyor chute, short extensions, 1844 cotton picker 5/16"-18, G5

24шт.

7

496-21047

WASHER

- flat, 15/32 x 59/64 x 3/64 inch, conveyor chute, short extensions, 1844 cotton picker

24шт.

12

1278606C1

CHUTE (DOWNWARD)

CHUTE - short single, 14 inch, conveyor, extensions, 1844 cotton picker

4шт.

13

REF

INSTRUCTION

CHUTE - main (See Page 9B-27), conveyor chute, short extensions, 1844 cotton picker

8шт.
