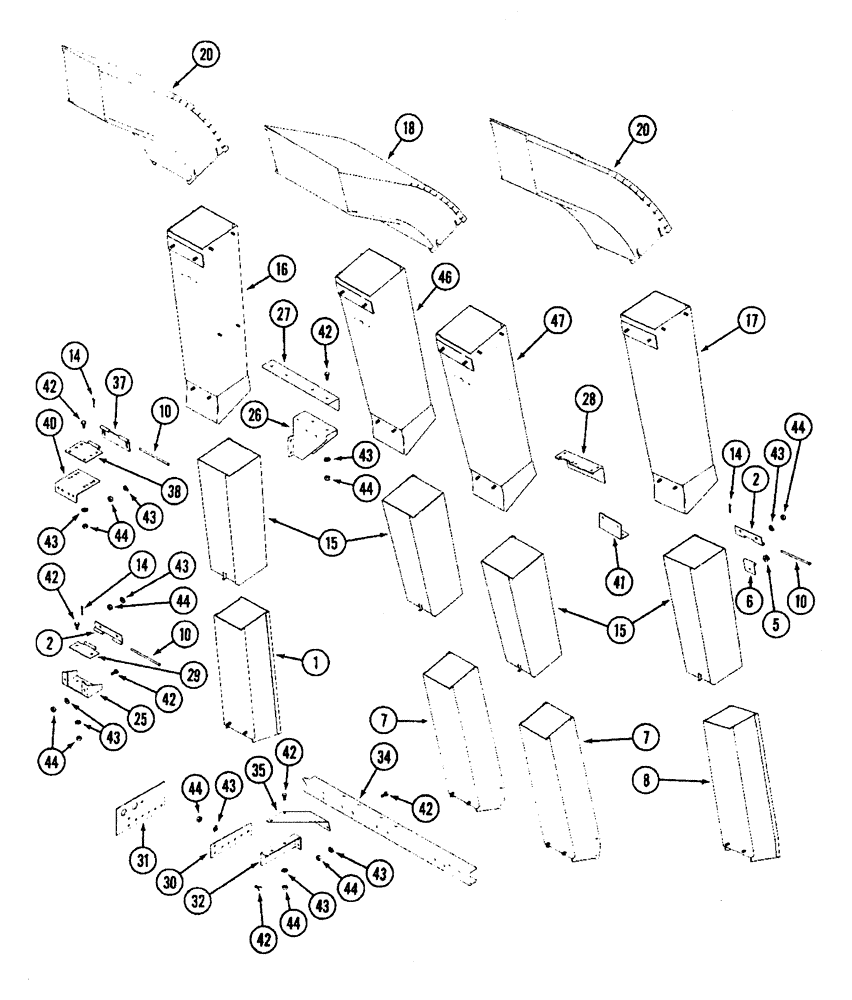

Запчасти Case IH 1844 (9B-28) - CONVEYOR CHUTES, 1844 COTTON PICKER P.I.N. JJC0002560 AND AFTER (15) - HANDLING SYSTEM
№
Артикул
Название
Примечание
Количество
1
1278534C1
TUBE
CHUTE - lower slide, rear
2шт.
2
220402C1
HINGE
- chute
24шт.
5
9411655
LOCK NUT,3/8"-16, GB
NUT - hex lock, 3/8 inch NC
16шт.
6
1270014C1
HINGE
- short
16шт.
7
1278539C1
TUBE
CHUTE - lower slide, front
4шт.
8
1278580C1
TUBE
CHUTE - lower outer, left
1шт.
8
1278581C1
TUBE
CHUTE - lower outer, right (Shown)
1шт.
10
1262749C1
HEADED PIN
PIN - headed, hinge
16шт.
14
32-812
COTTER PIN,1/8" x 3/4"
PIN, SPLIT (COTTER), 1/8" x 3/4"
1шт.
15
1278546C2
CHUTE ASSY.
CHUTE - upper slide
8шт.
16
1988781C1
CHUTE ASSY.
CHUTE - main, inner
2шт.
17
1338913C2
CHUTE (DOWNWARD)
CHUTE - main, outer
2шт.
18
1982210C1
TUBE
HOOD - double chute, right (Shown)
1шт.
18
1982286C1
TUBE
HOOD - double chute, left
1шт.
20
1338916C1
PIPE, EXHAUST SYSTEM
HOOD - single chute
4шт.
25
1278617C1
SUPPORT
- rear, chute hinge
2шт.
26
1278620C2
SUPPORT
BRACKET - front, chute support
2шт.
27
1278621C2
ANGLE BAR
BRACKET - front, chute support
2шт.
28
1278622C2
ANGLE
BRACKET - outer, chute support
2шт.
29
1278616C1
HINGE
- short
8шт.
30
1278640C1
LARGE PLATE
PLATE - chute support
1шт.
31
1338925C1
SUPPORT
BRACKET - basket supply hose
1шт.
32
1278641C1
ANGLE BAR
BRACKET - upper chute support, left
1шт.
32
1278642C1
ANGLE BAR
BRACKET - upper chute support, right (Shown)
1шт.
34
1982215C1
SUPPORT
CHANNEL - chute support
1шт.
35
1278645C1
SUPPORT
BRACE - upper channel support, left
1шт.
35
1278646C1
SUPPORT
BRACE - upper channel support, right (Shown)
1шт.
37
1278647C1
HINGE
- slotted
8шт.
38
1278648C1
HINGE
- slotted
8шт.
40
1338910C1
ANGLE BAR
BRACKET - outer hinge support
4шт.
41
1982216C1
ANGLE BAR
BRACKET - outer chute support
2шт.
42
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
- hex, 3/8 NC x 1 inch
80шт.
43
492-11038
LOCK WASHER,3/8"
160шт.
44
425-106
NUT,3/8"-16, Cl 5
160шт.
46
1982213C1
CHUTE (DOWNWARD)
CHUTE - outer right, inner left
2шт.
47
1982214C1
CHUTE (DOWNWARD)
CHUTE - outer right, inner left
2шт.
Выбрано товаров: 36
