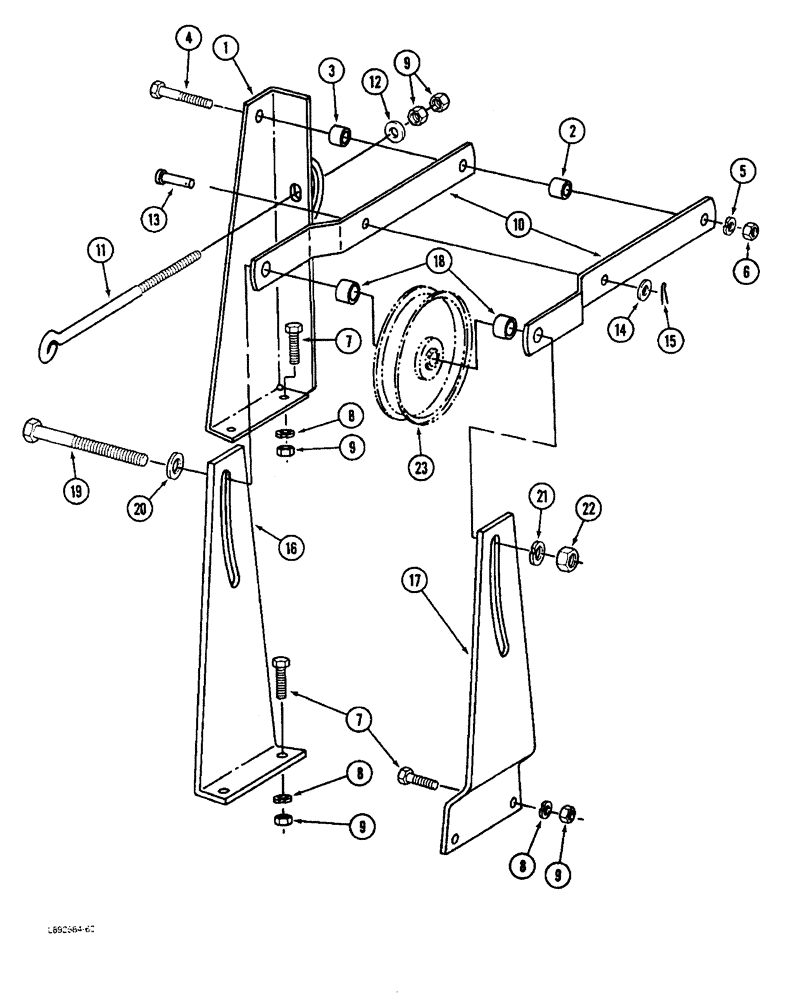

Запчасти Case IH 1844 (9B-16) - FRONT FAN IDLER PULLEY LINKAGE, 1844 COTTON PICKER PRIOR TO P.I.N. JJC0002560 (15) - HANDLING SYSTEM

1

1262948C1

SUPPORT

- idler pivot

1шт.

2

573713R1

SPACER,3/4" Tube x 11/16"

- pivot

1шт.

3

210166C1

SPACER

- pivot

1шт.

4

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

10

1262945C1

SUPPORT

- idler pivot

2шт.

11

101617C1

BOLT

BOLT - adjusting

1шт.

12

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

- flat, 13/32 x 1-1/8 x 9/64 inch

1шт.

13

22900R1

HEADED PIN

PIN - headed, 3/8 x 1-1/4 inch

1шт.

14

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 1/16 inch) 3/8"

1шт.

15

648002

KNIFE

1/8" x 3/4"

1шт.

16

1260076C2

SUPPORT

- idler, front

1шт.

17

1260077C1

SUPPORT

- idler, rear

1шт.

18

650283R2

SPACER

- idler

1шт.

19

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

20

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/64 inch

4шт.

21

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

22

129-107

NUT,5/8"-11, G5

1шт.

23

REF

INSTRUCTION

PULLEY - idler, 5-3/4 inch (See Page 9B-15)

1шт.
