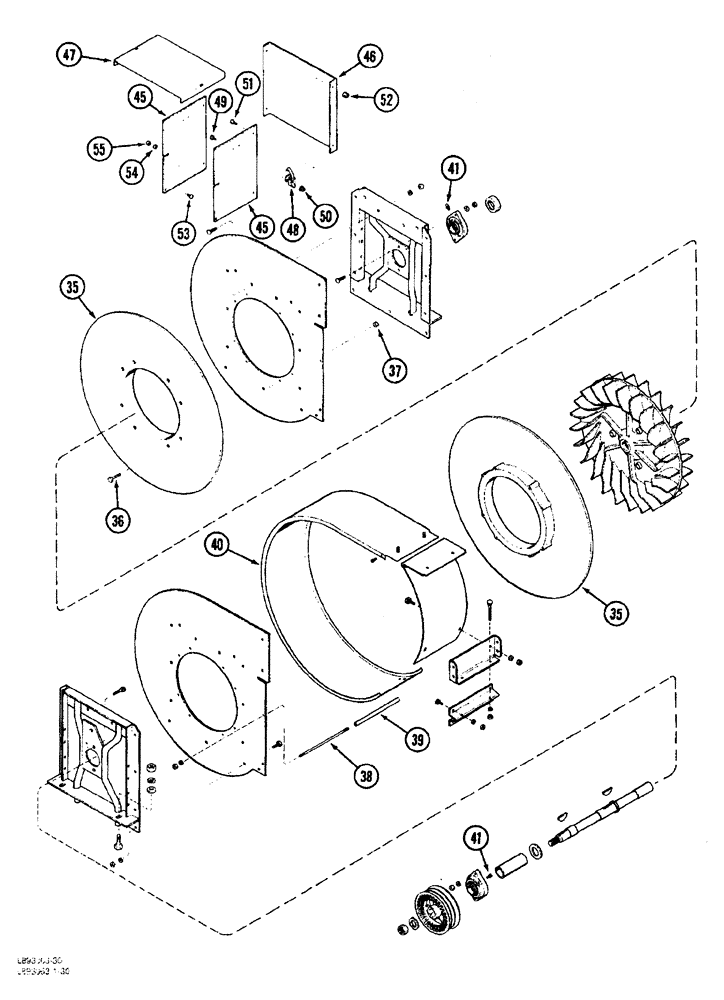

Запчасти Case IH 1844 (9B-10) - FRONT FAN, 1844 COTTON PICKER (15) - HANDLING SYSTEM

REF

INSTRUCTION

FAN ASSEMBLY - front

1шт.

35

207515C1

BAFFLE

- fan

2шт.

36

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

16шт.

37

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

16шт.

38

215709C1

STUD

- fan housing connector

1шт.

39

215020C1

PIPE

- fan housing

1шт.

40

221533C1

COVER

- outer

1шт.

41

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (For machines without centralized chassis grease system) 1/4"-28 NPT x .54" lg

2шт.

45

1338693C2

COVER

- fan, inlet side

2шт.

46

1338694C1

COVER

- fan, inlet front

1шт.

47

1338178C1

COVER ASSY

COVER - fan, inlet top

1шт.

48

1333780C1

LATCH

- fan cover

2шт.

49

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

- machine, hex, No. 10 NC x 1/2 inch

4шт.

50

174097C1

FLANGE NUT,Flg, USR, #10-24

- hex flange lock, No. 10-24

4шт.

51

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

SCREW - slotted truss, 1/4 NC x 1/2 inch

4шт.

52

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

4шт.

53

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

4шт.

54

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

55

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.
