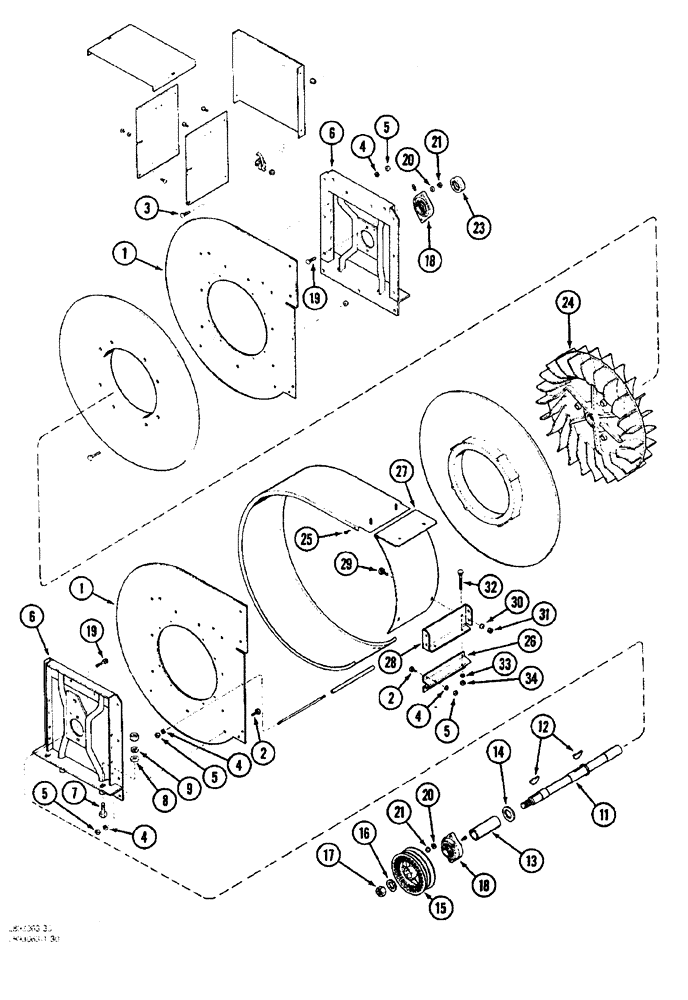

Запчасти Case IH 1844 (9B-08) - FRONT FAN, 1844 COTTON PICKER (15) - HANDLING SYSTEM

86857C91

FAN

ASSEMBLY - front (Prior to P.I.N. JJC0002560)

1шт.

1345030C1

FAN

ASSEMBLY - front (P.I.N. JJC0002560 and after)

1шт.

1

1260067C1

PLATE

- front fan side

2шт.

2

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - round head square neck, 1/4 NC x 3/4 inch

10шт.

3

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

Bolt, Carriage, Short NK, 1/4"-20 x 1/2", G5, Full Thd

20шт.

4

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

32шт.

5

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

32шт.

6

1260120C3

HOUSING

- fan (Prior to P.I.N. JJC0002560)

2шт.

6

1260120C3

HOUSING

- fan (P.I.N. JJC0002560 and after)

1шт.

6

1338329C1

HOUSING

- fan, front (P.I.N. JJC0002560 and after)

1шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

8

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

4шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

11

1260070C3

SHAFT

- front fan

1шт.

12

88745

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

KEY - Woodruff, 5/16 x 2-1/8 inch, SAE 28

2шт.

13

1260073C1

SPACER

- fan

1шт.

14

495-81214

WASHER,1.41" ID x 2.25" OD x 0.06" Thk

- flat, 1-13/32 x 2-1/4 x 1/16 inch

1шт.

15

221671C2

PULLEY

- fan (Prior to P.I.N. JJC0002560)

1шт.

15

1338322C1

PULLEY

- fan (P.I.N. JJC0002560 and after)

1шт.

16

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

- flat, 15/16 x 1-3/4 x 1/8 inch

1шт.

17

543386R1

LOCK NUT,7/8"-14, G5

NUT - hex lock, 7/8 inch NF

1шт.

18

1260257C1

FLANGED BEARING,34.93mm ID

BEARING - fan

2шт.

19

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

BOLT - round head square neck, 3/8 NC x 1-1/2 inch

4шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

4шт.

21

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

4шт.

23

517645R11

COLLAR

- locking

1шт.

24

1260010C1

FAN

- rotor

1шт.

25

260-1346

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

SCREW - self-tapping, pan Phillips, No. 8-18 x 3/8 inch

2шт.

26

204414C1

SUPPORT

- tie bracket

1шт.

27

204416C1

BAFFLE

PLATE - cover

1шт.

28

204415C1

SUPPORT

- bolt anchor

1шт.

29

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

6шт.

30

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

31

425-105

NUT,5/16"-18, G5

- hex, 51/6 inch NC

6шт.

32

433-648

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3", Gr 5

BOLT - round head square neck, 3/8 NC x 3 inch

2шт.

33

492-11038

LOCK WASHER,3/8"

2шт.

34

425-106

NUT,3/8"-16, Cl 5

2шт.
