Запчасти Case IH 1844 (9A-134) - QUICK FILL ATTACHMENT, 1844 COTTON PICKER (14) - WATER SYSTEM

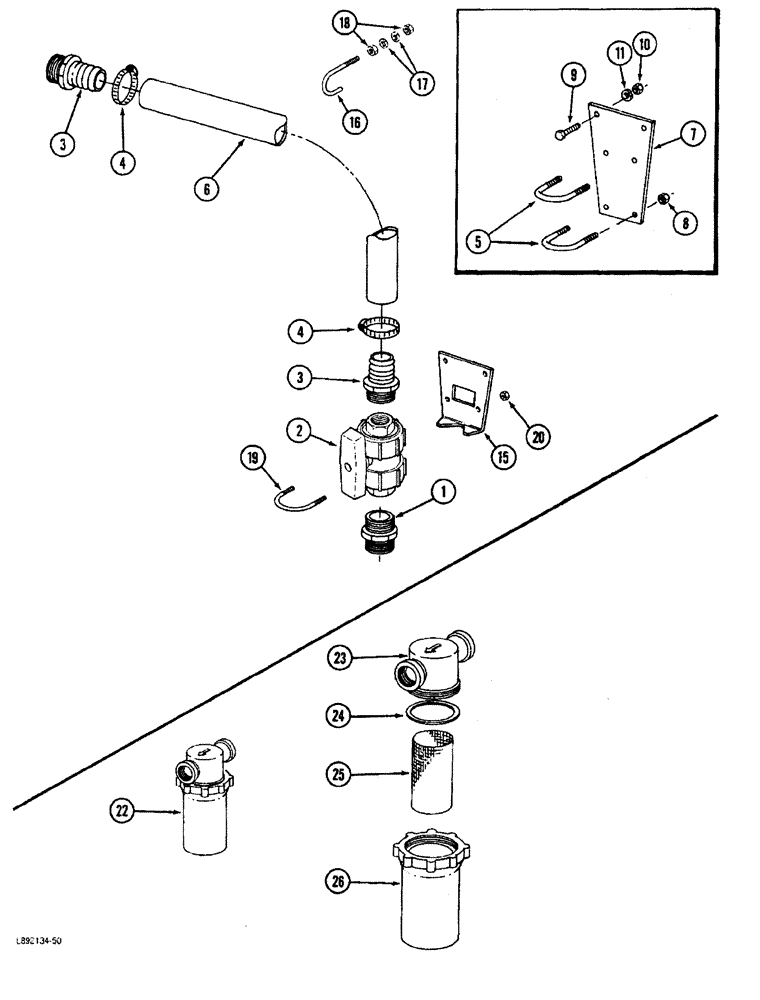

Схема запчастей Case IH 1844 - (9A-134) - QUICK FILL ATTACHMENT, 1844 COTTON PICKER (14) - WATER SYSTEM
7
19
4
15
24
16
25
3
18
1
2
5
20
11
6
10
26
17
8
23
22
4
3
9

Артикул

Название

Примечание

Количество

1

1264070C1

FITTING

NIPPLE - 1-1/4 x 1-1/4 inch

1шт.

2

1980002C1

VALVE,1-1/4" Single Union Poly Valve

ASSEMBLY - water (Replaces 1954828C1)

1шт.

3

1264072C1

FITTING

- 1-1/4 x 1-1/2 inch

2шт.

4

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

5

1979995C1

U-BOLT,5/16" - 18 x 3 3/4"

- 5/16 inch NC (Water valve)(Replaces 87715C2)

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - water, 35-1/2 inch (Order 87704C1, cut to length) (Used with 1270237C1)

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - water, 33 inch (Order 87704C1, Serial Range: cut-length)

1шт.

7

1270237C1

PLATE

- water valve support (If equipped)

1шт.

8

120376

NUT,5/16"-18, G5

4шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

1345168C1

SUPPORT

BRACKET - water valve support

1шт.

16

1345188C1

BOLT,J, 3/8" - 16 x 57mm W x 73mm L

BOLT - J, water hose support

1шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.

19

1979995C1

U-BOLT,5/16" - 18 x 3 3/4"

- water valve, 5/16 inch

1шт.

20

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

22

87006C92

FILTER

ASSEMBLY - water

1шт.

23

NSS

NOT SOLD SEPARAT

BASE - water filter (Order 87006C92)

1шт.

24

87225C1

GASKET

- line strainer, water filter

1шт.

25

87260C1

FILTER SCREEN

SCREEN, water filter

1шт.

26

NSS

NOT SOLD SEPARAT

BOWL - water filter (Order 87006C92)

1шт.

Выбрано товаров: 23
