Запчасти Case IH 1844 (9A-128) - WATER LINES, 1844 COTTON PICKER P.I.N. JJC0002560 AND AFTER (14) - WATER SYSTEM

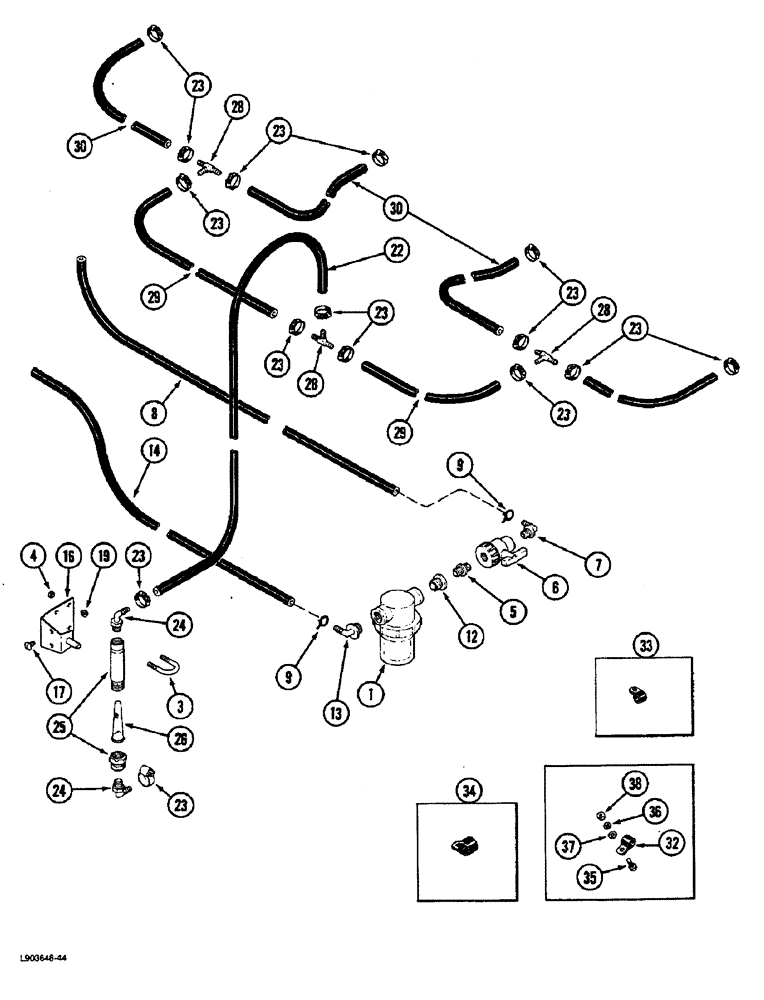

Схема запчастей Case IH 1844 - (9A-128) - WATER LINES, 1844 COTTON PICKER P.I.N. JJC0002560 AND AFTER (14) - WATER SYSTEM
6
24
29
23
25
23
30
32
36
23
28
33
9
7
28
13
23
5
24
28
23
34
30
3
37
1
23
12
23
9
35
16
8
4
29
26
23
14
17
38
23
23
22
19

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

FILTER ASSEMBLY - water (See page 9A-135)

1шт.

3

1338145C1

U-BOLT,3/8" - 16 x 41.15mm W x 41.30mm L

- bracket retaining

2шт.

4

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

4шт.

5

1345155C1

ADAPTER

NIPPLE - 3/4 x 3/4 inch

1шт.

6

1345067C1

SHUT-OFF VALVE,3/4" Single Union Poly Valve

VALVE ASSEMBLY - shutoff

1шт.

7

1329210C1

ELBOW

- 90 degree, 3/4 thread x 1/2 inch barb

1шт.

8

NSS

NOT SOLD SEPARAT

HOSE - tank to valve, 115 inch long (Order 665181R1, Serial Range: cut-length)

1шт.

16

1345211C1

SUPPORT

BRACKET - filter mounting

1шт.

17

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 x 3/4 inch

2шт.

19

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

22

NSS

NOT SOLD SEPARAT

HOSE - in-line filter to tee, 102 inch (Order 1338159C1, Serial Range: cut-length)

1шт.

23

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- adj. #4, 0.25/0.62 Type F Worm

15шт.

24

1339135C1

ELBOW

FITTING - barb, hose

2шт.

25

1339134C1

FILTER

- water, inline

1шт.

26

1339256C1

FILTER STRAINER

SCREEN - filter

1шт.

28

1339010C1

FITTING

TEE - barb, 3/8 inch

3шт.

29

NSS

NOT SOLD SEPARAT

HOSE - tee to drum, 70 inch (Order 1338159C1, Serial Range: cut-length)

2шт.

30

NSS

NOT SOLD SEPARAT

HOSE - tee to drum, no. 2 and 3, 23 inch (Order 1338159C1, Serial Range: cut-length)

2шт.

31

NSS

NOT SOLD SEPARAT

HOSE - tee to drum, no. 1 and 4, 55 inch (Order 1338159C1, Serial Range: cut-length)

2шт.

32

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- P, 3/4 inch diameter

9шт.

33

49885

CLAMP

- hose retaining

2шт.

34

92070C1

CLAMP,1 1/4", Insul, 7/16" Bolt

- insulated retaining

2шт.

35

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

4шт.

36

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

37

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

38

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

Выбрано товаров: 26
