Запчасти Case IH 1844 (9A-126) - WATER LINES, 1844 COTTON PICKER PRIOR TO P.I.N. JJC0002560 (14) - WATER SYSTEM

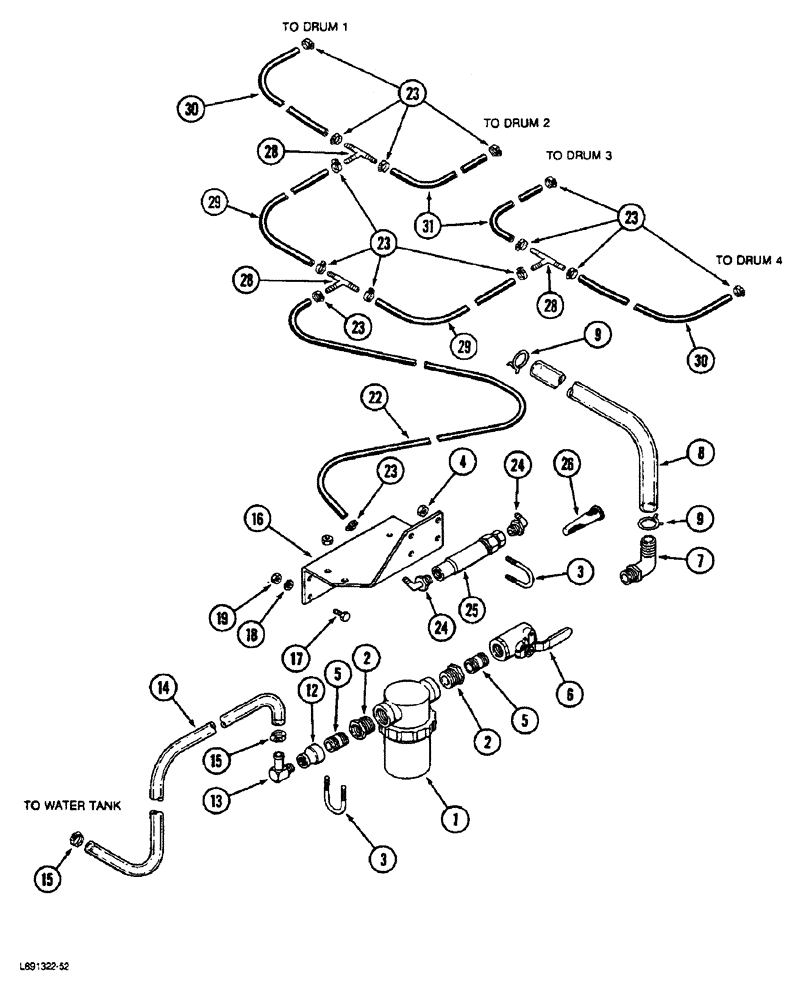

Схема запчастей Case IH 1844 - (9A-126) - WATER LINES, 1844 COTTON PICKER PRIOR TO P.I.N. JJC0002560 (14) - WATER SYSTEM
19
5
18
3
28
7
17
16
30
28
2
2
23
15
28
8
28
1
9
25
12
29
23
24
22
29
3
5
15
14
4
9
30
24
23
23
13
23
6
31

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

FILTER ASSEMBLY - water (See page 9A-135)

1шт.

2

117219

ADAPTER,1" NPT Male x 3/4" NPT Fem

- filter, 1 to 3/4 inch PT

2шт.

3

1338145C1

U-BOLT,3/8" - 16 x 41.15mm W x 41.30mm L

- bracket retaining

4шт.

4

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

8шт.

5

28771R1

PIPE,Nipple, 3/4" NPT x 1 3/8", Brass

NIPPLE - 3/4 x 1-3/8 inch PT

2шт.

6

222709C1

VALVE

ASSEMBLY - shutoff

1шт.

7

134271C1

ELBOW

- hose, 3/4 thread x 1 inch barb

1шт.

8

NSS

NOT SOLD SEPARAT

HOSE - tank to valve, 27 inch (Order 222887C2, Serial Range: cut-length)

1шт.

9

324734R1

HOSE CLAMP,#20, 1 1/4", Spring

CLAMP - hose retaining

2шт.

12

1338615C1

COUPLING

- 3/4 to 3/8 inch PT

1шт.

13

57964R1

FITTING

ELBOW - 90 degree

1шт.

14

NSS

NOT SOLD SEPARAT

HOSE - filter to pump, 80 inch (Order 665181R1, Serial Range: cut-length)

1шт.

15

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP - hose retaining

6шт.

16

1339172C1

BRACKET

- filter mounting

1шт.

17

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

5шт.

19

120376

NUT,5/16"-18, G5

5шт.

22

NSS

NOT SOLD SEPARAT

HOSE - filter, 75 inch (Order 1338159C1, Serial Range: cut-length)

1шт.

23

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

Retaining #06, .44/.78 Type F Worm

18шт.

24

1339135C1

ELBOW

FITTING - barb, hose

2шт.

25

1339134C1

FILTER

- water, inline

1шт.

26

1339256C1

FILTER STRAINER

SCREEN - filter

1шт.

28

1339010C1

FITTING

TEE - barb, 3/8 inch

3шт.

29

NSS

NOT SOLD SEPARAT

HOSE - tee to drum, 60 inch (Order 1338159C1, Serial Range: cut-length)

4шт.

30

NSS

NOT SOLD SEPARAT

HOSE - drum, no. 1 and 4 (Order 1338159C1, Serial Range: cut-length)

2шт.

31

NSS

NOT SOLD SEPARAT

HOSE - drum, No. 2 and 3 (Order 1338159C1, Serial Range: cut-length)

2шт.

Выбрано товаров: 26
