Запчасти Case IH 1844 (9A-120) - WATER TANK SUPPORT, 1844 COTTON PICKER (14) - WATER SYSTEM

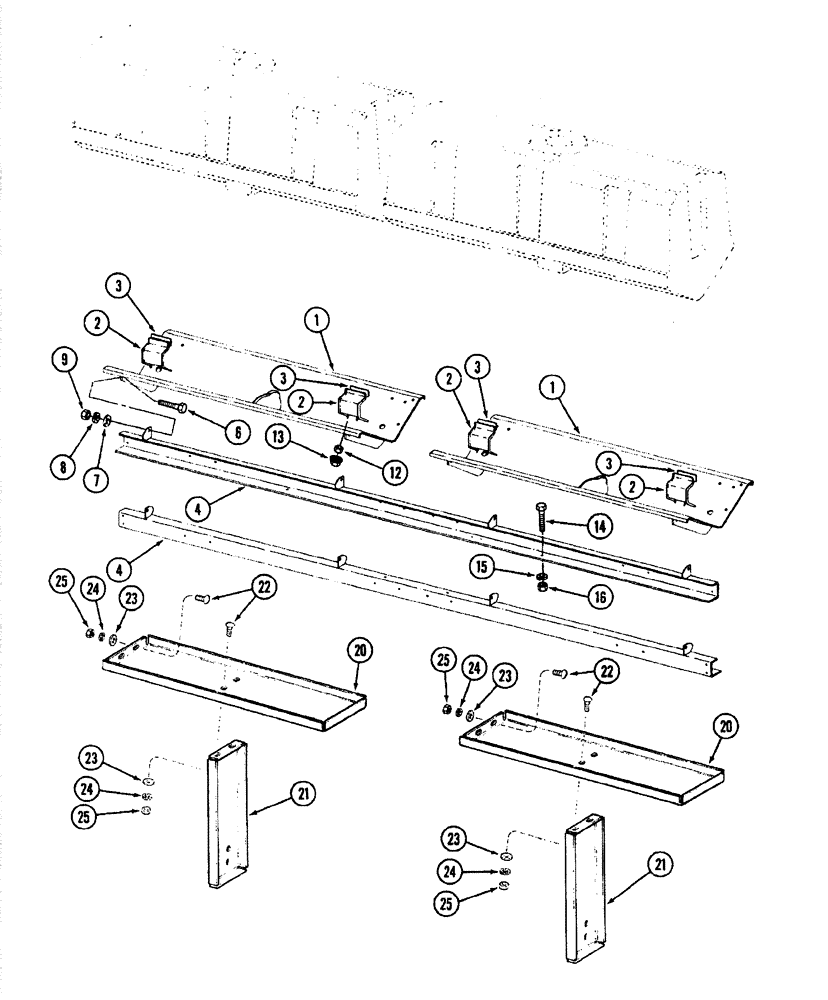

Схема запчастей Case IH 1844 - (9A-120) - WATER TANK SUPPORT, 1844 COTTON PICKER (14) - WATER SYSTEM
24
23
2
25
3
3
15
2
4
13
1
24
21
7
23
2
12
3
9
23
20
14
4
24
2
3
25
22
20
8
1
25
23
24
6
25
16
22
21

Артикул

Название

Примечание

Количество

1

1339484C1

SUPPORT

SADDLE ASSEMBLY - tank

2шт.

2

1329232C1

SUPPORT

BRACKET - tank retaining

8шт.

3

1250768C1

STRIP

PAD - clamp

8шт.

4

1270191C4

SUPPORT

ASSEMBLY - water tank

2шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

16шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

12

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/89 inch NC

16шт.

13

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

16шт.

14

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

16

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

20

1329412C3

SHIELD

- water tank

2шт.

21

1329413C2

SUPPORT

- tank shield

2шт.

22

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 5/16 x 1 inch

8шт.

23

28588R1

WASHER

- flat, 1-1/32 x 11/16 x 3/64 inch

4шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

25

120376

NUT,5/16"-18, G5

8шт.

Выбрано товаров: 19
