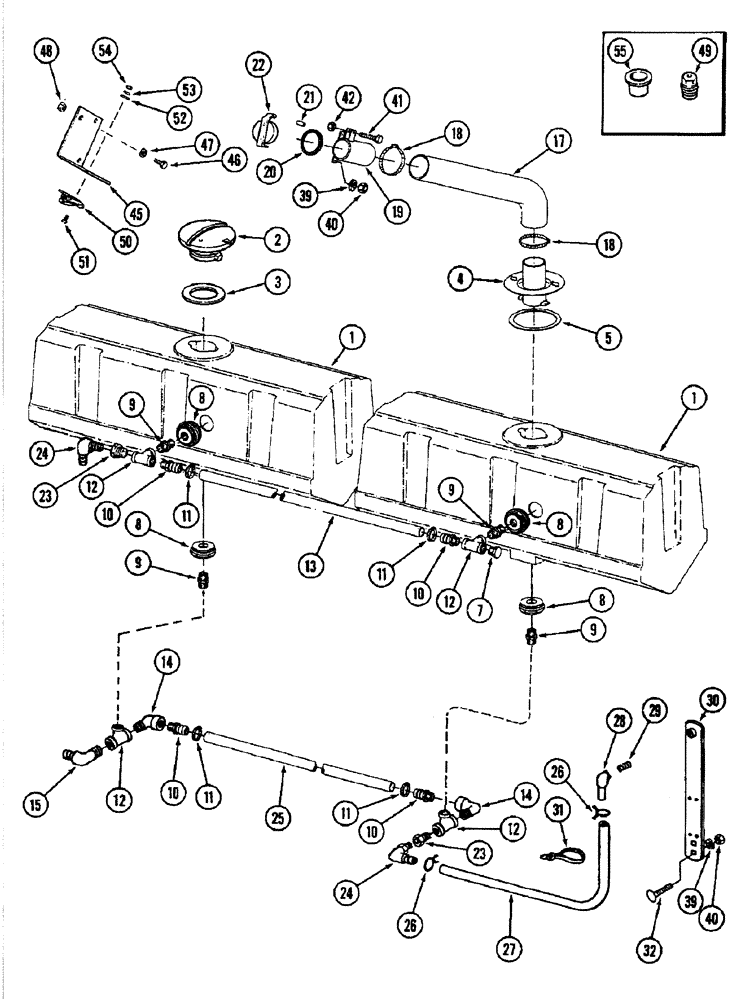

Запчасти Case IH 1844 (9A-116) - WATER TANK, 1844 COTTON PICKER (14) - WATER SYSTEM

1

1329203C1

HOPPER

TANK - water, 130 gallon

2шт.

1

NSS

NOT SOLD SEPARAT

TANK - water, 110 gallon (Order 1329203C1)

2шт.

2

1338661C1

CAP

ASSEMBLY - water tank (screw-on type is 1345173C1)

1шт.

3

1338641C1

GASKET

- tank cap

1шт.

4

1288910C3

CAP

ASSEMBLY - water tank

1шт.

5

1338641C1

GASKET

- tank cap

1шт.

7

1254380C2

PLUG,Hex Hd, 1 1/4" NPT, Nylon

- male pipe, 1-1/4 inch

1шт.

8

1254377C1

FITTING

- hopper nylon

4шт.

9

1264070C1

FITTING

NIPPLE - 1-1/4 x 1-1/4 inch

4шт.

10

1264072C1

FITTING

- 1-1/4 x 1-1/2 inch

4шт.

11

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

12

1264067C1

FITTING

TEE - female, 1-1/4 inch PT

4шт.

13

NSS

NOT SOLD SEPARAT

HOSE - water, 71 inch (Order 87704C1, Serial Range: cut-length)

1шт.

14

1264068C1

ELBOW

- 90 degree, 1-1/4 x 1-1/4 inch

2шт.

15

1261310C1

ELBOW

- 90 degree, 1-1/4 thread x 1 inch barb

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE - filler 58-1/2 inch (Order 87273C1, Serial Range: cut-length)

1шт.

18

274090R91

HOSE CLAMP,3.75/4.63 Type F Worm

CLAMP - type F hose

2шт.

19

1288914C2

TUBE,81 mm Length

ASSEMBLY - water

1шт.

20

1338644C1

GASKET

GASKET - water fill cap

1шт.

73212C1

GASKET

SEAL - foam, 4 foot length

1шт.

21

65881H

SPACER,1/4" Pipe x 1 1/4"

- standard pipe, 1/4 x 1-1/4 inch

1шт.

22

86831C3

CAP ASSY.

CAP ASSEMBLY - water remote fill

1шт.

23

1329209C1

BUSHING

- reducer, 1-1/4 to 3/4 inch

2шт.

24

1329210C1

ELBOW

- hose, 3/4 thread x 1/2 inch barb

2шт.

25

NSS

NOT SOLD SEPARAT

HOSE - water, 79 inch (Order 1264065C1, Serial Range: cut-length)

1шт.

26

214-1312

HOSE CLAMP,#12, 3/4", Spring

CLAMP - hose, no. 12 type E spring wire

2шт.

27

NSS

NOT SOLD SEPARAT

HOSE - sight gauge, 54 inch (Order 665181C1, Serial Range: cut-length)

1шт.

28

1338433C1

ROD, CONNECTING

CONNECTOR - sight gauge

1шт.

29

1338434C1

ADAPTER

- sight gauge

1шт.

30

1329235C1

BAR

ASSEMBLY - sight gauge

1шт.

31

289862C1

CABLE TIE,3/16" x 7"

STRAP - rounded head square neck, 3/8 NC x 1 inch

2шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

40

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

41

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

42

9413952

LOCK NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

1шт.

45

1338642C1

BRACKET

- fill cap latch

1шт.

46

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

47

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

48

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

49

684183R1

PLUG

- vent

1шт.

50

1333780C1

LATCH

- cap

1шт.

51

159929

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

- pan head, no. 10-32 x 5/8 inch

2шт.

52

120391

WASHER,#10

- flat, 7/32 x 1/2 x 1/32 inch

2шт.

53

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

54

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

55

353-404

PLUG,Dome, .500" hole, Nylon

Tank cap Dome, .500" hole, Nylon

1шт.
