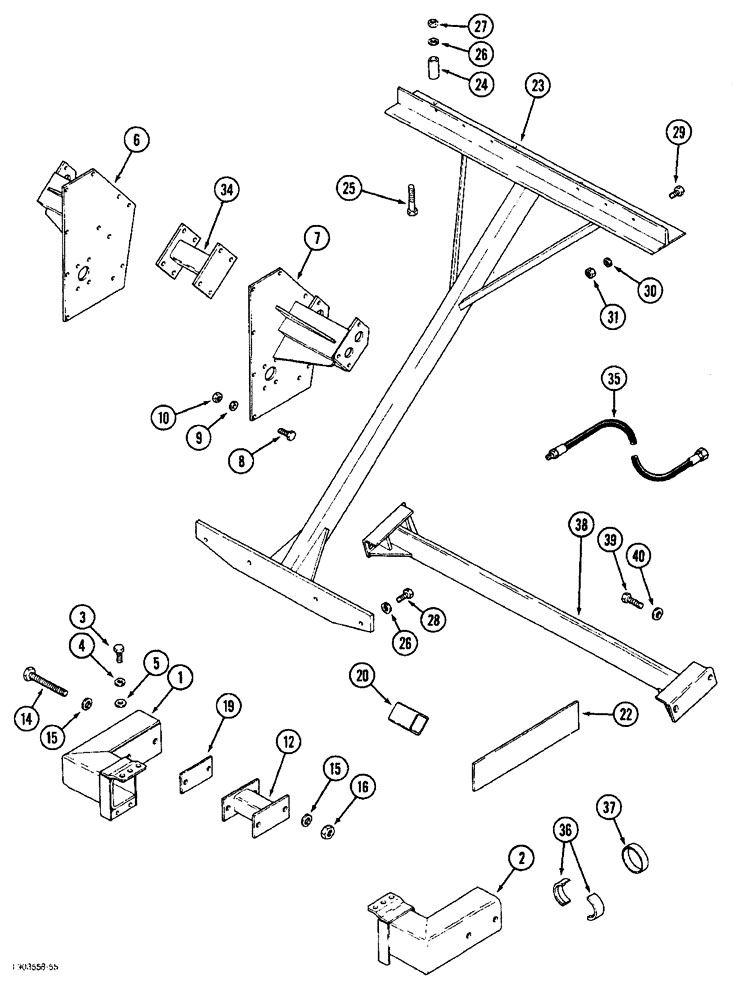

Запчасти Case IH 1844 (9A-110) - SKIP ROW LIFT ARM ATTACHMENT, 1844 COTTON PICKER (13) - PICKING SYSTEM

1

1982916C1

EXTENSION

ASSEMBLY - lift arm, left

1шт.

2

1982917C1

EXTENSION

ASSEMBLY - lift arm, right

1шт.

3

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

10шт.

4

492-21062

LOCK WASHER,5/8"

10шт.

5

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

10шт.

6

1983095C1

EXTENSION

ASSEMBLY - left

1шт.

7

1983096C1

EXTENSION

ASSEMBLY - right

1шт.

8

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

10шт.

9

392-21050

LOCK WASHER,1/2"

1/2"

10шт.

10

329-108

NUT,1/2"-13, G8

10шт.

12

1982921C1

SUPPORT

ASSEMBLY - bracket

2шт.

14

25702R1

BOLT,3/4" x 8, Gr 8

- hex, 3/4 NC x 8 inch, Grade 8

4шт.

15

495-11081

WASHER,3/4", SAE

8шт.

16

359793C1

NUT,3/4"-10, GC

- hex, 3/4 inch NC, Grade 8

4шт.

19

1982919C1

LARGE PLATE

PLATE - end arm support

2шт.

20

1982918C1

TUBE

- arm extension support

2шт.

22

1349919C1

LARGE PLATE

PLATE - arm extension support

2шт.

23

1983099C1

SUPPORT

ASSEMBLY - platform

1шт.

24

670446R1

SPACER,1/2" Pipe x 3"

- pipe, 1/2 x 3 inch

4шт.

25

326-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

4шт.

26

392-21050

LOCK WASHER,1/2"

1/2"

8шт.

27

329-108

NUT,1/2"-13, G8

4шт.

28

328-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 8

8шт.

29

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

6шт.

30

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

31

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

34

1983158C1

SUPPORT

FRAME ASSEMBLY - support

2шт.

35

1349967C1

HOSE

- drum supply

4шт.

36

1346484C1

SPACER

- cylinder

2шт.

37

1346465C1

SPACER

- cylinder

2шт.

38

1984314C1

SUPPORT

- main frame

1шт.

39

326-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

4шт.

40

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

4шт.
