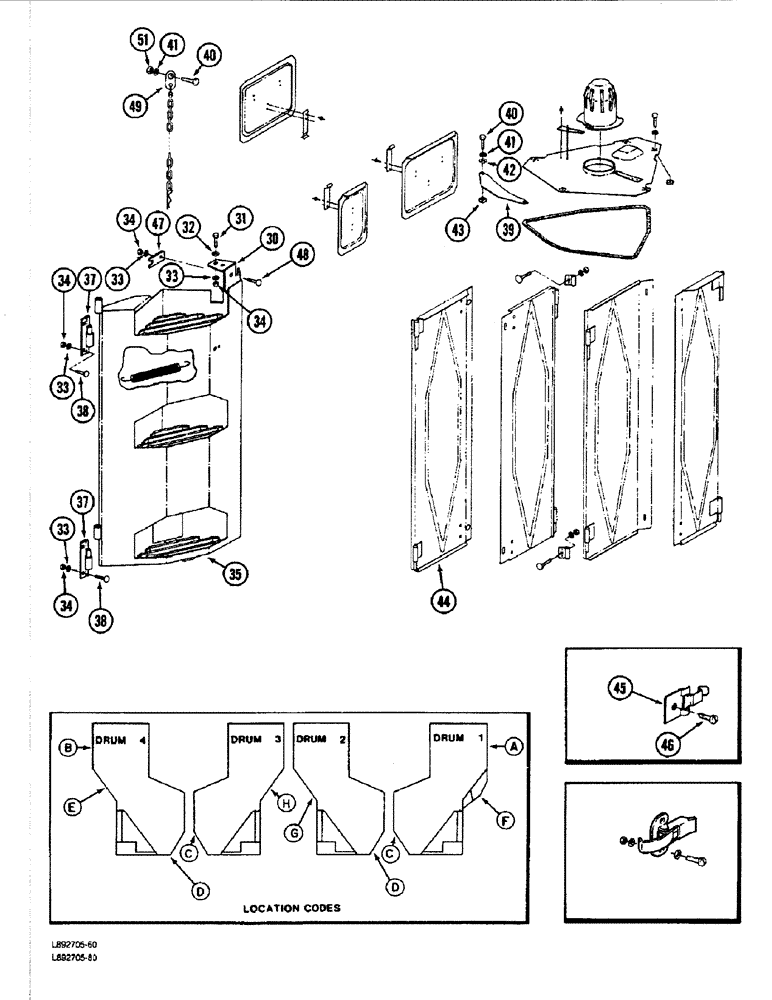

Запчасти Case IH 1844 (9A-096) - DOOR COVER AND STEP, 1844 COTTON PICKER (13) - PICKING SYSTEM

30

1278817C6

SUPPORT

- lower cover, left

4шт.

30

1266356C6

SUPPORT

- lower cover, right

4шт.

31

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

32шт.

32

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

16шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

29шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

29шт.

34

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

6шт.

35

87774C1

STEP

- drum (Location F)

1шт.

36

655919R1

SPRING

- plant lifter (Drum No. 1)

1шт.

37

1278847C2

HINGE

- step (Drum No. 1)

2шт.

38

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

39

220182C1

LARGE PLATE

PLATE - access

8шт.

40

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

17шт.

41

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

17шт.

42

120392

WASHER,1/4", SAE

- flat, 9.32 x 3/64 inch

16шт.

43

673689R1

NUT

- speed, 1/4 inch NC

16шт.

44

1266321C3

SHIELD

- middle, left (Drum No. 2)(Location G)

1шт.

44

1266322C3

SHIELD

- middle, right (Drum No. 3)(Location H)

1шт.

45

167800C1

CLIP

CLIP - door

1шт.

46

449625

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - slotted, No. 10 x 5/8 inch tapping

1шт.

47

87676C1

LARGE PLATE

PLATE - step lock (Drum No. 1)

1шт.

48

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

49

87509C2

CHAIN (AG)

CHAIN - drum (Drum No. 1)

1шт.

50

586591R1

COTTER PIN

PIN - quick attachable, 1/8 inch

1шт.

51

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.
