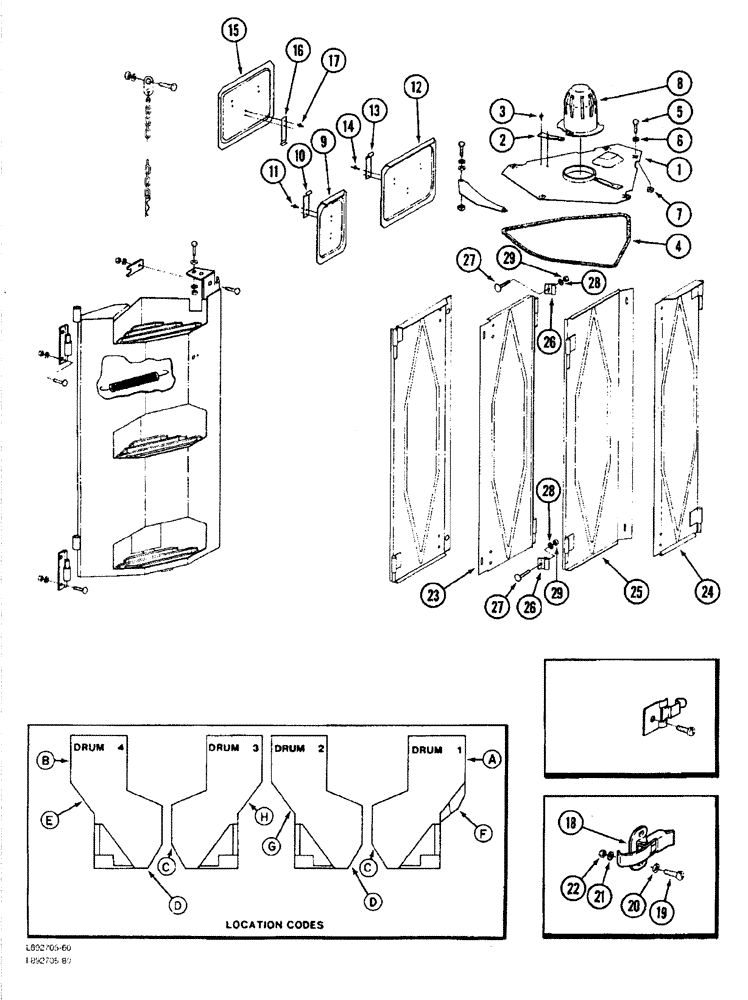

Запчасти Case IH 1844 (9A-094) - DOOR, COVER AND STEP, 1844 COTTON PICKER (13) - PICKING SYSTEM

Артикул

Название

Примечание

Количество

1

1278682C92

COVER ASSY

COVER ASSEMBLY - top

8шт.

2

1278684C1

CLIP

- cover

2шт.

3

201946C1

RIVET,Pop, 3/16" x .325"

- break mandrel, 5 x 8 mm

4шт.

4

NSS

NOT SOLD SEPARAT

SEAL - cover, 49-1/2 inch (Order 57554C1, Serial Range: cut-length)

2шт.

57554C1

SEAL

- foam, 200 foot

1шт.

5

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

10шт.

6

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

10шт.

7

673689R1

NUT

- speed, 1/4 inch NC

10шт.

8

1278685C1

COVER

- rotor

8шт.

9

223791C91

COVER

ASSEMBLY - wrap, small

24шт.

10

223793C1

CLIP

- spring

12шт.

11

201946C1

RIVET,Pop, 3/16" x .325"

- break mandrel, 5 x 8 mm

24шт.

12

223797C91

COVER

ASSEMBLY - wrap, large (See note A)

1шт.

13

223793C1

CLIP

- spring

3шт.

14

201946C1

RIVET,Pop, 3/16" x .325"

- break mandrel, 5 x 8 mm

1шт.

15

87636C91

COVER

ASSEMBLY - wrap, large (See note B)

1шт.

16

223793C1

CLIP

- spring

1шт.

17

201946C1

RIVET,Pop, 3/16" x .325"

- break mandrel, 5 x 8 mm

1шт.

18

1333780C1

LATCH

- door (No. 4 drum)

2шт.

19

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

- slotted, no. 10 x 1/2 inch

4шт.

20

120391

WASHER,#10

- flat, 7/32 x 1/2 x 1/32 inch

4шт.

21

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

22

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

23

1278819C2

DOOR

- drum, left (No. 1 drum) (Location A)

1шт.

23

1278820C2

DOOR

- drum, right (No. 4 drum) (Location B)

1шт.

24

1278821C3

DOOR

- access, left (No. 1 and 3 drum) (Location C)

2шт.

24

1278822C3

DOOR

- access, right (No. 2 and 4 drum) (Location D)

2шт.

25

1278824C2

DOOR

- access, left (No. 4 drum) (Location E)

1шт.

26

1278818C2

HINGE

- door (See note C)

1шт.

27

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

Выбрано товаров: 32
