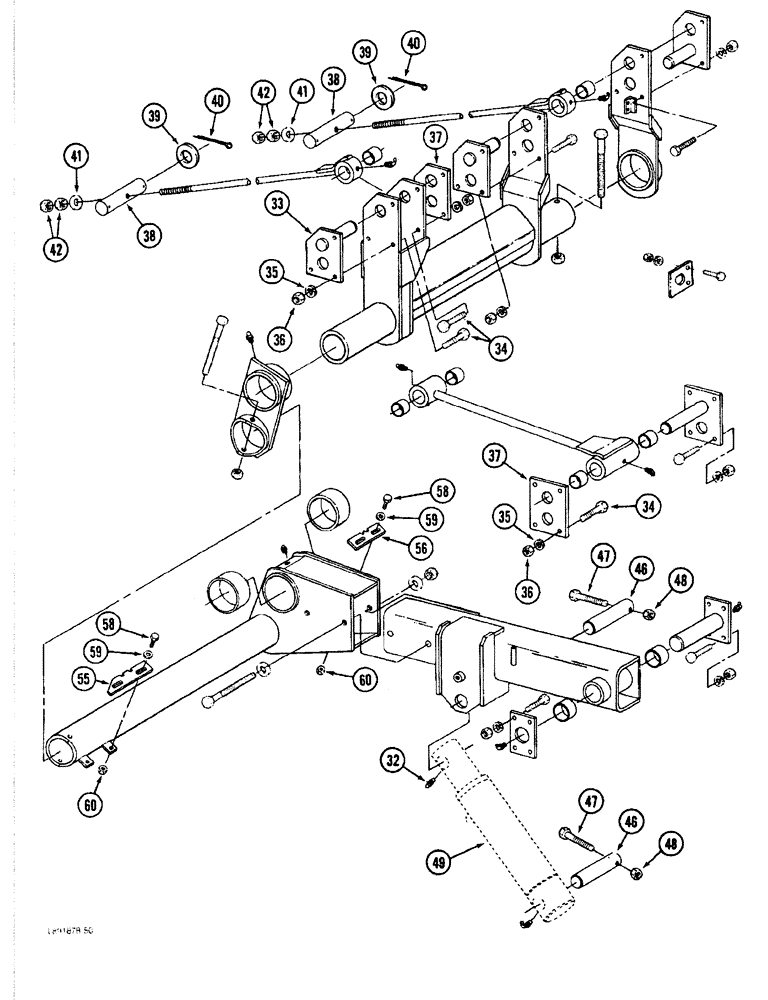

Запчасти Case IH 1844 (9A-088) - DRUM LIFT ARM, 1844 COTTON PICKER (13) - PICKING SYSTEM

32

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PT (See Note A) 1/8"-27 x .66 lg

2шт.

33

1278416C1

SHAFT

- lower, outer

2шт.

34

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

35

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

35

25529R1

NUT,3/4"-10, G8

- hex, 3/4 inch NC, Grade 8

8шт.

36

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

37

1278433C1

LARGE PLATE

PLATE - pivot, lower

4шт.

38

1278311C1

PIN

- lift

4шт.

39

21787R1

WASHER

- flat, 2-1/16 x 3/64 inch

8шт.

40

108659

PIN

- cotter, 5/16 x 2-3/4 inch

8шт.

41

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

- flat, 13/16 x 1-1/2 x 9/64 inch

4шт.

46

1288567C3

PIVOT PIN

PIN - pivot (Used at upper position only)

4шт.

47

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

4шт.

48

9413956

LOCK NUT,1/2"-13, GB

NUT - hex, 1/2 inch NC

4шт.

49

REF

INSTRUCTION

CYLINDER - lift (See Page 8-39)

2шт.

55

1338018C1

LARGE PLATE

PLATE - adjusting, outer

2шт.

56

1338020C1

LARGE PLATE

PLATE - adjusting, inner

2шт.

58

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

59

120390

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

8шт.

60

9413967

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2 inch NC

8шт.
