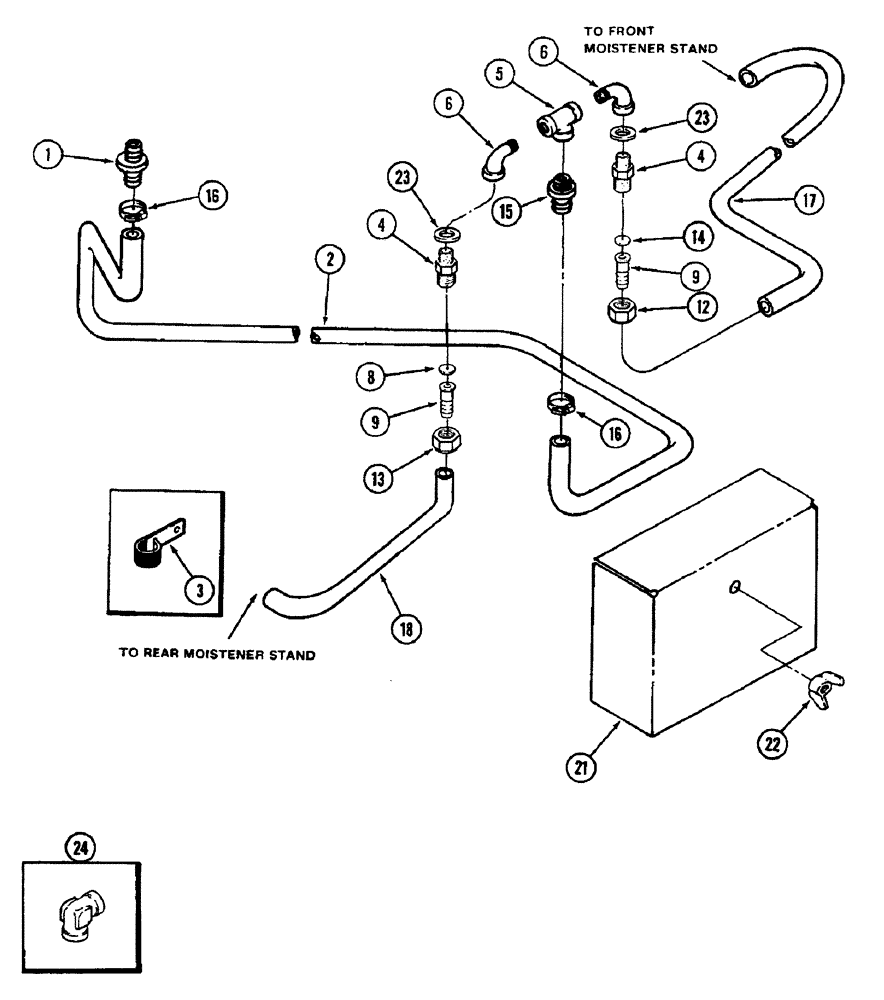

Запчасти Case IH 1844 (9A-062) - WATER LINES IN DRUM (13) - PICKING SYSTEM
17
23
12
5
13
16
15
3
23
21
1
16
4
6
18
2
9
8
6
9
24
14
22
4
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
2
NSS
NOT SOLD SEPARAT
HOSE - valve supply, 45 inch long (Order 1338159C1 and, Serial Range: cut-length)
1шт.
16
214-274
HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm
retaining #4, 0.25/0.62 Type F Worm
2шт.
17
NSS
NOT SOLD SEPARAT
HOSE - front moistener, 50 inch long (Order 1338159C1 and, Serial Range: cut-length)
1шт.
18
NSS
NOT SOLD SEPARAT
HOSE - rear moistener, 28 inch long (Order 1338159C1 and, Serial Range: cut-length)
1шт.
24
217-26
ELBOW,90 Degree, 1/8"-27 NPTF, Fem, Brass
- 90 degree, 1/8 inch PT brass
1шт.
