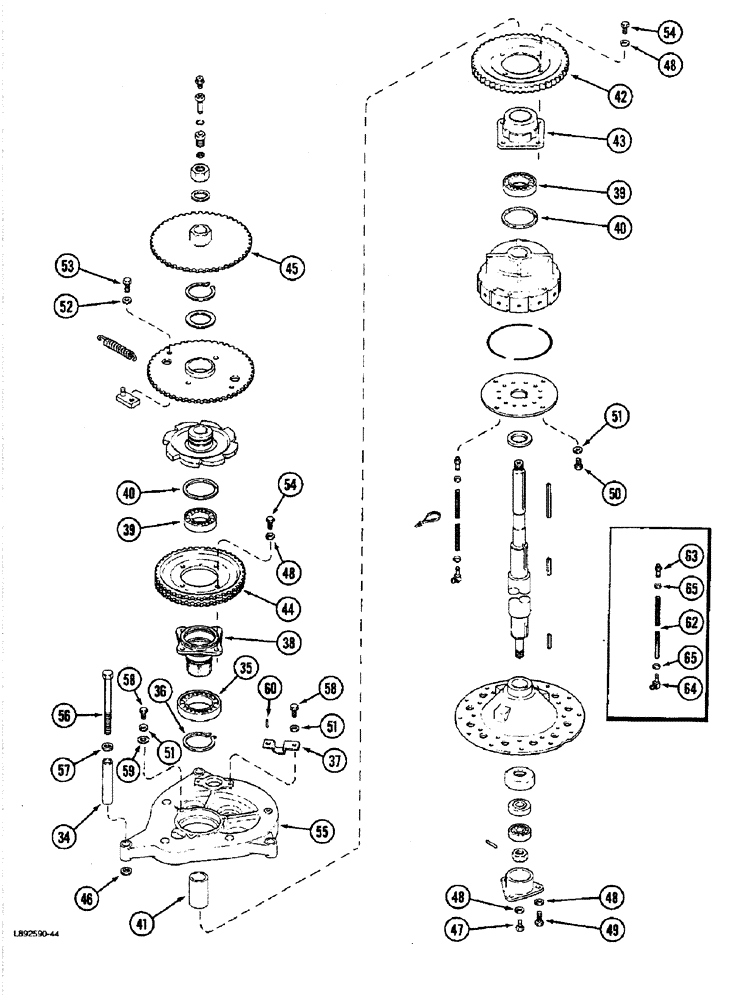

Запчасти Case IH 1844 (9A-050) - DRUM ROTOR AND DRIVE CAMS PICKER BAR DRUM LUBRICATION SYSTEM (13) - PICKING SYSTEM
№
Артикул
Название
Примечание
Количество
34
657744R1
SPACER
- cam
3шт.
35
201118C91
BEARING ASSY,65mm ID x 100mm OD x 18mm W
BEARING - cam center
2шт.
36
300048R1
SNAP RING,#255, Ext
Ring, Snap, #255, Ext
2шт.
37
216138C1
SUPPORT
- cam roller access
2шт.
38
220358C1
HUB
- spindle drive sprocket
2шт.
39
584148R91
BEARING ASSY,35mm ID x 72mm OD x 25mm W
BEARING - drum drive shaft
2шт.
40
560819R1
SNAP RING,#283, 3.009", Int, Spiral
RING - retaining
2шт.
41
672448R2
SPACER
- inner bearing
2шт.
42
216588C1
PINION
GEAR - spindle drive
2шт.
43
216511C1
HUB
- spindle gear
2шт.
44
668560R1
SPROCKET ASSY.
SPROCKET - spindle driven
2шт.
45
1278566C2
SPROCKET ASSY.
SPROCKET ASSEMBLY - moistener drive
1шт.
46
201542C1
SHIM
- cam level, 0.010 inch
1шт.
47
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
6шт.
48
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
24шт.
49
413-68
BOLT,Hex, 3/8" - 16 x 1/2", Gr 5
2шт.
50
424-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 2
- hex, 5/16 NC x 3/4 inch, grade 2
8шт.
51
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
16шт.
52
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
53
14-816
BOLT,Hex, 1/2" - 20 x 1", Gr 5
- hex, 1/2 NF x 1 inch
4шт.
54
14-612
BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd
16шт.
55
216576C2
CAM
- cotton picker left
1шт.
55
216577C2
CAM
- cotton picker right
1шт.
56
19824R1
BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5
- hex, 5/8 NC x 7-1/2 inch
6шт.
57
192-25
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
6шт.
58
113-101
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
8шт.
59
495-21038
WASHER,5/16"
(flat, 3/8 x 7/8 x 5/64") 5/16"
6шт.
60
25954R1
LOCK PIN,9/64" x 1", Slotted
Pin, 9/64" x 1", Slotted
2шт.
62
87535C4
TUBE,0.25" OD
TUBING - picker bar, 50 foot (Order ref. 22 through 25)
1шт.
63
214621C1
FITTING
- hose
24шт.
64
209478C1
ELBOW
- picker bar
24шт.
65
215572C1
CLAMP
- grease hose
48шт.
Выбрано товаров: 32
