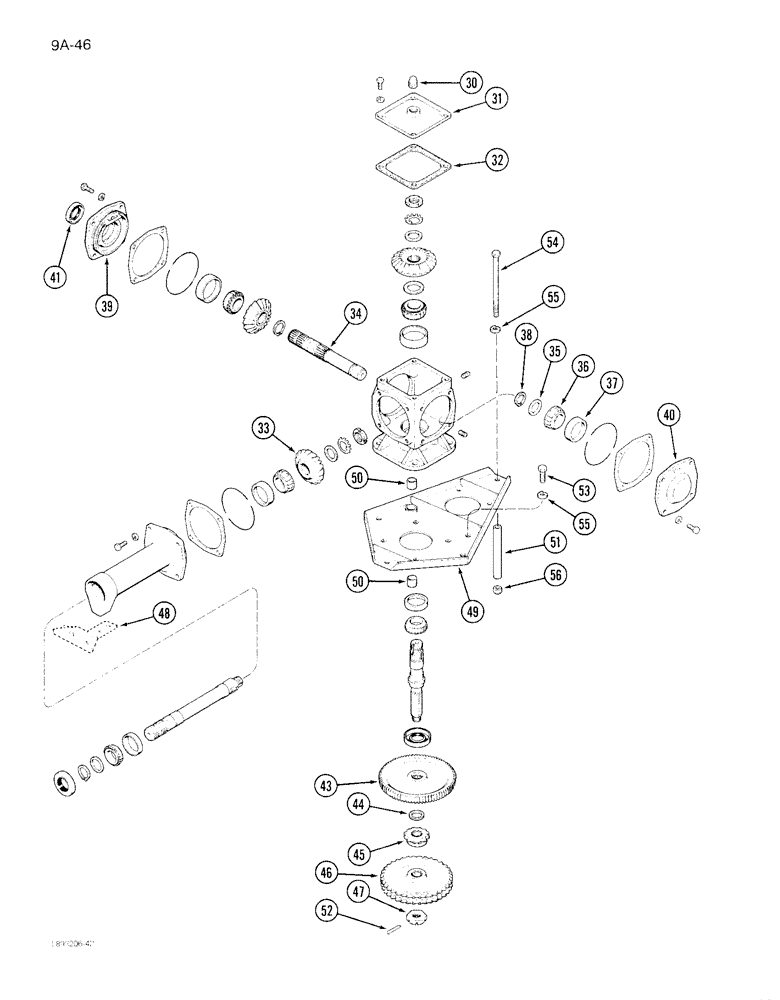

Запчасти Case IH 1844 (9A-046) - GEAR BOX DRUM NUMBER 2 AND 3, 1844 COTTON PICKER (13) - PICKING SYSTEM

REF

INSTRUCTION

GEAR BOX ASSEMBLY - drum 2

1шт.

REF

INSTRUCTION

GEAR BOX ASSEMBLY - drum 3

1шт.

30

250181R1

PLUG

- square head, 1/2-14 inch drilled

1шт.

31

223857C1

COVER

- inspection (Replaces 1982363C1)

1шт.

32

86822C2

GASKET,1.58mm Thk

- drum gear box

1шт.

33

223844C1

PINION

GEAR - drum drive horizontal output

1шт.

34

1286312C1

SHAFT

- drum drive output

1шт.

35

223866C1

WASHER

WASHER - bearing

1шт.

36

642955R91

BEARING ASSY,1.25" ID x 2.4409" OD x 0.75"

CONE - bearing, outer

1шт.

37

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

CUP - bearing, outer

1шт.

38

609053R1

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

39

1286295C1

BEARING CAP

- bearing support

1шт.

40

1286294C1

BEARING CAP,55 mm ID x 125.374 mm OD x 21, 15 mm

- bearing support

1шт.

41

358812R91

OIL SEAL

SEAL - horizontal shaft

1шт.

43

1266259C2

GEAR

- drum drive

1шт.

44

11926R

SHIM

- drum drive sprocket

1шт.

45

1266250C1

SPROCKET ASSY.

SPROCKET - picker drum drive

1шт.

46

1266260C1

SPROCKET ASSY.

SPROCKET - spindle and doffer drive

1шт.

47

359040R1

NUT

- hex slotted, 7/8-14 inch

1шт.

48

REF

INSTRUCTION

BRACKET ASSEMBLY - housing support (See page 9A-35)

1шт.

49

87123C92

SUPPORT ASSY.

SUPPORT - drum gear box, right (Drum 3)

1шт.

49

87122C92

SUPPORT

- drum gear box, left (Drum 2)

1шт.

50

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

- pivot

2шт.

51

1266278C1

TUBE,0.75" OD, 160.5" Length

- spacer

1шт.

52

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

53

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

5шт.

54

21469R1

BOLT,Hex, 1/2" - 13 x 7 3/4", Gr 5

- 1/2 NC x 7-3/4 inch

1шт.

55

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

56

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.
