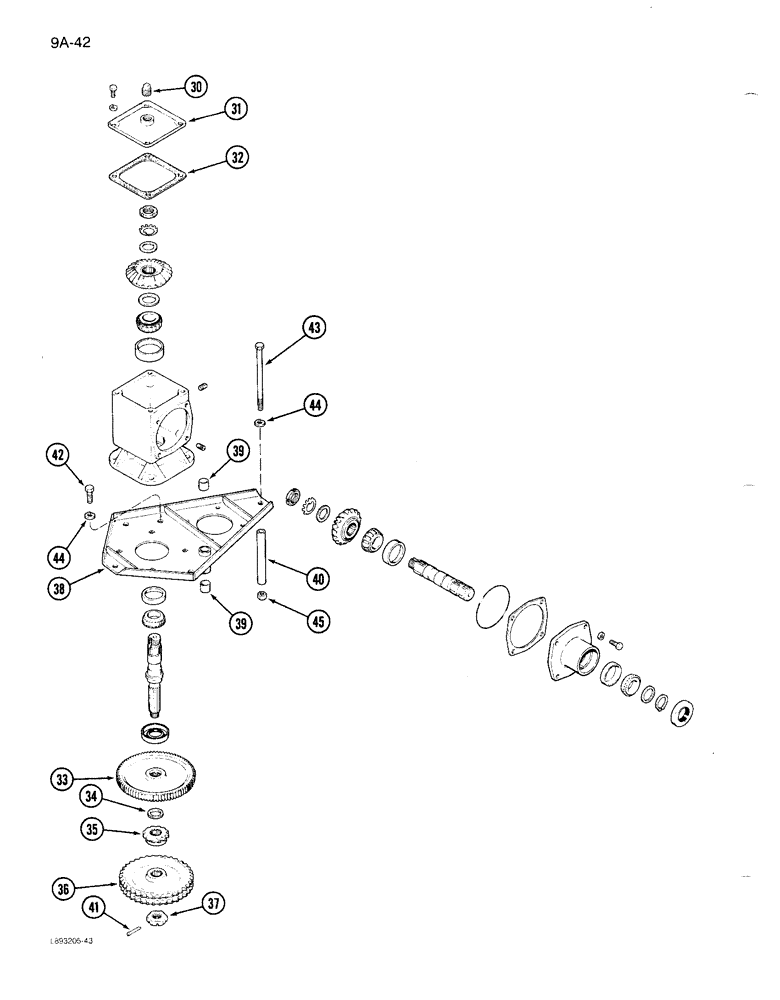

Запчасти Case IH 1844 (9A-042) - GEAR BOX DRUM NUMBER 2 AND 4, 1844 COTTON PICKER (13) - PICKING SYSTEM

REF

INSTRUCTION

GEAR BOX ASSEMBLY - drums 1 and 4

1шт.

30

250181R1

PLUG

- square head, drilled, 1/2-14 inch

1шт.

31

223857C1

COVER

- inspection (Replaces 1982363C1)

1шт.

32

86822C2

GASKET,1.58mm Thk

- drum gear box

1шт.

33

1266259C2

GEAR

- drum drive

1шт.

34

11926R

SHIM

- drum drive sprocket

1шт.

35

1266250C1

SPROCKET ASSY.

SPROCKET - picker drum drive

1шт.

36

1266260C1

SPROCKET ASSY.

SPROCKET - spindle and doffer drive

1шт.

37

359040R1

NUT

- hex slotted, 7/8-14 inch

1шт.

38

87122C92

SUPPORT

- drum gear box, left (Drum 4)

1шт.

38

87123C92

SUPPORT ASSY.

SUPPORT - drum gear box, right (Drum 1)

1шт.

39

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

- pivot

2шт.

40

1266278C1

TUBE,0.75" OD, 160.5" Length

- spacer

2шт.

41

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

42

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

43

21469R1

BOLT,Hex, 1/2" - 13 x 7 3/4", Gr 5

- hex, 1/2 NC x 7-3/4 inch

2шт.

44

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

45

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.
