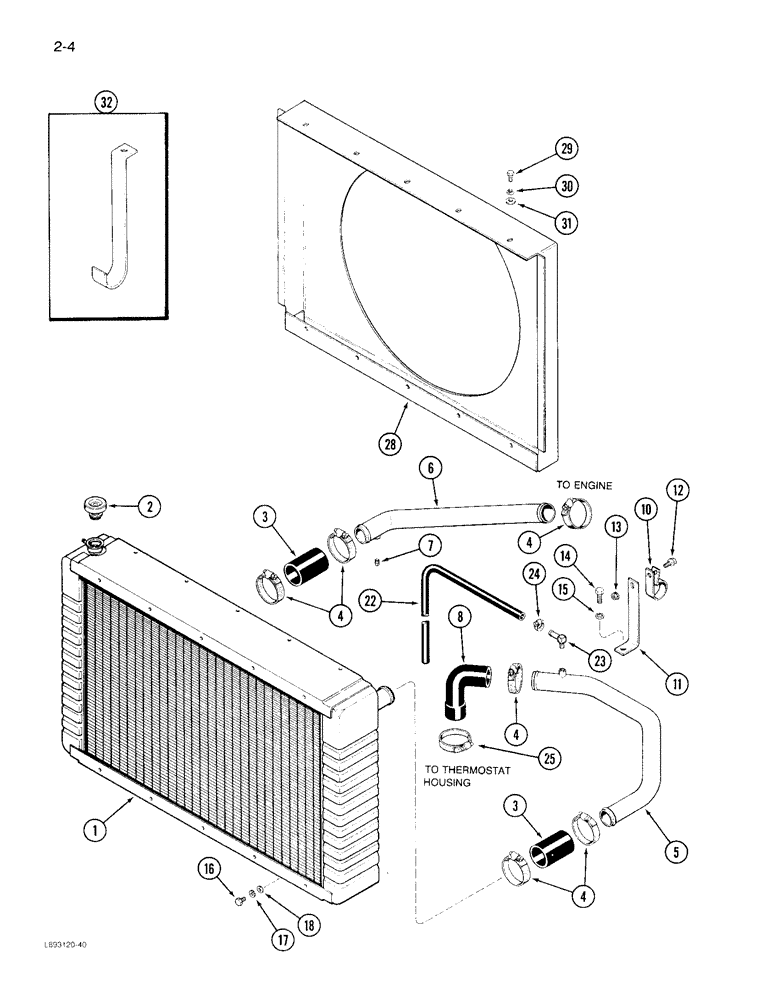

Запчасти Case IH 1844 (2-04) - RADIATOR AND FAN SHROUD 1844 COTTON PICKER (01) - ENGINE

1

84357C2

RADIATOR

- coolant, engine

1шт.

2

130704C1

CAP

- radiator pressure, 10 PSI

1шт.

3

1329393C1

RADIATOR HOSE,50.80 mm ID x 101.60, SAE 20R4 CLASS D-1 OR SAE 20R1 CLASS B

Straight 50.80 mm ID x 101.60, SAE 20R4 CLASS D-1 OR SAE 20R1 CLASS B

2шт.

4

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP - hose, No. 32 type F

6шт.

5

1338670C1

TUBE

- coolant, engine out upper

1шт.

6

1338666C2

TUBE,360, 64 mm Length

- inlet, water

1шт.

7

20988R1

PLUG,Hex Hd, 1/4"-18, Brass

- hex head pipe, 1/4-18 inch PT

1шт.

8

84551C1

HOSE,50.80 mm ID, 56.00 mm ID x 140.00 mm, SAE 20R4 Class D1

Elbow, Engine Coolant Outlet Upper 50.80 mm ID, 56.00 mm ID x 140.00 mm, SAE 20R4 Class D1

1шт.

10

26082R1

CLAMP,2", 1/4" Bolt

- hose, 2 inch closed

1шт.

11

1338671C4

SUPPORT

- tube, out

1шт.

12

937875R1

SCREW,Serr, 1/4" - 20

- slotted truss, 1/4 NC x 3/4 inch

1шт.

13

131-934

NUT,Flg, USR, 1/4"-20

- hex, self-locking, 3/8 inch NC

1шт.

14

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

15

933965R1

LOCK WASHER,M10

1шт.

16

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

18

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

4шт.

22

1338870C1

HOSE

- vent

1шт.

23

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

- 90 degree, 1/4 PT x 3/8 inch barb end

1шт.

24

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP - hose, No. 6 type F

1шт.

25

401345R1

HOSE CLAMP,#40, 2.06/3.00 Type F Worm, W/liner

CLAMP - hose, No. 40 type F

1шт.

28

1338786C1

ORIFICE RING

SHROUD - fan

1шт.

29

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

10шт.

30

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

10шт.

31

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

10шт.

32

1345172C1

BRACKET

- radiator hose hanger

1шт.
