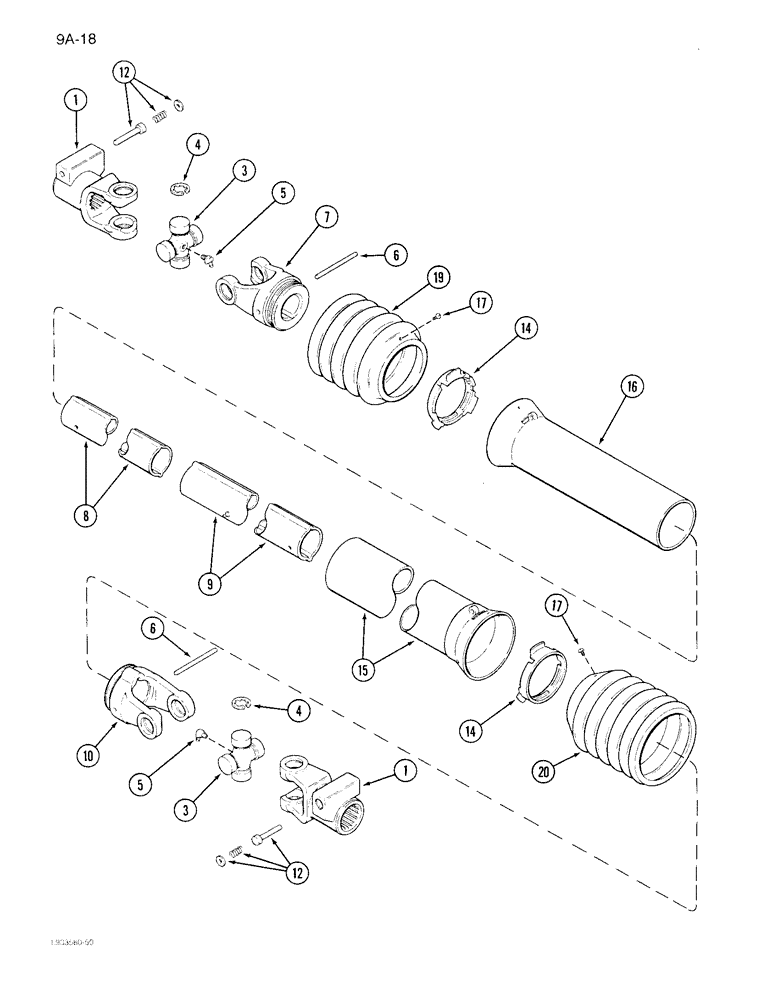

Запчасти Case IH 1844 (9A-018) - SHIELDED TELESCOPING SHAFT GEAR BOX TO GEAR BOX, 1844 COTTON PICKER (13) - PICKING SYSTEM

1984234C1

SHAFT

ASSEMBLY - cross drum drive

2шт.

1

1984240C1

COUPLING

YOKE - cross shaft splined

2шт.

1984235C1

SPIDER ASSY.

KIT - universal joint

2шт.

3

NSS

NOT SOLD SEPARAT

CROSS - universal joint with bearing (Order 1984235C1)

1шт.

4

NSS

NOT SOLD SEPARAT

SNAP RING - bearing lock (Order 1984235C1)

4шт.

5

NSS

NOT SOLD SEPARAT

FITTING - grease, 67-1/2 degree (Order 1984235C1)

1шт.

6

30868R1

LOCK PIN,M8 x 65 Slotted

PIN - spring, 8 x 65 mm

2шт.

7

1984241C1

COUPLING

YOKE - inner shaft

1шт.

8

1984243C1

TUBE,34.5 mm OD

- inner profile

1шт.

9

1988779C1

TUBE,41 mm OD, 375 mm Length

- outer profile

1шт.

10

1984242C1

COUPLING

YOKE - outer shaft

1шт.

12

1281458C1

KIT

- pin

2шт.

1984219C1

PACKAGE

KIT - grease fittings (Package of 10) (Not shown)

1шт.

1984257C1

PACKAGE

KIT - cross shaft shield (Not shown)

1шт.

14

1281450C1

RING

- bearing

2шт.

15

NSS

NOT SOLD SEPARAT

SHIELD - outer (Order 1984257C1)

1шт.

16

NSS

NOT SOLD SEPARAT

SHIELD - inner (Order 1984257C1)

1шт.

17

NSS

NOT SOLD SEPARAT

SCREW - cone shield (Order 1984257C1)

2шт.

NSS

NOT SOLD SEPARAT

DECAL - safety (Order 1984257C1) (Not shown)

1шт.

19

NSS

NOT SOLD SEPARAT

SHIELD - cone, 5 rib (Order 1984257C1)

1шт.

20

NSS

NOT SOLD SEPARAT

SHIELD - cone, 8 rib (Order 1984257C1)

1шт.
