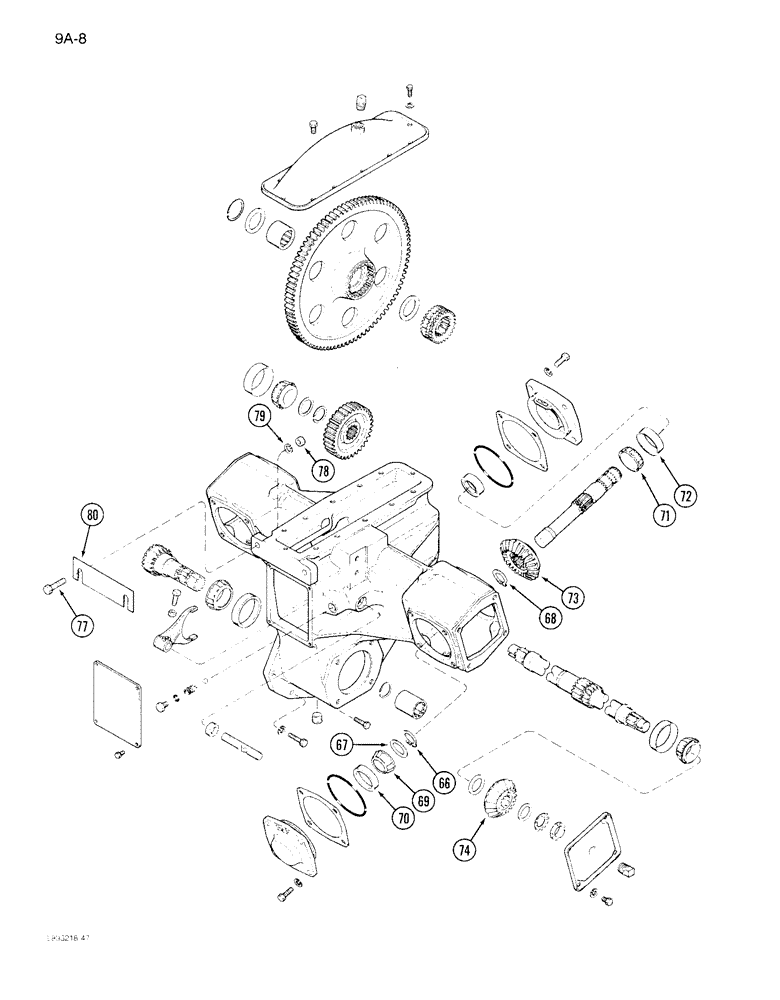

Запчасти Case IH 1844 (9A-008) - DRUM DRIVE (13) - PICKING SYSTEM

REF

INSTRUCTION

DRIVE ASSEMBLY - drum

1шт.

REF

INSTRUCTION

KIT - bevel gear and shim

1шт.

66

609053R1

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

67

223866C1

WASHER

- bearing

2шт.

68

21193R1

SNAP RING,#137. Ext

Ring, Snap, #137, Ext

2шт.

69

642955R91

BEARING ASSY,1.25" ID x 2.4409" OD x 0.75"

CONE - bearing, inner, 1-1/4 inch ID

2шт.

70

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

CUP - bearing, inner, 2-7/16 inch OD

2шт.

71

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE - bearing, outer, 1-3/8 inch ID

2шт.

72

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Outer, 2-9/16 inch OD

2шт.

92890C1

GEAR-SET

KIT - bevel gear

1шт.

73

NSS

NOT SOLD SEPARAT

GEAR - bevel, 24 teeth (Order 92890C1)

1шт.

74

NSS

NOT SOLD SEPARAT

GEAR - bevel, 19 teeth (Order 92890C1)

1шт.

77

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

78

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

79

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

WASHER - lock, 1/2 inch

2шт.

80

93301C1

SHIM

- housing, 0.005 inch

1шт.

80

93303C1

SHIM

- housing, 0.196 inch

1шт.
