(9E-38) - STEPS AND LADDERS, 1844 COTTON PICKER

Запчасти Case IH 1844 (9E-38) - STEPS AND LADDERS, 1844 COTTON PICKER (12) - CHASSIS

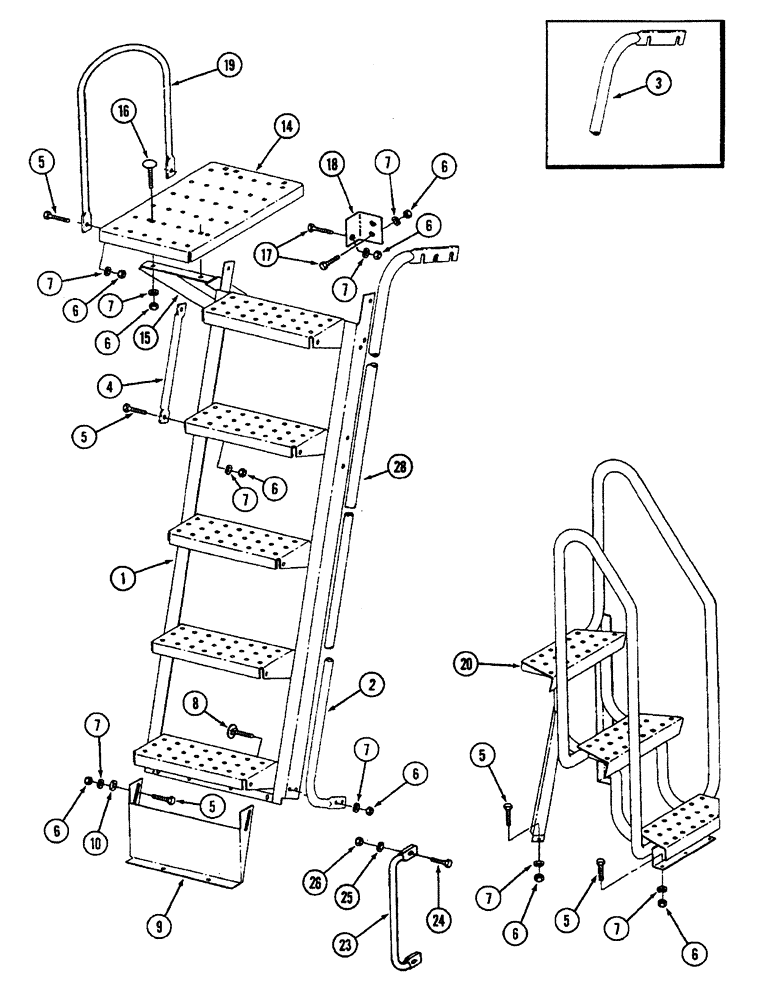

Схема запчастей Case IH 1844 - (9E-38) - STEPS AND LADDERS, 1844 COTTON PICKER (12) - CHASSIS
10
6
7
6
9
14
7
5
5
3
7
4
23
6
6
6
25
16
17
6
20
1
15
5
6
7
6
19
24
28
26
2
7
6
7
5
7
18
8
7
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1278706C5

LADDER

- operators

1шт.

2

1278711C1

RAIL

- ladder, inner

1шт.

3

1278712C2

RAIL

- ladder, outer (Prior to P.I.N. JJC0002560)

1шт.

4

1285388C1

SUPPORT

RAIL - hand

1шт.

5

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

14шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

14шт.

8

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

9

1266362C2

SUPPORT

- chute ladder

1шт.

10

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 1/16 inch) 3/8"

2шт.

14

1278720C2

PLATFORM

- operators

1шт.

15

1278724C1

SUPPORT

BRACE - platform

1шт.

16

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT - round head square neck, 3/8 NC x 1-1/4 inch

4шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

7шт.

18

1278726C1

SUPPORT

BRACKET - platform

1шт.

19

87138C1

RAIL ASSY.

RAIL - platform hand

1шт.

20

1278782C4

PLATFORM

- drum

1шт.

23

1321545C1

HANDLE

- drum grab

1шт.

24

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

26

120376

NUT,5/16"-18, G5

2шт.

28

1982289C1

GRAB RAIL

RAIL - ladder, outer (P.I.N. JJC0002560 and after)

1шт.
