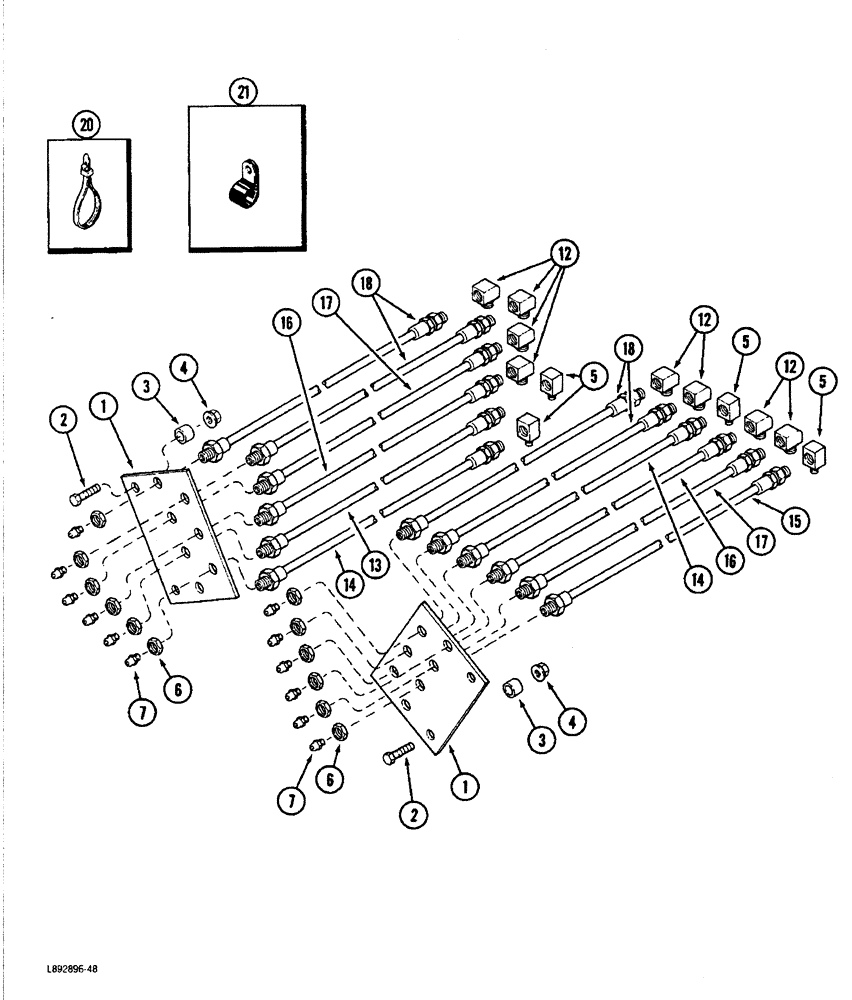

Запчасти Case IH 1844 (9E-06) - CHASSIS GREASE SYSTEM, 1844 COTTON PICKER (12) - CHASSIS

1

1339007C1

SUPPORT

- grease fitting

2шт.

2

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

2

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

3

3068039R1

SPACER

- tube

2шт.

4

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

4шт.

5

21340R1

ADAPTER,90 Degree, 1/4"-1/8 NPTF

FITTING - grease, 90 degree

4шт.

6

F53473

LOCK NUT,1/8-27 NPSM

- special, 1/8 inch PT

12шт.

7

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 1/4 inch straight

12шт.

12

9409931

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

- 90 degree, 1/8 inch PT

8шт.

13

1339231C1

TUBE,737 mm Length

HOSE - grease, 29, inch long

1шт.

14

1339006C1

TUBE,914 mm L

HOSE - grease, 36 inch long

2шт.

15

1339005C1

TUBE,1321 mm L

HOSE - grease, 52 inch long

1шт.

16

1339004C1

HOSE,3.17mm ID x 1778mm L

- grease, 70 inch long

2шт.

17

1339003C1

TUBE,2032 mm L

HOSE - grease, 80 inch long

2шт.

18

1339002C1

TUBE,2388 mm L

HOSE - grease, 94 inch long

4шт.

20

289862C1

CABLE TIE,3/16" x 7"

STRAP - retaining

16шт.

21

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - retaining

3шт.
