Запчасти Case IH 1844 (9D-40) - SUNVISOR (10) - CAB & AIR CONDITIONING

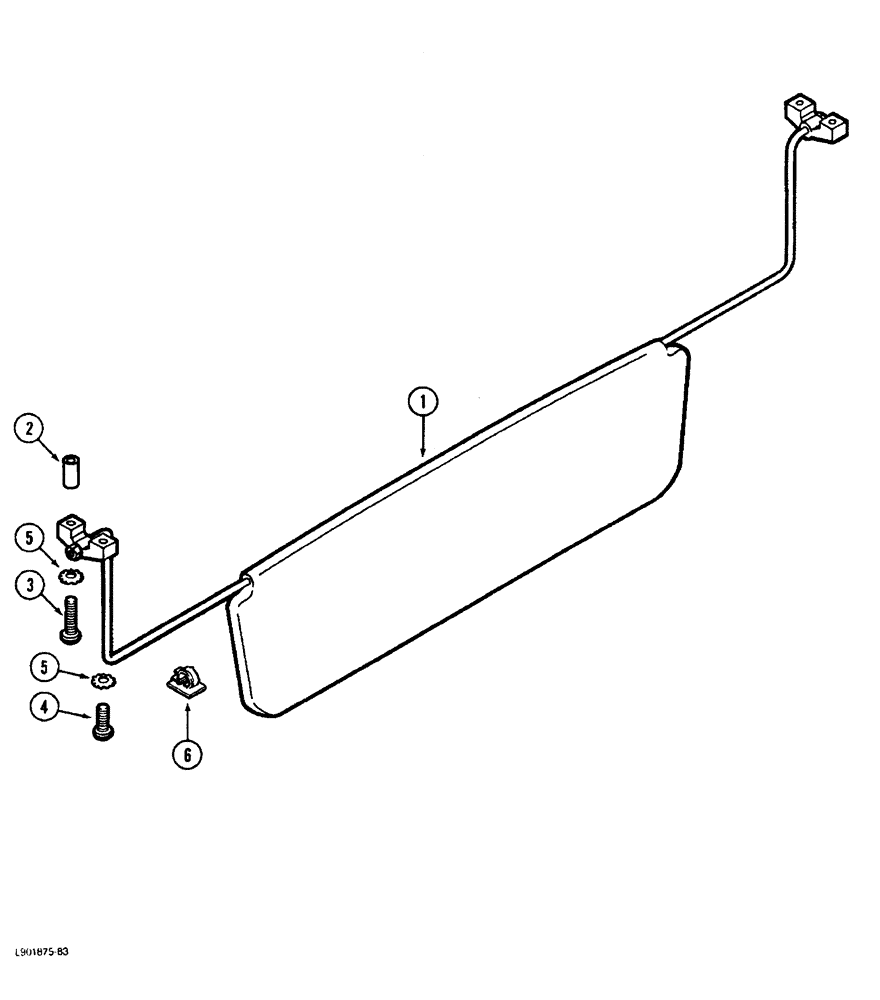

Схема запчастей Case IH 1844 - (9D-40) - SUNVISOR (10) - CAB & AIR CONDITIONING
5
5
2
4
1
6
3

Артикул

Название

Примечание

Количество

1

1970227C1

SUNSHADE

VISOR - sun

1шт.

2

1329974C1

SPACER

- sunvisor, 1/4 x 1 inch

2шт.

3

1979389C1

SELF-TAP SCREW

- oval head cross recess tapping, No. 10-16 x 1-3/4 inch

2шт.

4

1971367C2

SELF-TAP SCREW,Cross Oval Hd, #10-16 x 3/4"

SCREW - oval head cross recess tapping, NO. 10-16 x 3/4 inch

2шт.

5

1329968C1

WASHER

- No. 10 oval head finishing

4шт.

6

169850C1

CLIP

- harness (plastic)

6шт.

Выбрано товаров: 6
