Запчасти Case IH 1844 (9D-38) - MIRROR (10) - CAB & AIR CONDITIONING

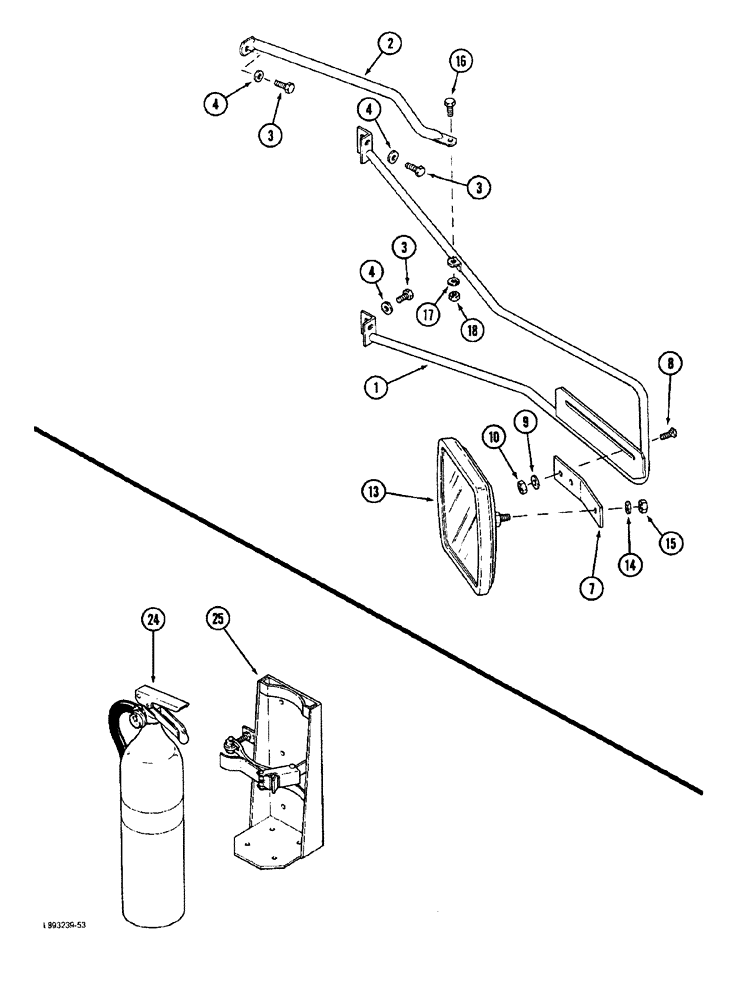

Схема запчастей Case IH 1844 - (9D-38) - MIRROR (10) - CAB & AIR CONDITIONING
13
2
16
10
24
4
9
18
7
15
17
4
3
3
4
3
14
1
25
8

Артикул

Название

Примечание

Количество

1

1979677C1

SUPPORT

- mirror, left

1шт.

1

1979678C1

SUPPORT

- mirror, right

1шт.

2

1281913C1

TUBE,19.05 mm OD, 444, 303.5 mm Length

SUPPORT - mirror brace, left

1шт.

2

1979962C1

TUBE,19.05 mm OD

SUPPORT - mirror brace, right

1шт.

3

25493R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, Grade 8

10шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

10шт.

7

1285438C1

ANGLE BAR

BRACKET - mirror

2шт.

8

12663R1

BOLT,Short NK, 3/8"-16 x 1", G2, Full Thd

- round head square neck, 3/8 x 1 inch, Grade 1

4шт.

9

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- hardened flat, 13/32 x 13/16 x 57/64 inch

4шт.

10

25522R1

NUT,3/8"-16, G8

- hex, 3/8 inch, Grade 8

4шт.

13

1283403C1

MIRROR

ASSEMBLY - cab

2шт.

14

933965R1

LOCK WASHER,M10

2шт.

15

30168R1

NUT,M10, Cl 10

- hex 10 mm, Grade 10

2шт.

16

24839R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

25522R1

NUT,3/8"-16, G8

- hex, 3/8 inch, Grade 8

2шт.

24

549975C91

FIRE EXTINGUISHER

EXTINGUISHER - fire (Parts accessory)

1шт.

25

549978C91

BRACKET

- extinguisher mounting (Parts accessory), fire

1шт.

Выбрано товаров: 18
