Запчасти Case IH 1844 (9D-34) - COMPRESSOR MOUNTING AND PULLEY (10) - CAB & AIR CONDITIONING

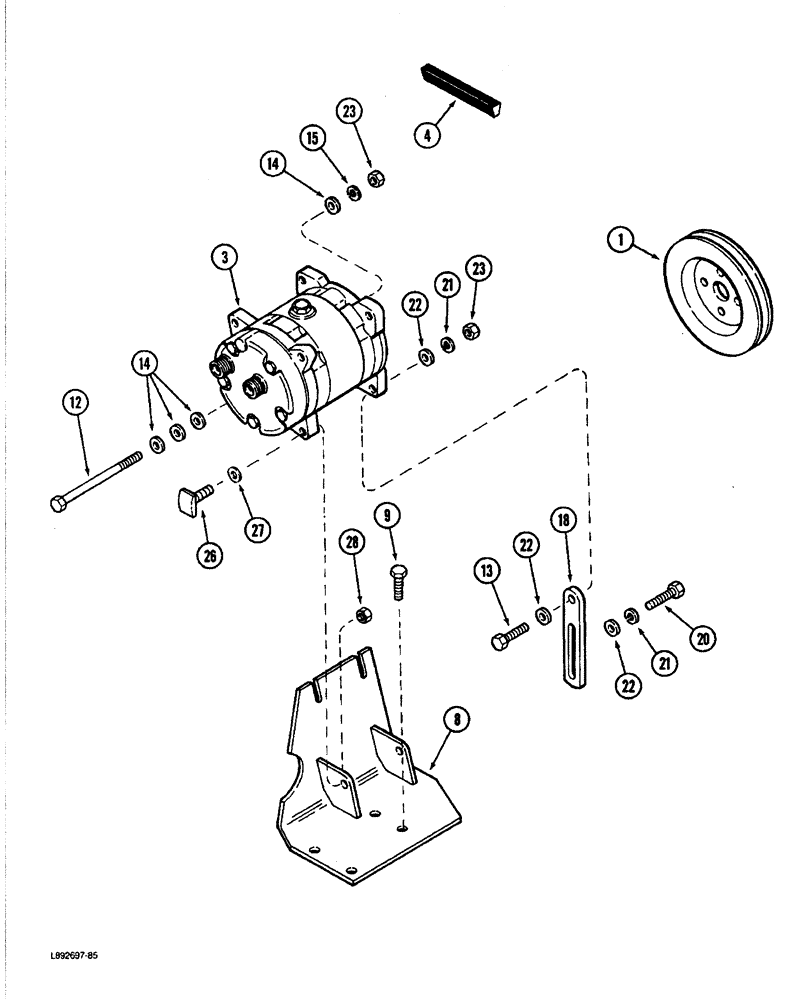

Схема запчастей Case IH 1844 - (9D-34) - COMPRESSOR MOUNTING AND PULLEY (10) - CAB & AIR CONDITIONING
22
28
3
8
14
15
23
18
26
22
1
13
14
22
12
4
9
21
20
21
27
23

Артикул

Название

Примечание

Количество

1

A184596

PULLEY

- compressor drive (1822 Cotton Picker)

1шт.

1

84757C1

PULLEY

- compressor drive (1844 Cotton Picker)

1шт.

3

REF

INSTRUCTION

COMPRESSOR - air conditioning (See Page 9D-37)

1шт.

4

1250587C1

V-BELT,0.50" W

Drive, Compressor 0.50" W

1шт.

8

A189290

SUPPORT

- compressor mounting (1822 Cotton Picker)

1шт.

8

1979296C1

SUPPORT ASSY.

SUPPORT - compressor mounting (1844 Cotton Picker)

1шт.

9

1979298C1

BOLT (SPREADER),3/8" - 16 x 117mm

BOLT - hex special

3шт.

12

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

- hex, 10 mm - 130 mm

1шт.

13

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

5шт.

14

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

15

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

4шт.

18

84716C1

SUPPORT

STRAP - adjusting, compressor

1шт.

20

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

21

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

3шт.

22

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

23

825-1110

NUT,M10, Cl 8

- hex, 10 mm - 1.50

2шт.

26

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

- hex special

2шт.

27

142619H

WASHER

- flat, 13/32 x 3/4 x 7/64 inch

2шт.

28

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

2шт.

Выбрано товаров: 19
