Запчасти Case IH 1844 (9D-32) - HEATER AND AIR CONDITIONING CAB CONNECTIONS (10) - CAB & AIR CONDITIONING

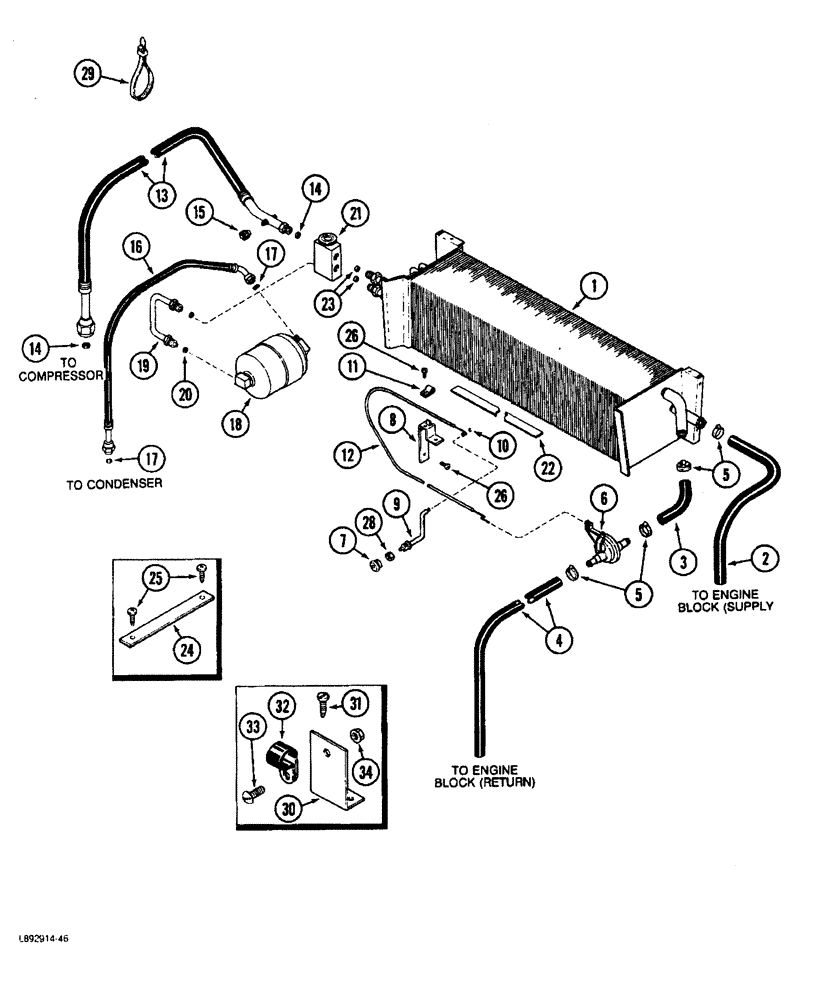

Схема запчастей Case IH 1844 - (9D-32) - HEATER AND AIR CONDITIONING CAB CONNECTIONS (10) - CAB & AIR CONDITIONING
29
17
16
15
22
25
7
3
5
6
4
5
33
9
34
26
20
12
21
8
13
14
2
10
17
23
14
11
28
26
1
24
19
30
18
31
32

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CORE - heater and evaporator (With expansion valve) (See Page 9D-27)

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - heater to chassis junction, 130 inch (Order 1255859C1, Serial Range: cut-length)

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - heater to valve (return) 5 inch (Order 117724C1, Serial Range: cut-length)

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - heater to valve to chassis junction (return) 115 inch (Order 117724C1, Serial Range: cut-length)

1шт.

5

313318R1

HOSE CLAMP,#14, 7/8", Spring

CLAMP - No. 14, Type E spring wire

4шт.

6

1331087C1

HEATER VALVE

VALVE - heater control (Replaces 3234102R92)

1шт.

7

111282C1

KNOB

- heater control

1шт.

8

1283445C3

SUPPORT

- cable, heater valve control

1шт.

9

1281809C1

ARM

- heater control

1шт.

10

379310R1

SNAP RING,#25, .207" Dia, E-Type

E-RING - external retaining, 13/64 inch

1шт.

11

1954626C1

SPRING CLIP

CLIP - spring, cable retainer (Replaces 1283334C1)

1шт.

12

1343953C1

CABLE

- control, heater valve (Replaces 1276220;C3)

1шт.

13

1276164C1

HOSE

- evaporator discharge

1шт.

14

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

15

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - seal

1шт.

16

1276163C2

HOSE

-, Serial Range: drier-cab

1шт.

17

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

18

REF

INSTRUCTION

RECEIVER-DRIER - (See Page 9D-27)

1шт.

19

1250438C1

TUBE ASSY.

TUBE - receiver-drier

1шт.

20

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

21

98370C2

VALVE

- expansion

1шт.

22

NSS

NOT SOLD SEPARAT

TAPE - insulation, 96 inch long (Order 118468C1, Serial Range: cut-length)

1шт.

23

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

23

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

24

1321363C2

STRAP

- retaining, hose

2шт.

25

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

4шт.

26

260-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/8 inch

3шт.

28

109311H

JAM NUT

- hex special, 7/16-28 inch

1шт.

29

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch long

1шт.

30

98158C1

BRACKET

- heater valve support

1шт.

31

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

2шт.

32

27291R1

CLAMP

- hose retaining

1шт.

33

116494C1

SCREW,Sl Serr Truss Hd, 3/8" - 16 x 1/2"

1шт.

34

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

Выбрано товаров: 34
