Запчасти Case IH 1844 (9D-30) - HEATER AND AIR CONDITIONING CHASSIS CONNECTIONS (10) - CAB & AIR CONDITIONING

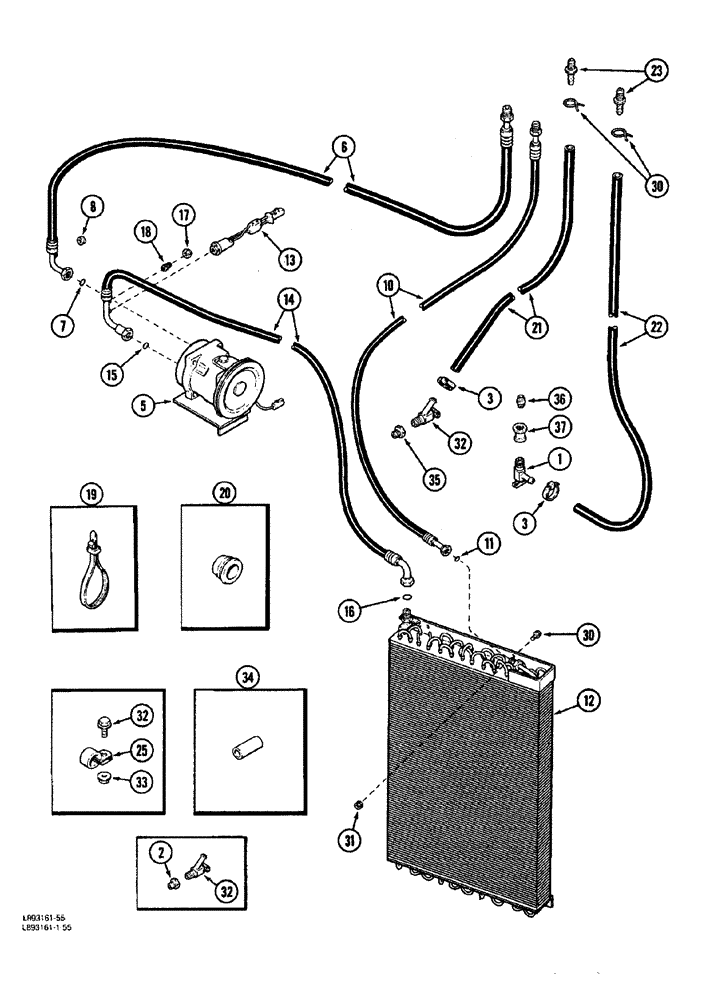

Схема запчастей Case IH 1844 - (9D-30) - HEATER AND AIR CONDITIONING CHASSIS CONNECTIONS (10) - CAB & AIR CONDITIONING
37
15
31
25
30
18
7
21
2
20
30
22
16
11
13
14
32
6
19
32
10
3
8
17
23
5
36
34
32
1
33
3
35
12

Артикул

Название

Примечание

Количество

1

301803R1

SHUT-OFF VALVE

VALVE - heater (1822 Cotton Picker)

2шт.

1

941980R91

LOCK VALVE

VALVE - heater, 45 degree (1844 Cotton Picker)

1шт.

2

175778H1

ADAPTER

- 1/2 to 3/8 inch

1шт.

3

313318R1

HOSE CLAMP,#14, 7/8", Spring

CLAMP - No. 14, Type E spring wire

4шт.

5

REF

INSTRUCTION

COMPRESSOR ASSEMBLY - air conditioning (See Page 9D-37)

1шт.

6

1982311C2

LARGE HOSE

HOSE -, Serial Range: compressor-cab

1шт.

7

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

10

1321292C4

HOSE

-, Serial Range: condenser-cab

1шт.

11

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

12

183901C2

CONDENSER

COIL - air conditioner condenser

1шт.

13

92038C1

SWITCH, A/C HIGH PRE

SWITCH - air conditioning, high pressure

1шт.

14

1977857C3

HOSE

-, Serial Range: compressor-condenser

1шт.

ref # 15 o-ring 371544r1 hch

1шт.

16

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

18

1250593C1

FITTING

- male, 1/4 inch

2шт.

19

291207C1

CLAMP

STRAP - retaining, 4 inch maximum bundle

1шт.

19

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, , Retaining, 3 inch maximum bundle .098" x 8"

1шт.

20

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- hose, 3/4 inch ID

2шт.

20

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

- heater hose, 7/8 inch ID

2шт.

20

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- hose, 5/8 inch ID

2шт.

21

NSS

NOT SOLD SEPARAT

HOSE - heater, 153 inch long (If equipped) (Order R54970, Serial Range: cut-length)

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE - heater, 130 inch long (Order R54970, Serial Range: cut-length)

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - heater, 201 inch long (If equipped) (Order 97252C1, Serial Range: cut-length)

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - heater, 177 inch long (Order 97252C1, Serial Range: cut-length)

1шт.

23

1301342C1

FITTING

CONNECTOR - heater hose inlet fitting

2шт.

25

299269C91

CLAMP

CLIP - hose retaining (Heater only)

1шт.

30

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

BOLT - hex flanged lock, 1/4 NC x 1/2 inch

4шт.

31

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flanged lock, 1/4 inch NC

4шт.

32

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

1шт.

33

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

34

150596C1

SPACER,1/2" Tube x 1 3/16"

- 21/64 x 1/2 x 1-13/64 inch

2шт.

35

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

Bushing Hex, 3/4" x 3/8" NPT

1шт.

36

221-1187

NIPPLE, LUBE

NIPPLE - 1/2 x 1-1/2 inch

1шт.

37

221-1349

COUPLING,Pipe, 1/2" x 3/8" NPT

COUPLER - reducer, 1/2 PT to 3/8 inch

1шт.

Выбрано товаров: 34
