Запчасти Case IH 1844 (9D-18) - CAB DOOR UPPER HANDLE, 1844 COTTON PICKER (10) - CAB & AIR CONDITIONING

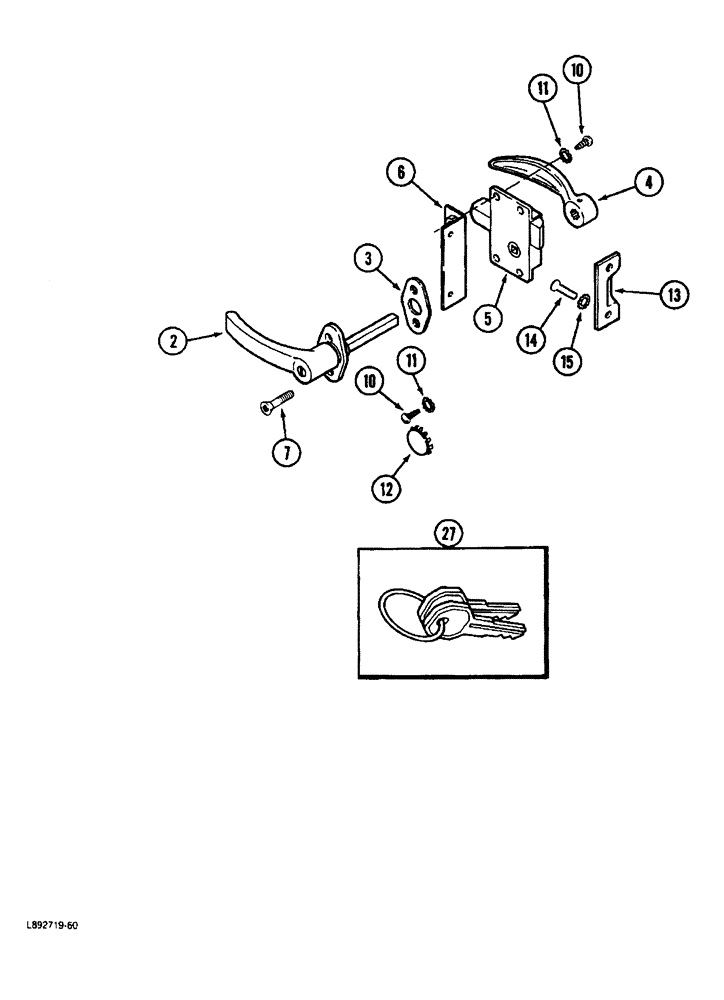

Схема запчастей Case IH 1844 - (9D-18) - CAB DOOR UPPER HANDLE, 1844 COTTON PICKER (10) - CAB & AIR CONDITIONING
13
27
12
10
11
6
3
5
14
2
10
4
7
11
15

Артикул

Название

Примечание

Количество

1329468C1

HANDLE

ASSEMBLY - door upper

1шт.

2

NSS

NOT SOLD SEPARAT

HANDLE - outside door lock

1шт.

3

NSS

NOT SOLD SEPARAT

GASKET - outside handle

1шт.

4

NSS

NOT SOLD SEPARAT

HANDLE - inside

1шт.

5

NSS

NOT SOLD SEPARAT

LATCH - door

1шт.

6

1330184C1

BRACKET

ASSEMBLY - latch support

1шт.

7

489-11012

SCREW,Cross Oval Hd, #10"-32 x 3/4"

- machine, No. 10-32 x 3/4 inch

2шт.

10

261-63512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10 NF x 3/4 inch

8шт.

11

393-41020

LOCK WASHER,Ext Tooth, #10

WASHER - external lock, No. 10

8шт.

12

28388R1

HOLE PLUG BUTTON,27/32"

PLUG - button, 27/32 inch hole (Lower handle hole)

1шт.

13

392801R3

LATCH

STRIKER - door catch

1шт.

14

157391

SCREW,Cross Oval Hd, 1/4"-20 x 1/2"

- oval head cross recess, 1/4 NC x 1 inch

2шт.

15

138604

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER - external lock, 1/4 inch

2шт.

27

1970178C1

SET OF 2 KEYS

KEY - cab (Set of 2)

1шт.

Выбрано товаров: 14
