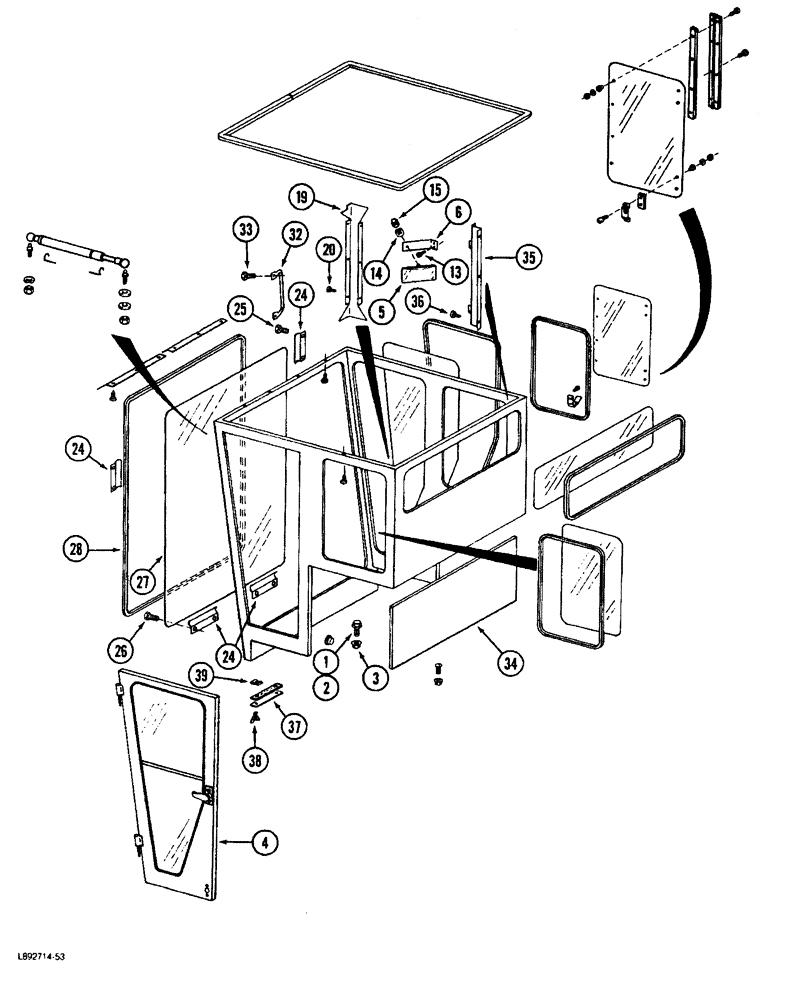

Запчасти Case IH 1844 (9D-10) - CAB FRAME (10) - CAB & AIR CONDITIONING

1323784C1

CAB

ASSEMBLY - operators, with heater and air conditioning

1шт.

1

1327763C1

SCREW,Hex Wshr Hd, 3/8" - 16 x 3/4"

- hex washer head, 3/8 NC x 3/4 inch

8шт.

2

1327764C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 1 1/4"

- hex washer head, 3/8 NC x 1-1/4 inch

8шт.

3

1327765C1

LOCK NUT

- hex flanged lock, 3/8 inch NC

18шт.

4

REF

INSTRUCTION

DOOR ASSEMBLY - cab (See page 9D-15)

1шт.

5

66518C1

MIRROR

- interior rear view

1шт.

6

1329283C1

ANGLE BAR

BRACKET - mirror mounting

1шт.

13

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross slot, polyseal 1/2 inch

2шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

15

25520R1

NUT,5/16"-18, G8

- hex, 5/16 inch NC

1шт.

19

1987023C1

COVER

SUPPORT ASSEMBLY - hose cover, left (Replaces 1276305C1)

1шт.

20

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - pan head cross recess tapping, no. 10 x 3/8 inch

6шт.

24

196742C3

LARGE PLATE

SUPPORT - windshield retainer

7шт.

25

313-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

2шт.

26

313-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

27

198242C1

GLASS

- cab windshield

1шт.

28

NSS

NOT SOLD SEPARAT

STRIP - windshield glass, 225 inch long (Order 198131C2, Serial Range: cut-length)

1шт.

32

1321545C1

HANDLE

- cab

1шт.

33

313-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, grade 8

2шт.

34

1321286C2

PANEL

- rear, acoustical

1шт.

35

1987173C1

PANEL ASSY.

SUPPORT - filler, right (Replaces 1276309C1)

1шт.

36

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - pan head cross recess tapping, no. 10 x 3/8 inch

6шт.

37

1301129C1

DOOR

- clean out

1шт.

38

166667C1

THUMB SCREW,1/4" - 20 x 0.62"

- wing, clean out cover

2шт.

39

1301128C2

SPRING NUT,U, 1/4" - 20 x 23.37mm, Gr 5

- thumb screw

2шт.
