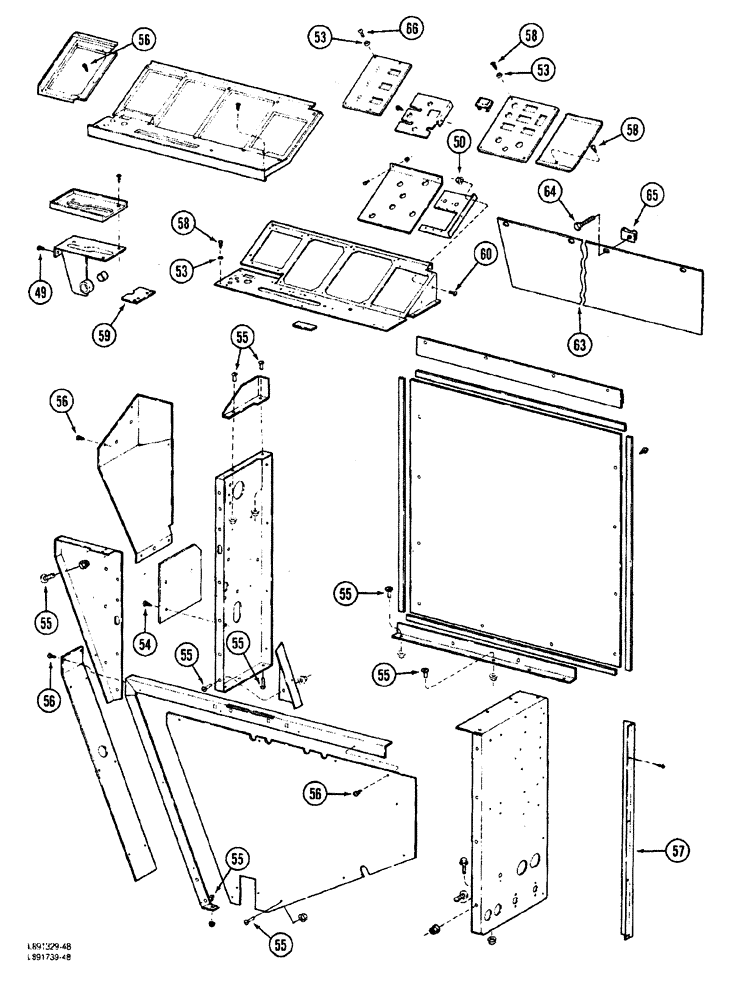

Запчасти Case IH 1844 (9D-06) - RIGHT CONSOLE (10) - CAB & AIR CONDITIONING

49

159947

HYD CONNECTOR

- pan head cross recess tap, 1/4 NC x 1/2 inch

4шт.

50

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flanged lock, 1/4 inch NC

2шт.

53

1329968C1

WASHER

- oval head, No. 10

8шт.

54

27128R1

SELF-TAP SCREW,Pan, 1/4" - 20 x 1/2"

SCREW - pan head cross recess tap, 1/4 NC x 1/2 inch

3шт.

55

1330152C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 3/4"

13шт.

56

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross slot, polyseal 1/2 inch

24шт.

57

1285451C1

ANGLE BAR

BRACKET - right corner

1шт.

58

26304R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - pan head cross recess tap, No. 10-16 x 3/4 inch

4шт.

59

1285462C1

LARGE PLATE

PLATE - propulsion restrictor

1шт.

60

1330207C1

SCREW,Sl Serr Truss Hd, 1/4" - 20 x 1/2"

- slotted truss, 1/4 NC x 1/2 inch

2шт.

63

1345276C1

LARGE PLATE

COVER - cab filler trim, lower right (Replaces 183225C3)

1шт.

64

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

- hex, 5/16 NC x 1 inch

5шт.

65

403276R1

NUT

- speed

5шт.

66

27073R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - oval head cross recess tap, No. 10-16

4шт.
