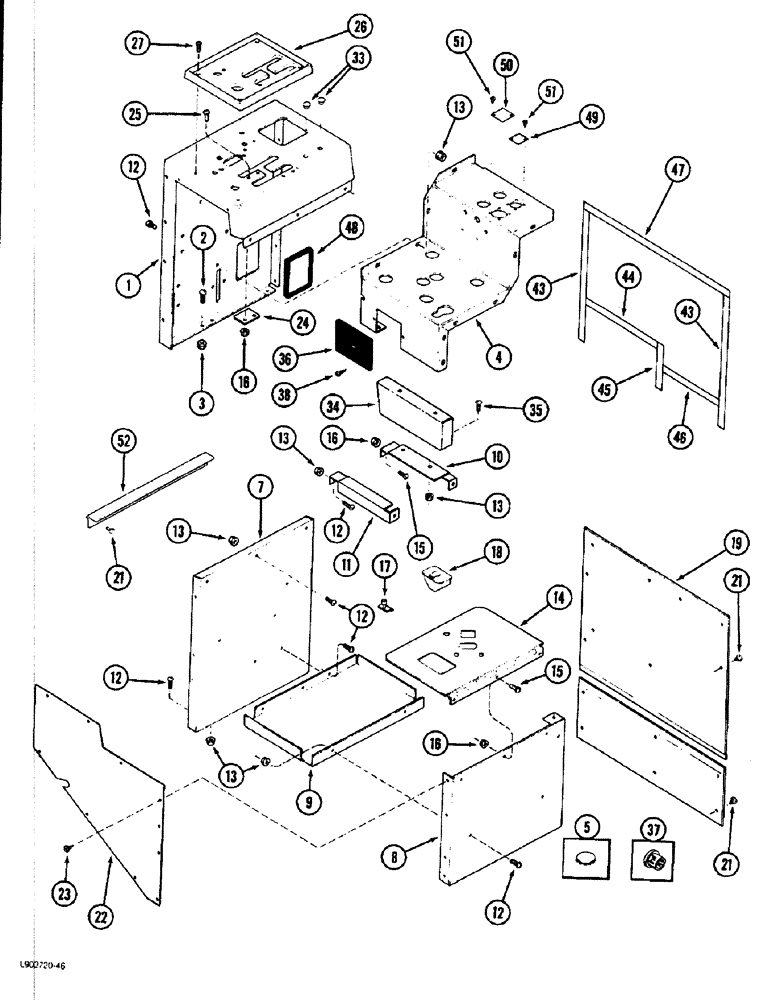

Запчасти Case IH 1844 (9D-02) - LEFT CONSOLE (10) - CAB & AIR CONDITIONING

1

193065C8

COVER

SUPPORT - left console, rear

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss, 3/8 NC x 3/4 inch

4шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch

4шт.

4

1321719C3

SUPPORT

- left console lower

1шт.

5

432535

HOLE PLUG BUTTON,13/32"

PLUG - 13/32 inch hole diameter

2шт.

5

432386

PLUG

- 3/16 inch hole diameter

3шт.

5

192280

HOLE PLUG BUTTON,1 1/4"

PLUG - 1-1/4 inch diameter

1шт.

7

193008C4

SUPPORT

COVER - manual box rear

1шт.

8

193009C3

SUPPORT

COVER - left console front

1шт.

9

193010C2

SUPPORT

- manual box bottom

1шт.

10

193011C1

SUPPORT

- box cover left

1шт.

11

193012C1

SUPPORT

- manual box cover right

1шт.

12

1330152C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 3/4"

26шт.

13

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch

28шт.

14

1285219C1

COVER ASSY

COVER ASSEMBLY - manual box

1шт.

15

1330207C1

SCREW,Sl Serr Truss Hd, 1/4" - 20 x 1/2"

- 1/4 NC x 1/2 inch

3шт.

16

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch

5шт.

17

1285214C1

LOCK

LATCH - manual box cover

1шт.

18

111396C1

ASH TRAY

TRAY - ash

1шт.

19

1338226C1

SHEET

PLATE - left console outer cover

1шт.

20

1278738C1

COVER

- left console, lower outer

1шт.

21

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - hex washer head tap, 1/4 x 1/2 inch

14шт.

22

193056C1

PLATE

- left console inner, cover

1шт.

23

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross slot, polyseal 1/2 inch

8шт.

24

195239C2

BAR

- H pattern filler plate

1шт.

25

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss, 1/4 NC x 1/2 inch

2шт.

26

1285417C1

COVER

- left console, top

1шт.

27

27204R1

SELF-TAP SCREW

- oval head cross recess, No. 10-16 x 3/4 inch

4шт.

33

353-404

PLUG,Dome, .500" hole, Nylon

Left console Dome, .500" hole, Nylon

2шт.

34

193013C1

SUPPORT

- operator cab side left

1шт.

35

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 x 1/2 inch

2шт.

36

1345010C1

GROMMET

INSULATOR - left console lower (Replaces 1327577C2)

1шт.

37

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- 3/8 inch ID

1шт.

37

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- 3/4 inch ID

2шт.

37

198820C1

GROMMET

- plug, lower console support

1шт.

38

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - tapping, round x-recess, No. 10-16 x 3/4 inch

2шт.

43

NSS

NOT SOLD SEPARAT

STRIP - console cover, 18-5/16 inch long (See Note)

1шт.

44

NSS

NOT SOLD SEPARAT

STRIP - console cover, 11-13/16 inch long (See Note)

1шт.

45

NSS

NOT SOLD SEPARAT

STRIP - console cover, 7 inch long (See Note)

1шт.

46

NSS

NOT SOLD SEPARAT

STRIP - console cover, 9 inch long (See Note)

1шт.

47

NSS

NOT SOLD SEPARAT

STRIP - console cover, 23 inch long (See Note)

1шт.

48

NSS

NOT SOLD SEPARAT

STRIP - console cover, 16-5/16 inch long (See Note)

1шт.

49

1330179C1

PLATE

- cover

1шт.

50

1330180C1

LARGE PLATE

PLATE - cover

1шт.

51

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - pan head cross slotted, No. 10-24 x 3/8 inch

4шт.

51

161421C1

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW - special, No. 8-18 x 1/2 inch

4шт.

52

1338219C1

ANGLE

BRACKET - cover, left

1шт.
