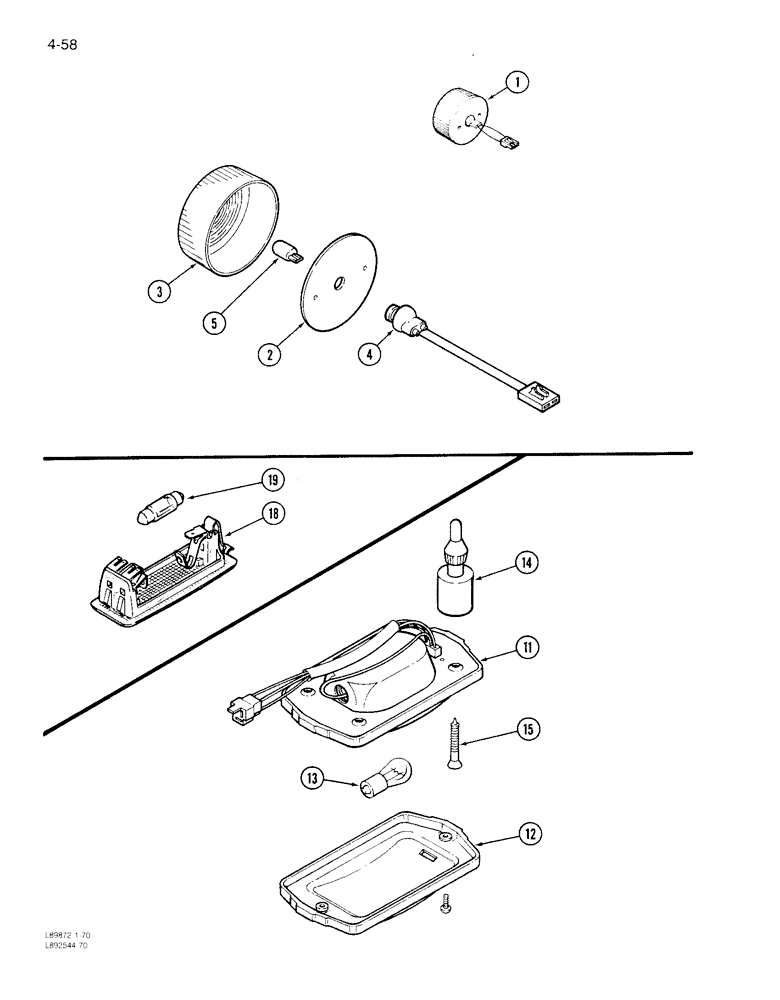

Запчасти Case IH 1844 (4-58) - TAIL LIGHT ASSEMBLY, DOME LIGHT ASSEMBLY (06) - ELECTRICAL SYSTEMS

1

131183C91

STOP LIGHT

LIGHT ASSEMBLY - tail

2шт.

2

NSS

NOT SOLD SEPARAT

BASE - lamp

1шт.

3

NSS

NOT SOLD SEPARAT

LENS - lamp

1шт.

4

107329C1

WIRE HARNESS

SOCKET AND CABLE ASSEMBLY - bulb

1шт.

5

26617R1

BULB,C2F, #168, 14V

- lamp (No. 168)

1шт.

11

245659C91

LAMP

LIGHT ASSEMBLY - dome

1шт.

12

245679C1

LENS

- dome light

1шт.

13

142457

BULB,C6, #1142, 12.8V

- No. 1142, dome light, assembly

1шт.

14

117995C1

PACKAGE

FASTENER KIT - dome light (Contains 5 fasteners), assembly

1шт.

15

27071R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 1/2"

SCREW - tapping, No. 8-18 x 1-1/2 inch, dome light, assembly

4шт.

18

1983391C1

LAMP,12V, 10W

ASSEMBLY - dome, light

1шт.

19

3050958R1

BULB,K, 12V, 10W

- light, dome. assembly K, 12V, 10W

1шт.
