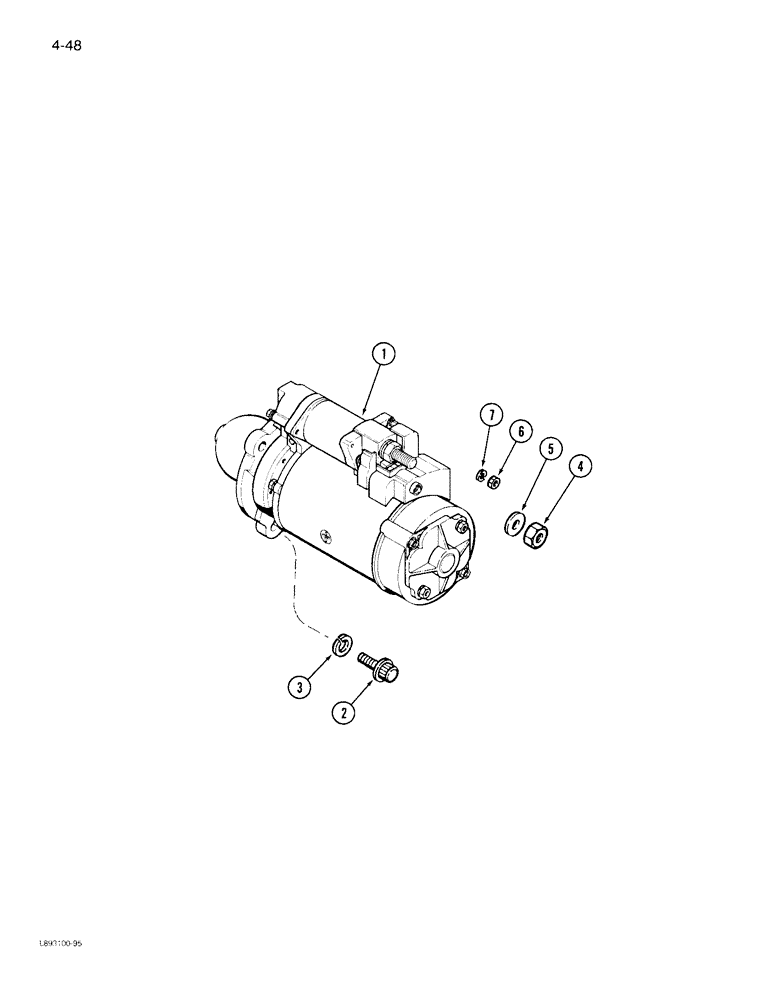

Запчасти Case IH 1844 (4-48) - STARTER MOUNTING (06) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See page 4-53)

1шт.

2

31242R1

12 PT SCREW,M12 x 35mm, Cl 12.9

BOLT - 12 point flange, 12 x 35 mm

3шт.

3

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

3шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

5

25710R1

WASHER

- hardened flat, 17/32 x 1-1/16 x 5/64 inch

1шт.

6

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.
