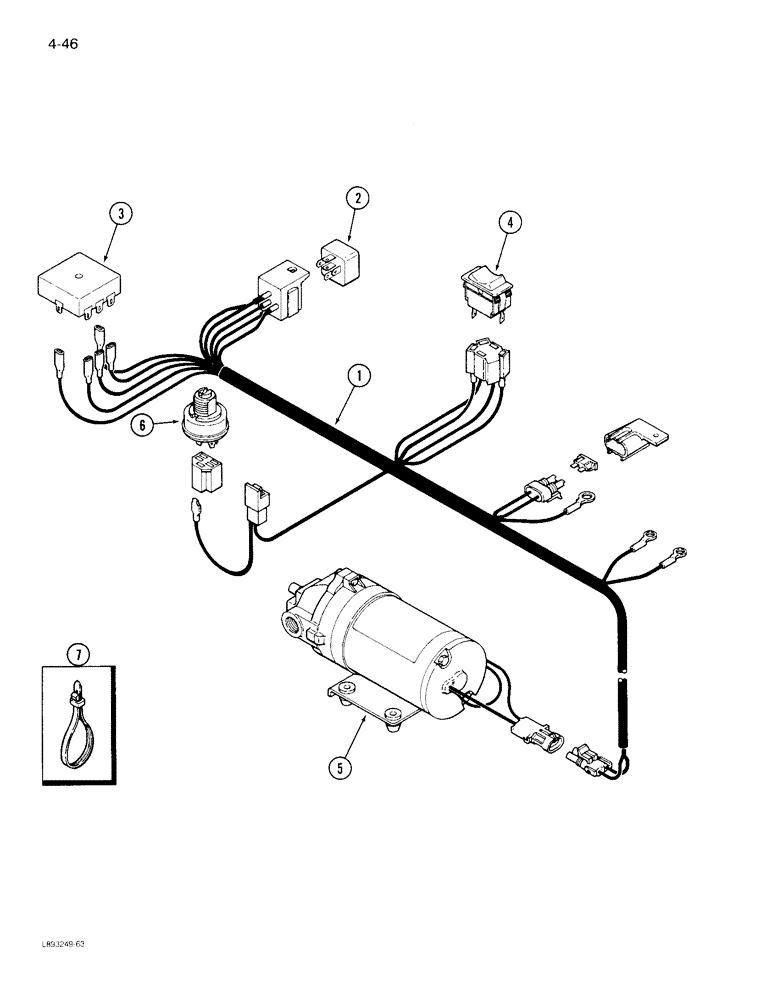

Запчасти Case IH 1844 (4-46) - DRUM CHAIN OILER HARNESS (06) - ELECTRICAL SYSTEMS

1

1964961C1

HARNESS

ASSEMBLY - oiler, drum chain

1шт.

2

146461C1

RELAY

- oiler, electric

1шт.

3

1983205C1

SWITCH

- timer pump, 40 second (1822 Cotton Picker)

1шт.

3

1983206C1

SWITCH

- timer pump, 80 second (1844 Cotton Picker)

1шт.

4

1983204C1

SWITCH

- rocker, oiler

1шт.

5

REF

INSTRUCTION

PUMP ASSEMBLY - oiler, drum chain (See page 9A-127)

1шт.

6

1252476C1

SWITCH

ASSEMBLY - key starting (with key, See page 4-13)

1шт.

7

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

1шт.
