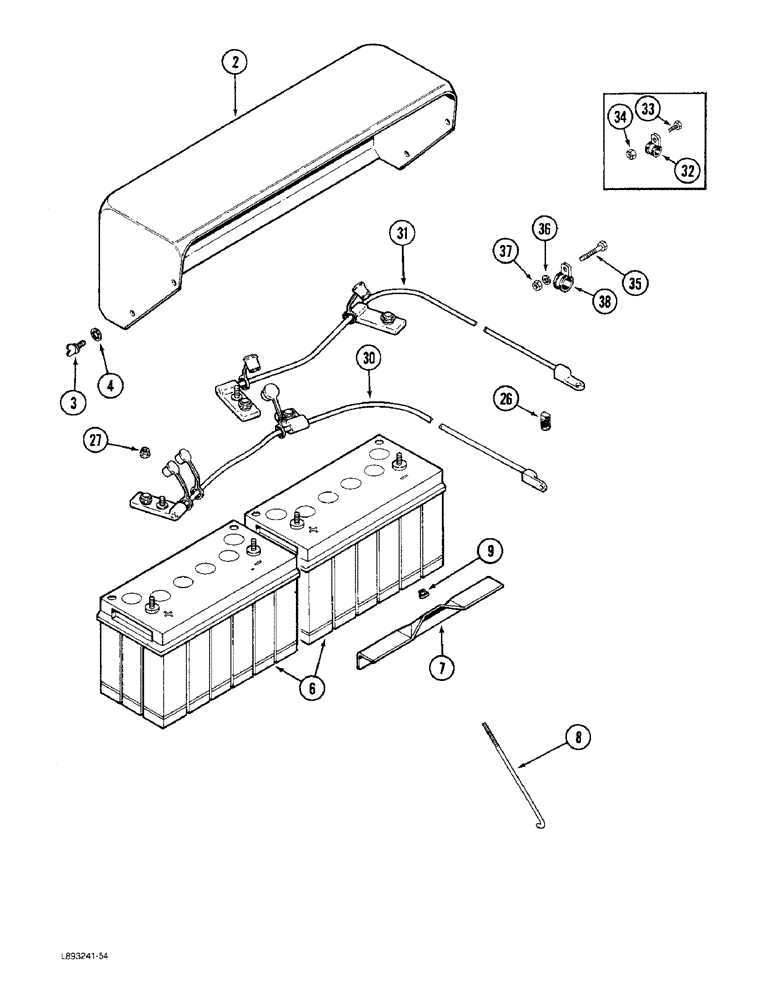

Запчасти Case IH 1844 (4-40) - BATTERY BOX, BATTERY AND CABLES (06) - ELECTRICAL SYSTEMS

2

1338635C2

LID

COVER - battery box

1шт.

3

183-135

SCREW

- shoulder wing, 3/8 NC x 3/4 inch

4шт.

4

193-67

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

6

A186008

DRY BATTERY

- 12 volt

2шт.

7

A162337

CLAMP

- hold down, battery

1шт.

8

A147915

BOLT

- hook, clamp

1шт.

9

131-923

NUT,Flg, 1/4"-20.G5

- hex flange, 1/4 inch NC

1шт.

21

492-11038

LOCK WASHER,3/8"

2шт.

22

120377

NUT,3/8" - 16, Gr 5

2шт.

26

245739C1

BUSHING,3/8"-16, 19mm OD x 31.75mm W

- jump start

1шт.

27

476074C1

NUT

- hex special, 3/8 inch PT

5шт.

30

1983252C1

CABLE

ASSEMBLY - battery to starter (Prior to P.I.N. JJC0012910) (1822) and JJC0002560 (1844)

1шт.

30

1983573C1

HARNESS

CABLE ASSEMBLY - battery to starter (P.I.N. JJC0012910 (1822) JJC0002560 (1844) and after)

1шт.

31

1983298C1

CABLE

ASSEMBLY - battery to ground (Prior to P.I.N. JJC0012910 (1822) and JJC0002560 (1844)

1шт.

31

1983574C1

HARNESS

CABLE ASSEMBLY - battery to ground (P.I.N. JJC0012910 (1822) JJC0002560 (1844) and after)

1шт.

32

S77322

CLAMP

- harness, closed, 12.7 mm ID (Replaces 446075R91)

2шт.

33

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

34

120376

NUT,5/16"-18, G5

2шт.

35

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

36

492-11038

LOCK WASHER,3/8"

1шт.

37

120377

NUT,3/8" - 16, Gr 5

1шт.

38

299264C91

CLAMP

- cable retaining

1шт.
