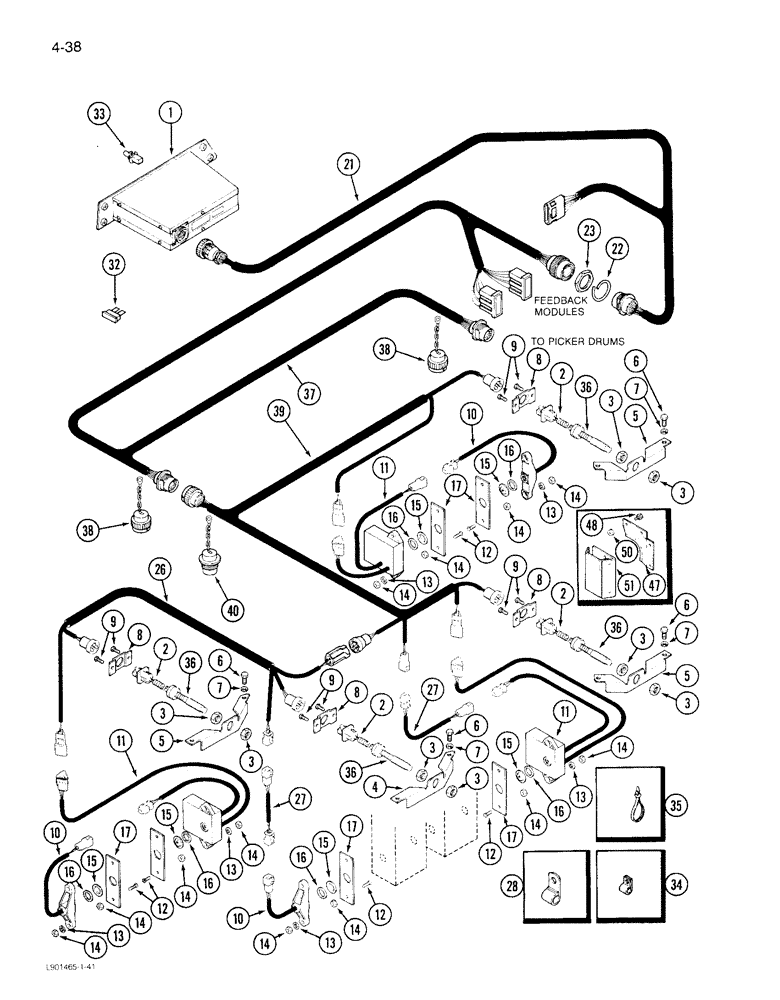

Запчасти Case IH 1844 (4-38) - SYSTEM MONITOR (06) - ELECTRICAL SYSTEMS

1

91779C91

REMAN-ELECT GAUGE

GAUGE - monitor system, remanufactured (North America only)

1шт.

1

1935087C1

CORE

GAUGE CORE - monitor (Use this number when returning monitor core for credit

1шт.

2

1338876C1

SENDER UNIT

TRANSDUCER ASSEMBLY - rtor speed

8шт.

3

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NF

2шт.

4

87180C1

BRACKET

ASSEMBLY - transducer left

4шт.

5

87181C1

BRACKET

ASSEMBLY - transducer right

4шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

16шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

8

91795C1

SUPPORT

BRACKET - transducer connection mounting

8шт.

9

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

SCREW, SELF TAPPING, Hex Wash Hd, #10 x 3/4"

16шт.

10

245872C2

CONTROL

- emitter, choke (Prior to P.I.N. JJC0002560)

6шт.

10

1983619C1

SENSOR

CONTROL - emitter, choke (P.I.N. JJC0002560 and after)

6шт.

11

245873C2

CONTROL

- detector, choke (Prior to P.I.N. JJC0002560)

6шт.

11

1987357C1

SENSOR

CONTROL - detector, choke (P.I.N. JC0002560 and after)

6шт.

12

1338692C1

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1"

BOLT - hex, cover monitor plate

24шт.

13

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

24шт.

14

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

44шт.

15

1339056C1

CAP

- lens (replaces 1339057C1)

4шт.

16

1338700C1

GASKET

- lens cap

12шт.

17

87048C3

LARGE PLATE

PLATE - cover

10шт.

21

245830C2

HARNESS

- monitor (Cab) (Prior to P.I.N. JJC0002560)

1шт.

21

1983537C1

HARNESS

- monitor (Cab) (P.I.N. JJC0002560 and after)

1шт.

22

490691C1

LOCK WASHER,#18 Shell

- lock, 1-3/16 inch (Prior to P.I.N. JJC0002560)

3шт.

22

459330C1

LOCK WASHER

WASHER - lock, 1-11/16 inch (P.I.N. JJC0002560 and after)

3шт.

23

490692C1

LOCK NUT,#18 Shell

- hex, 1-1/2 inch UNEF (Prior to P.I.N. JJC0002560)

3шт.

23

459329C1

NUT

- hex, 1-11/16 inch UNEF (P.I.N. JJC0002560 and after)

3шт.

26

91768C2

HARNESS

- monitor drum outer (Prior to P.I.N. JJC0002560)

2шт.

26

1987358C1

HARNESS

- monitor drum outer (P.I.N. JJC0002560 and after)

2шт.

27

245006C1

HARNESS

- front choke (Prior to P.I.N. JJC0002560)

4шт.

27

1987360C1

HARNESS

- front choke (P.I.N. JJC0002560 and after)

4шт.

28

371036R1

CLIP

- cable retaining, 11/32 inch diameter hole

16шт.

28

362123R1

CLIP

- cable retaining, 15/32 inch diameter hole

38шт.

32

A149796

FUSE

- 3 ampere (Violet)

1шт.

33

28628R1

BULB,C2F, #73, 14V

- monitor, no. 73 24 volt

11шт.

34

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - harness (Chassis)

2шт.

35

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long (Monitor harness)

6шт.

36

87391C1

GROMMET

- transducer cables

4шт.

37

91770C2

HARNESS

- monitor, chassis (Prior to P.I.N. JJC0002560)

1шт.

37

1983538C1

HARNESS

- monitor, chassis (P.I.N. JJC0002560 and after)

1шт.

38

NSS

NOT SOLD SEPARAT

CAP - connector (Order 91770C1 harness)

2шт.

39

91767C2

HARNESS

ASSEMBLY - monitor inner (Prior to P.I.N. JJC0002560)

2шт.

39

1987359C1

HARNESS

ASSEMBLY - monitor inner (P.I.N. JJC0002560 and after)

2шт.

40

NSS

NOT SOLD SEPARAT

PLUG - connector (Order 91767C1 harness)

2шт.

43

1339057C1

LARGE PLATE

CAP - monitor lens (replaces 1339056C1)

16шт.

47

1338088C1

SHIELD

- monitor eye, left

6шт.

47

1338089C1

SHIELD

- monitor eye, right (Shown)

6шт.

48

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

SCREW - slotted truss, 1/4 NC x 1/2 inch

40шт.

50

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

40шт.

51

1339187C1

SHIELD

- monitor sensor

2шт.

370-10412

SCREW,Sl Pan Hd, #4 - 40 x 3/4"

- pan head slotted, no. 4-40 x 3/4 inch

8шт.

492-11004

LOCK WASHER,#4

Washer, Lock, #4

8шт.

225-14104

NUT,#4-40

8шт.
