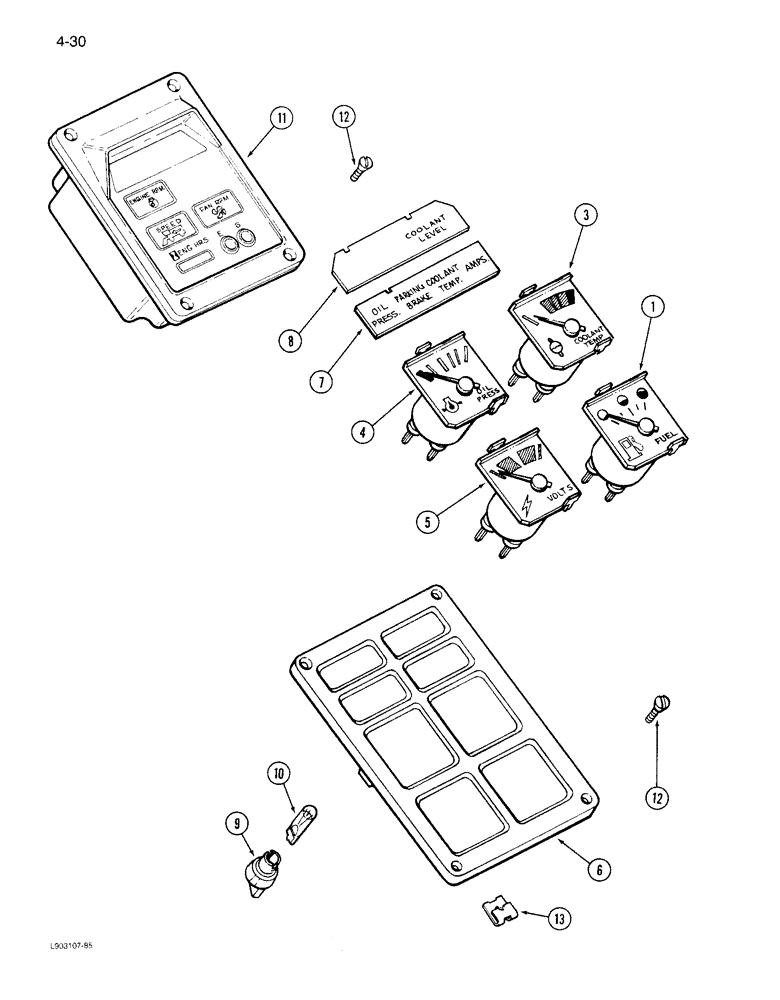

Запчасти Case IH 1844 (4-30) - INSTRUMENT CLUSTER AND TACHOMETER (06) - ELECTRICAL SYSTEMS

1964923C1

GAUGE ASSY.

CLUSTER ASSEMBLY - instrument

1шт.

1

121604C1

ELECTRICAL GAUGE

GAUGE - fuel

1шт.

3

1964922C1

GAUGE ASSY.

GAUGE - temperature

1шт.

4

121606C1

ELECTRICAL GAUGE

GAUGE - oil pressure

1шт.

5

121607C1

METER

VOLTMETER - electrical

1шт.

6

121608C1

GASKET

BEZEL - instrument cluster

1шт.

7

187597C1

LENS

- cluster (Oil pressure, brake, temperature and amperes)

1шт.

8

1979357C1

LENS

- cluster (Coolant level)

1шт.

9

121611C1

SOCKET

- bulb

6шт.

10

20627R1

BULB,C2F, #194, 14V

- cluster (No. 194)

6шт.

11

1983689C2

TACHOMETER

ASSEMBLY - new

1шт.

11

1935116C1

REMAN-ELECT GAUGE

TACHOMETER ASSEMBLY - remanufactured (North Americal Only)

1шт.

11

1935115C1

CORE GAUGE ELECT

RETURN NUMBER - use this number when returning tachometer core for credit

1шт.

REF#11 SHOULD READ 245619C3 8/29/96

1шт.

12

27204R1

SELF-TAP SCREW

- oval, No. 10-16 x 3/4 inch

8шт.

13

445357

SPRING NUT,J, #10-16

- spring, No. 10 (J shaped)

8шт.
