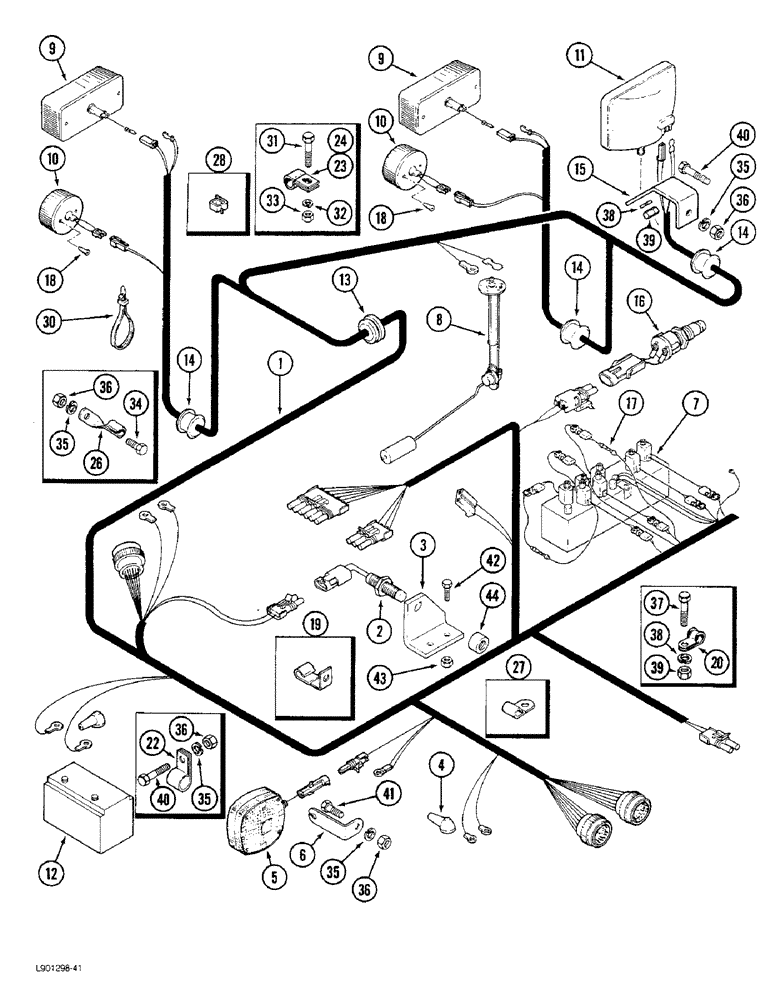

Запчасти Case IH 1844 (4-24) - REAR HARNESS (06) - ELECTRICAL SYSTEMS

1

1983381C1

HARNESS

- rear (Replaces 1983263C1)

1шт.

On item1, 1983381c1 the connector to the engine harness has a hexagonal configuration, the part it replaces no. 1983263c1 has a round, to the engine connector configuration. Both parts are available. mck 12-5-95

1шт.

2

245193C2

SENSOR

TRANSMITTER - transducer (MPH and fan RPM)

2шт.

3

1285232C1

SUPPORT

BRACKET - transmitter (If equipped)

1шт.

4

399470R1

BOOT

- terminal

3шт.

5

REF

INSTRUCTION

LIGHT - warning (See page 4-57)

2шт.

6

1283289C1

ANGLE

BRACKET - light

2шт.

7

REF

INSTRUCTION

VALVE ASSEMBLY - manifold (See page 8-31)

1шт.

8

REF

INSTRUCTION

SENDER - fuel level (See page 3-21)

1шт.

9

REF

INSTRUCTION

LIGHT - warning (See page 4-57)

2шт.

10

REF

INSTRUCTION

LIGHT - tail (See page 4-59)

2шт.

11

245897C91

LAMP, WORK

LIGHT - flood

1шт.

12

REF

INSTRUCTION

BATTERY - (See page 4-41)

1шт.

13

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- harness

1шт.

14

1321767C1

GROMMET

- harness

3шт.

15

561915R1

BRACKET

- light

1шт.

16

1983297C1

SWITCH

- basket door open limit

1шт.

17

548239R2

RECTIFIER

DIODE - harness

1шт.

18

24396R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - tapping, no. 10 x 3/4 inch

4шт.

19

370383R1

CLIP

- harness (Warning light cables)

4шт.

20

299608C1

CLAMP,1 1/4", Insul, 1/2" Bolt

CLIP - harness (See note A)

2шт.

20

299403C1

CLAMP

- coated closed, 3/8 inch diameter (Frame cross member)

1шт.

22

R14668

CLAMP

- harness retaining (Frame right side)

1шт.

22

98959R1

CLAMP

CLIP - harness (Behind fuel tank)

2шт.

23

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- medium closed, 3/4 inch diameter (See note B)

2шт.

24

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - harness (See note C)

1шт.

26

363660R1

CLIP

- harness (Air cleaner bracket)

1шт.

27

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - harness (See note D)

3шт.

27

366460R1

CABLE CLIP

CLIP - harness (Fan speed transducer cables)

2шт.

28

862576R1

CLAMP

CLIP - harness (Tall light cables)

4шт.

30

702093C1

CABLE TIE

STRAP - tie (Frame, right side)

1шт.

31

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

32

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

33

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

34

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

35

492-11038

LOCK WASHER,3/8"

4шт.

36

425-106

NUT,3/8"-16, Cl 5

4шт.

37

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

38

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

39

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

40

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

41

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

42

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

43

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

44

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NF

2шт.
