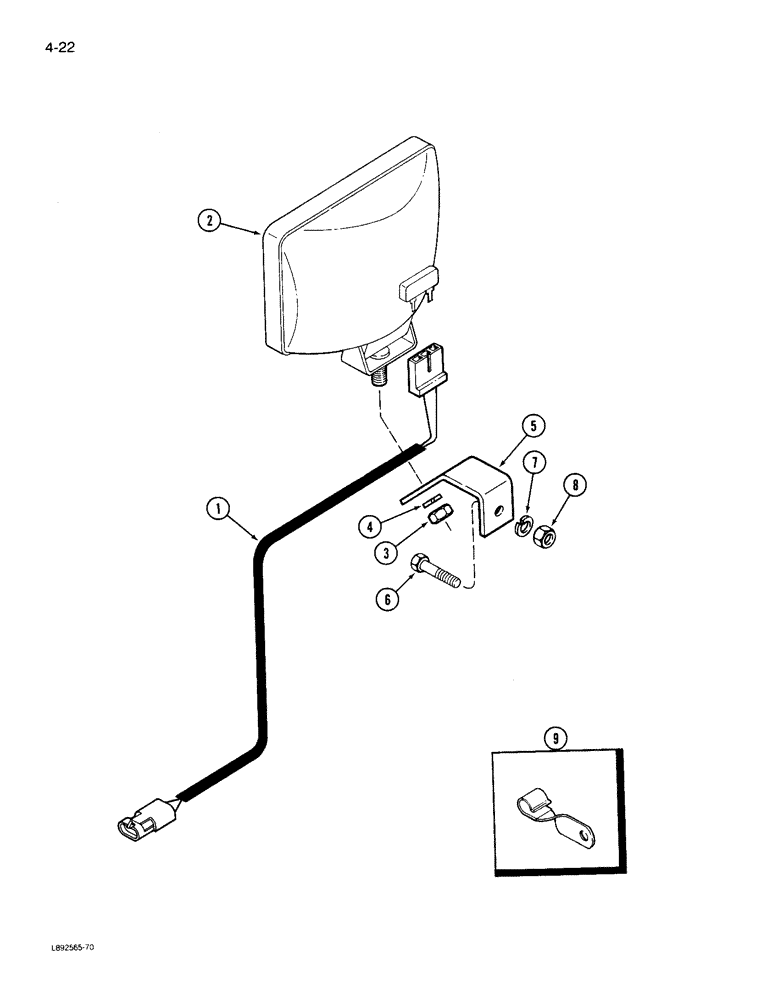

Запчасти Case IH 1844 (4-22) - CONVEYOR LAMP AND HARNESS (06) - ELECTRICAL SYSTEMS

1

245973C2

HARNESS

ASSEMBLY - conveyor

1шт.

2

245897C91

LAMP, WORK

LAMP ASSEMBLY - conveyor (Halogen flood)

1шт.

3

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

5

561915R1

BRACKET

- lamp

1шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

7

492-11038

LOCK WASHER,3/8"

1шт.

8

425-106

NUT,3/8"-16, Cl 5

1шт.

9

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - conveyor light harness

3шт.
