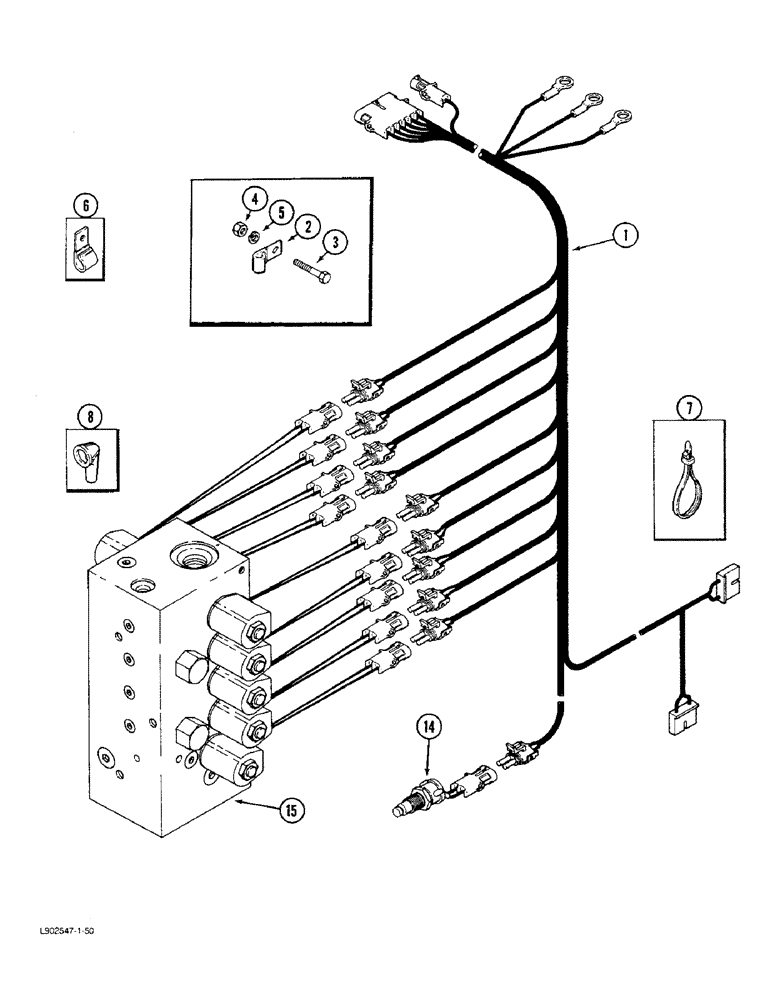

Запчасти Case IH 1844 (4-18) - BASKET HARNESS (06) - ELECTRICAL SYSTEMS

1

1983264C2

HARNESS

ASSEMBLY - basket

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - harness

8шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

4

425-106

NUT,3/8"-16, Cl 5

3шт.

5

492-11038

LOCK WASHER,3/8"

3шт.

6

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP - retaining

3шт.

7

289862C1

CABLE TIE,3/16" x 7"

STRAP - tie

1шт.

8

399470R1

BOOT

- solenoid

1шт.

14

1983297C1

SWITCH

- unloading limit

1шт.

15

REF

INSTRUCTION

VALVE ASSEMBLY - basket control (See page 8-65)

1шт.
