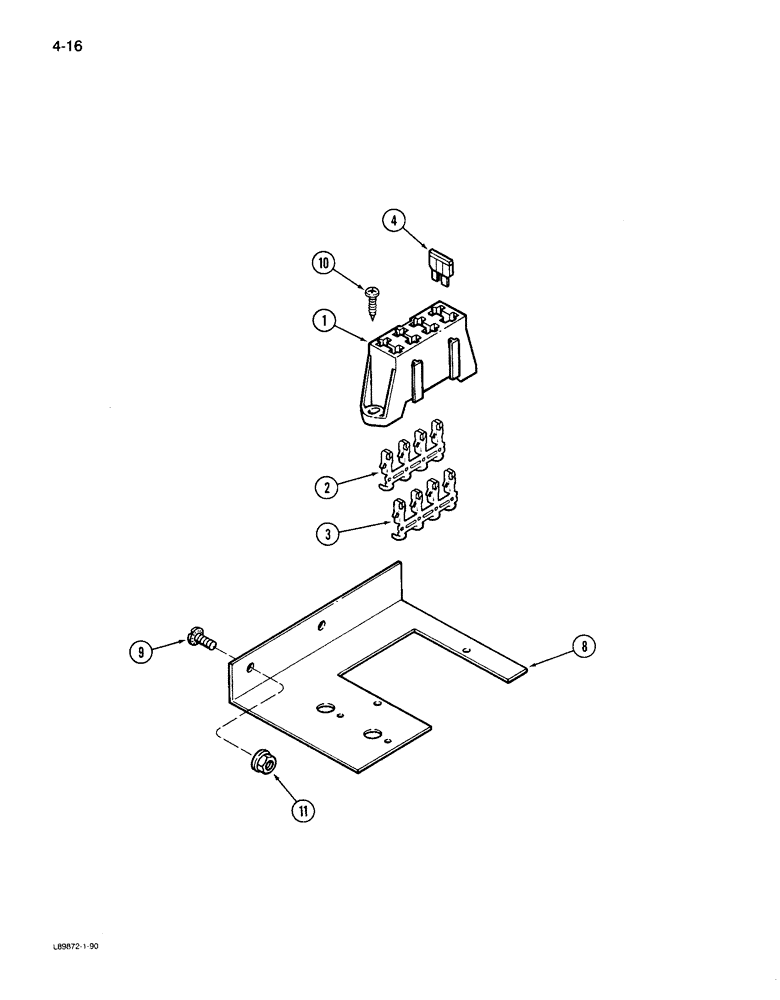

Запчасти Case IH 1844 (4-16) - FUSE AND FUSE BLOCK (06) - ELECTRICAL SYSTEMS

1

245435C1

FUSE HOLDER

BLOCK ASSEMBLY - fuse (See harness 91812C6, page 4-13)

3шт.

2

506504C1

TERMINAL CONNECTOR,Female, 1 - 2 mm2

TERMINAL - fuse block (Type L10)

1шт.

3

506498C1

TERMINAL CONNECTOR

TERMINAL - fuse block (Type L11)

1шт.

4

A149801

FUSE,Lt Blue, 15 Amp

- 15 ampere (Light blue)

3шт.

4

A149800

FUSE,10 Amp

- 10 ampere (Red)

3шт.

4

A149804

FUSE

- 30 ampere (Light green)

1шт.

4

A149798

FUSE

- 5 ampere (Tan)

3шт.

4

A149796

FUSE

- 3 ampere (Violet)

1шт.

4

A149799

FUSE

- 7.5 ampere (Brown)

1шт.

8

1280162C3

SUPPORT

- fuse block

1шт.

9

1330207C1

SCREW,Sl Serr Truss Hd, 1/4" - 20 x 1/2"

- slotted, 1/4 NC x 1/2 inch

2шт.

10

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - tap, 1/4 NC x 1/2 inch

2шт.

11

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex, 1/4 inch NC

2шт.
