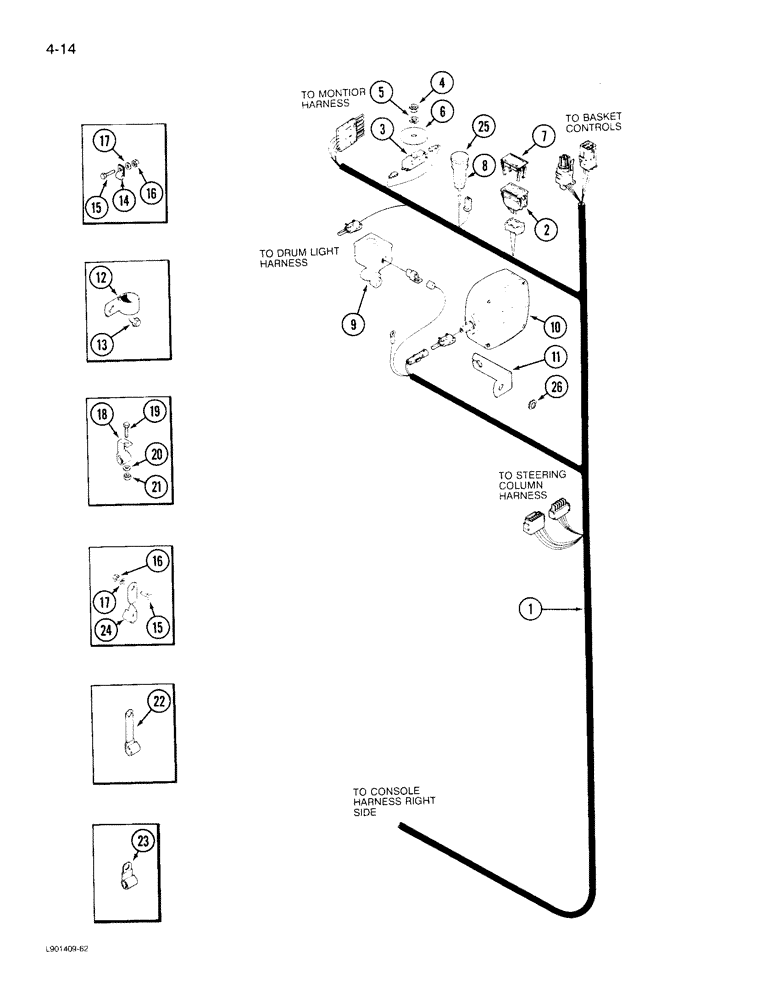

Запчасти Case IH 1844 (4-14) - CONSOLE HARNESS LEFT SIDE (06) - ELECTRICAL SYSTEMS

1

1983631C1

HARNESS

ASSEMBLY - console

1шт.

2

245012C1

SWITCH

- basket lights

1шт.

3

1983341C1

SWITCH

ASSEMBLY - parking brake warning light

1шт.

4

68107H

LOCK NUT

- hex, 3/8-32 inch

1шт.

5

469668R1

WASHER

- flat, 13/32 x 47/64 x 3/64 inch

1шт.

6

166817C1

WASHER

- parking brake warning

1шт.

7

245334C1

PLUG

COVER - rocker switch opening

1шт.

8

245576C1

LIGHTER, CIGARETTE

LIGHTER ASSEMBLY - cigarette (Includes Ref. 25)

1шт.

9

REF

INSTRUCTION

VALVE ASSEMBLY - water

1шт.

10

REF

INSTRUCTION

LIGHT - warning (See Page 4-57)

1шт.

11

1283289C1

ANGLE

BRACKET - warning light mounting

1шт.

12

299608C1

CLAMP,1 1/4", Insul, 1/2" Bolt

CLIP - console harness (on rear wall)

2шт.

13

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - tapping, 1/4 x 1/2 inch

2шт.

14

A62209

CLAMP,5/16", Insul, 1/4" Bolt

- harness (on front wall)

1шт.

15

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

16

120376

NUT,5/16"-18, G5

2шт.

17

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

18

370383R1

CLIP

- harness (Under platform)

4шт.

19

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

20

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21

120377

NUT,3/8" - 16, Gr 5

1шт.

22

362126R1

CLIP

- harness (Under platform front edge)

2шт.

23

358986R1

CABLE CLIP

CLIP - left console harness

3шт.

24

363660R1

CLIP

- harness (Between instrument panel and console extension)

1шт.

25

378781R1

LIGHTER, CIGARETTE

ELEMENT - lighter

1шт.

26

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal-external tooth lock, 3/8 inch

2шт.
