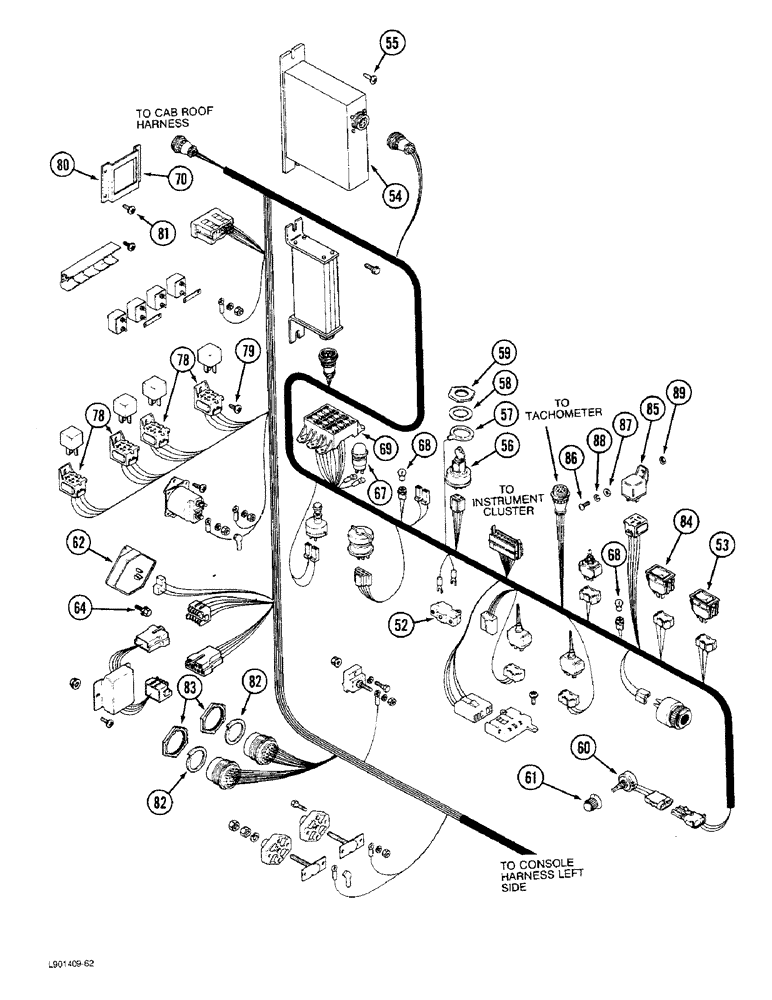

Запчасти Case IH 1844 (4-12) - CONSOLE HARNESS RIGHT SIDE (06) - ELECTRICAL SYSTEMS

52

245845C1

SWITCH

- throttle position

1шт.

53

245855C1

SWITCH

- compactor

1шт.

54

245502C2

CASE

CONTROL - compactor

1шт.

55

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - tap, 1/4 x 1/2 inch

2шт.

56

1252476C1

SWITCH

- ignition

1шт.

57

131313C1

KEY, IGNITION

KEY - switch

1шт.

58

375431R1

LOCK WASHER

- flat, 19/32 x 1 inch x 11 gauge

1шт.

59

365502R1

NUT

- switch mounting

1шт.

60

245385C1

POTENTIOMETER,1000 Ohm

- rate control

1шт.

61

1345235C1

BUTTON

KNOB - control (Replaces 1301036C1)

1шт.

62

245835C1

SUPPRESSOR

- central load dump

1шт.

64

593749R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex flange, No. 10-24 x 1/2 inch

2шт.

67

453453C1

SWITCH

- ether

1шт.

68

200557H1

BULB,C2V, #1815, 14V

- lamp, No. 1815

6шт.

69

REF

INSTRUCTION

BLOCK - fuse (See page 4-17)

1шт.

70

225056C1

CONNECTOR, ELEC

MODULE - feedback (Order harness 91812C6)

1шт.

78

NSS

NOT SOLD SEPARAT

SOCKET - relay (Order harness 91812C6)

4шт.

79

167084

SEAL PROTECTION

- tapping, No. 10 x 1/2 inch

2шт.

80

NSS

NOT SOLD SEPARAT

BRACKET - feedback module (Order harness 91812C6)

1шт.

81

593749R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - tapping, No. 10 x 1/2 inch

2шт.

82

459330C1

LOCK WASHER

WASHER - lock, 1-11/16 inch

2шт.

83

459329C1

NUT

- hex, 1-11/16 inch UNEF

2шт.

84

92148C1

SWITCH

- fan

1шт.

85

146461C1

RELAY

- electrical

1шт.

86

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan head Phillips, No. 10 NC x 3/4 inch

1шт.

87

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

1шт.

88

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

89

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 NC

1шт.
